1989 Stern Drive Motors Yamaha Marine V6_4.3_ENG - 1989 CRANK - PISTON OEM Parts | Assembly Diagram Choose a make, category, year, model, and assembly...

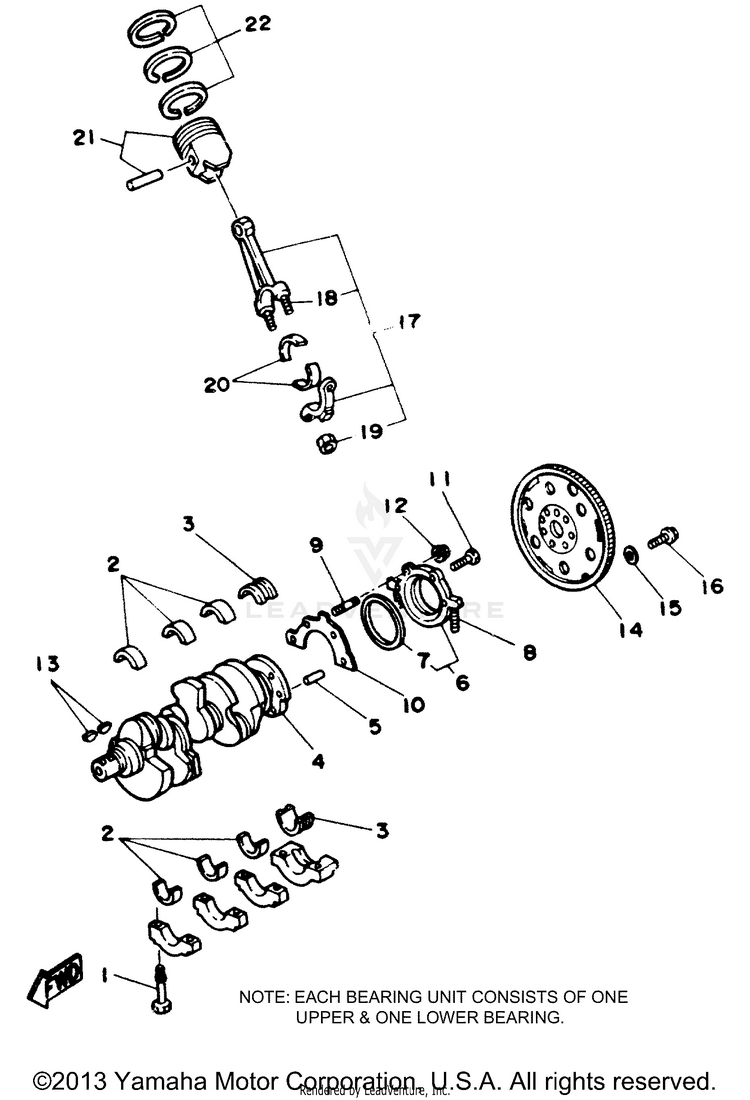

CRANK - PISTON

Use scroll wheel, or pinch and drag to and .

1
MPN/SKU: YSG-39324-80-G0
BOLT, CRANKSHAFT BEARING CAP
$3.65
Stock: TBD
Recommended Quantity: 8
Recommended Quantity: 8

This part has 8 locations on the diagram. It is the recommended quantity, but not a requirement.

          2
          MPN/SKU: YSG-12329-75-7G
          BEARING UNIT-CRANKSHAFT MAIN
          $34.99
          Stock: TBD
          Recommended Quantity: 3
          Recommended Quantity: 3

          This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                  MPN/SKU: YSG-12329-42-9G
                  BEARING UNIT-CRANKSHAFT MAIN
                  $77.99
                  Stock: TBD
                  Recommended Quantity: 3
                  Recommended Quantity: 3

                  This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                          MPN/SKU: YSG-12329-42-8G
                          BEARING UNIT-CRANK MAIN, REAR
                          $35.99
                          Stock: TBD
                          Recommended Quantity: 3
                          Recommended Quantity: 3

                          This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                                  MPN/SKU: YSG-10120-99-0G
                                  BEARING UNIT-CRANKSHAFT MAIN
                                  $54.99
                                  Stock: TBD
                                  Recommended Quantity: 3
                                  Recommended Quantity: 3

                                  This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                                          3
                                          MPN/SKU: YSG-12329-79-1G
                                          BEARING UNIT-CRANK MAIN, REAR
                                          $42.99
                                          Stock: TBD
                                          Recommended Quantity: 1
                                          Recommended Quantity: 1

                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                  MPN/SKU: YSG-12379-79-0G
                                                  BEARING UNIT-CRANK MAIN, REAR
                                                  $0.00
                                                  Stock: TBD
                                                  Recommended Quantity: 1
                                                  Recommended Quantity: 1

                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                          MPN/SKU: YSG-12329-79-4G
                                                          BEARING UNIT-CRANK MAIN, REAR
                                                          $102.99
                                                          Stock: TBD
                                                          Recommended Quantity: 1
                                                          Recommended Quantity: 1

                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                  MPN/SKU: YSG-12329-79-3G
                                                                  BEARING UNIT-CRANK MAIN, REAR
                                                                  $41.99
                                                                  Stock: TBD
                                                                  Recommended Quantity: 1
                                                                  Recommended Quantity: 1

                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                          4
                                                                          MPN/SKU: YSG-10224-87-7G
                                                                          CRANK SHAFT 262
                                                                          $877.99
                                                                          Stock: TBD
                                                                          Recommended Quantity: 1
                                                                          Recommended Quantity: 1

                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  5
                                                                                  MPN/SKU: YSG-37016-79-G0
                                                                                  PIN
                                                                                  $2.90
                                                                                  Stock: TBD
                                                                                  Recommended Quantity: 1
                                                                                  Recommended Quantity: 1

                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          6
                                                                                          MPN/SKU: YSG-14088-55-6G
                                                                                          RETAINER ASSY
                                                                                          $49.99
                                                                                          Stock: TBD
                                                                                          Recommended Quantity: 1
                                                                                          Recommended Quantity: 1

                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  7
                                                                                                  MPN/SKU: YSG-10088-15-8G
                                                                                                  SEAL ASM
                                                                                                  $85.99
                                                                                                  Stock: TBD
                                                                                                  Recommended Quantity: 1
                                                                                                  Recommended Quantity: 1

                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          8
                                                                                                          MPN/SKU: YSG-14080-36-2G
                                                                                                          STUD
                                                                                                          $3.10
                                                                                                          Stock: TBD
                                                                                                          Recommended Quantity: 2
                                                                                                          Recommended Quantity: 2

                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  9
                                                                                                                  MPN/SKU: YSG-14101-05-8G
                                                                                                                  STUD
                                                                                                                  $4.20
                                                                                                                  Stock: TBD
                                                                                                                  Recommended Quantity: 1
                                                                                                                  Recommended Quantity: 1

                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          10
                                                                                                                          MPN/SKU: YSG-12555-77-1G
                                                                                                                          GASKET
                                                                                                                          $12.99
                                                                                                                          Stock: TBD
                                                                                                                          Recommended Quantity: 1
                                                                                                                          Recommended Quantity: 1

                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  11
                                                                                                                                  MPN/SKU: YSG-14088-56-2G
                                                                                                                                  BOLT
                                                                                                                                  $2.95
                                                                                                                                  Stock: TBD
                                                                                                                                  Recommended Quantity: 1
                                                                                                                                  Recommended Quantity: 1

                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          12
                                                                                                                                          MPN/SKU: YSG-94399-15-G0
                                                                                                                                          NUT
                                                                                                                                          $2.15
                                                                                                                                          Stock: TBD
                                                                                                                                          Recommended Quantity: 1
                                                                                                                                          Recommended Quantity: 1

                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  13
                                                                                                                                                  MPN/SKU: YSG-10675-1G-00
                                                                                                                                                  KEY
                                                                                                                                                  $2.60
                                                                                                                                                  Stock: TBD
                                                                                                                                                  Recommended Quantity: 2
                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          14
                                                                                                                                                          MPN/SKU: YSG-14096-02-1G
                                                                                                                                                          FLYWHEEL ASSY
                                                                                                                                                          $364.99
                                                                                                                                                          Stock: TBD
                                                                                                                                                          Recommended Quantity: 1
                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                  15
                                                                                                                                                                  MPN/SKU: YSG-49234-6G-00
                                                                                                                                                                  WASHER
                                                                                                                                                                  $2.40
                                                                                                                                                                  Stock: TBD
                                                                                                                                                                  Recommended Quantity: 1
                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                          16
                                                                                                                                                                          MPN/SKU: YSG-83975-6G-00
                                                                                                                                                                          BOLT, FLYWHEEL
                                                                                                                                                                          $2.85
                                                                                                                                                                          Stock: TBD
                                                                                                                                                                          Recommended Quantity: 6
                                                                                                                                                                          Recommended Quantity: 6

                                                                                                                                                                          This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                  17
                                                                                                                                                                                  MPN/SKU: YSG-14077-94-4G
                                                                                                                                                                                  CON-ROD ASSY
                                                                                                                                                                                  $119.99
                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                  Recommended Quantity: 6
                                                                                                                                                                                  Recommended Quantity: 6

                                                                                                                                                                                  This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                          18
                                                                                                                                                                                          MPN/SKU: YSG-14077-94-1G
                                                                                                                                                                                          BOLT
                                                                                                                                                                                          $4.00
                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                          Recommended Quantity: 2
                                                                                                                                                                                          Recommended Quantity: 2

                                                                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                  19
                                                                                                                                                                                                  MPN/SKU: YSG-22585-4G-00
                                                                                                                                                                                                  NUT, CONNECTING ROD
                                                                                                                                                                                                  $3.00
                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                  Recommended Quantity: 2
                                                                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                          20
                                                                                                                                                                                                          MPN/SKU: YSG-88893-89-7G
                                                                                                                                                                                                          BEARING
                                                                                                                                                                                                          $84.99
                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                          Recommended Quantity: 2
                                                                                                                                                                                                          Recommended Quantity: 2

                                                                                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                  MPN/SKU: YSG-18012-48-2G
                                                                                                                                                                                                                  BEARING UNIT-CON ROD (0.014MM)
                                                                                                                                                                                                                  $21.99
                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                  Recommended Quantity: 2
                                                                                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                          21
                                                                                                                                                                                                                          MPN/SKU: YSG-12514-10-1G
                                                                                                                                                                                                                          PISTON KIT
                                                                                                                                                                                                                          $306.99
                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                          Recommended Quantity: 6
                                                                                                                                                                                                                          Recommended Quantity: 6

                                                                                                                                                                                                                          This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                  MPN/SKU: YSG-12509-28-4G
                                                                                                                                                                                                                                  PISTON
                                                                                                                                                                                                                                  $117.99
                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                  Recommended Quantity: 6
                                                                                                                                                                                                                                  Recommended Quantity: 6

                                                                                                                                                                                                                                  This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                          22
                                                                                                                                                                                                                                          MPN/SKU: YSG-88894-21-9G
                                                                                                                                                                                                                                          RING PKG
                                                                                                                                                                                                                                          $158.99
                                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                                          Recommended Quantity: 6
                                                                                                                                                                                                                                          Recommended Quantity: 6

                                                                                                                                                                                                                                          This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                  MPN/SKU: YSG-14089-02-6G
                                                                                                                                                                                                                                                  PISTON RING
                                                                                                                                                                                                                                                  $46.99
                                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                                  Recommended Quantity: 6
                                                                                                                                                                                                                                                  Recommended Quantity: 6

                                                                                                                                                                                                                                                  This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                          No results with applied page filter:

                                                                                                                                                                                                                                                          All Assemblies

                                                                                                                                                                                                                                                          For the current model: V6_4.3_ENG - 1989

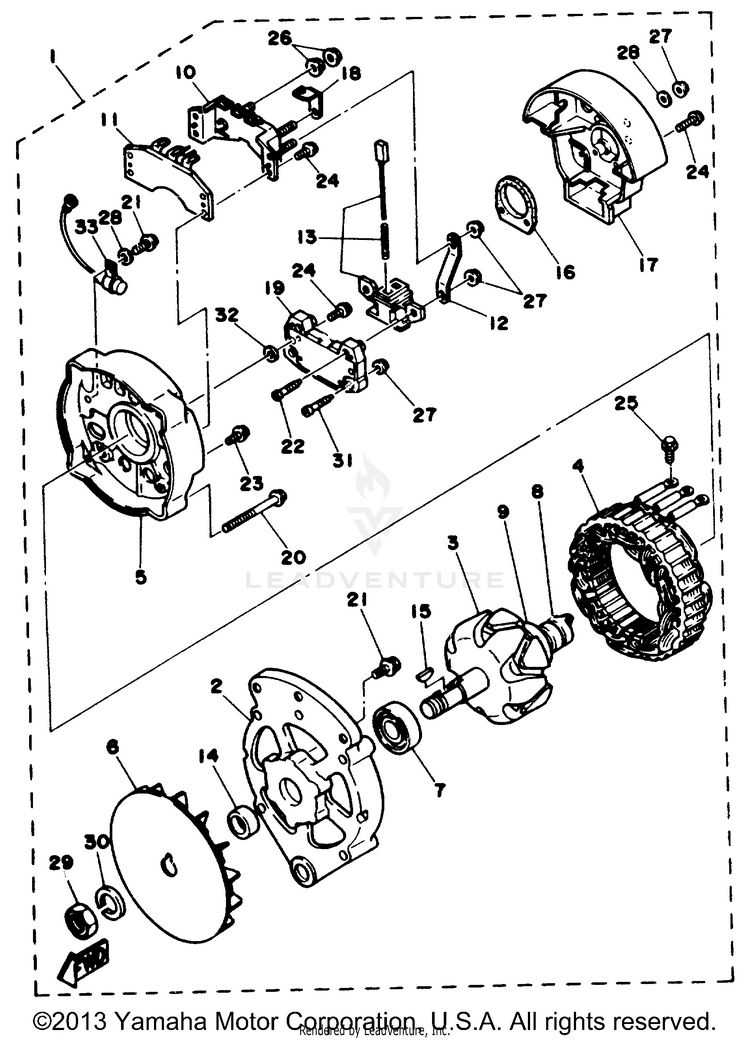

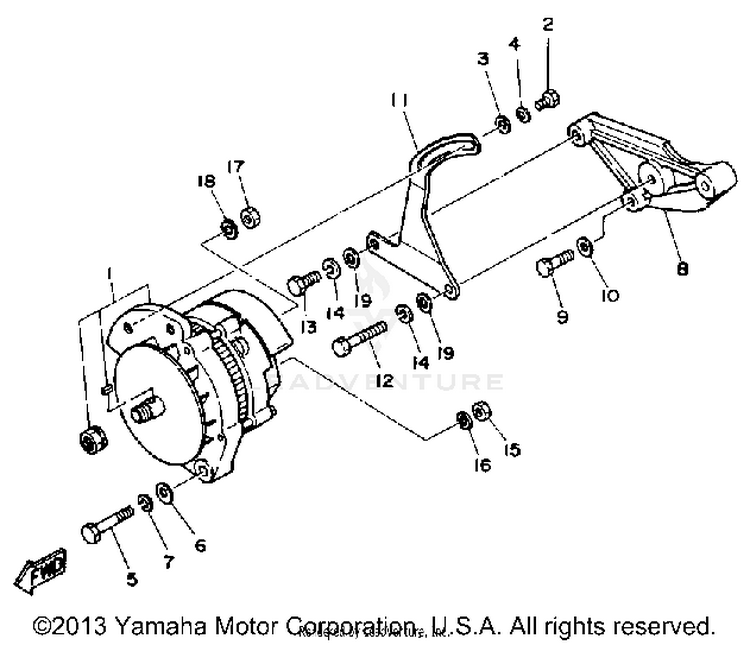

                                                                                                                                                                                                                                                          ALTERNATOR
                                                                                                                                                                                                                                                          ALTERNATOR ASSY
                                                                                                                                                                                                                                                          BELTS - PULLEYS

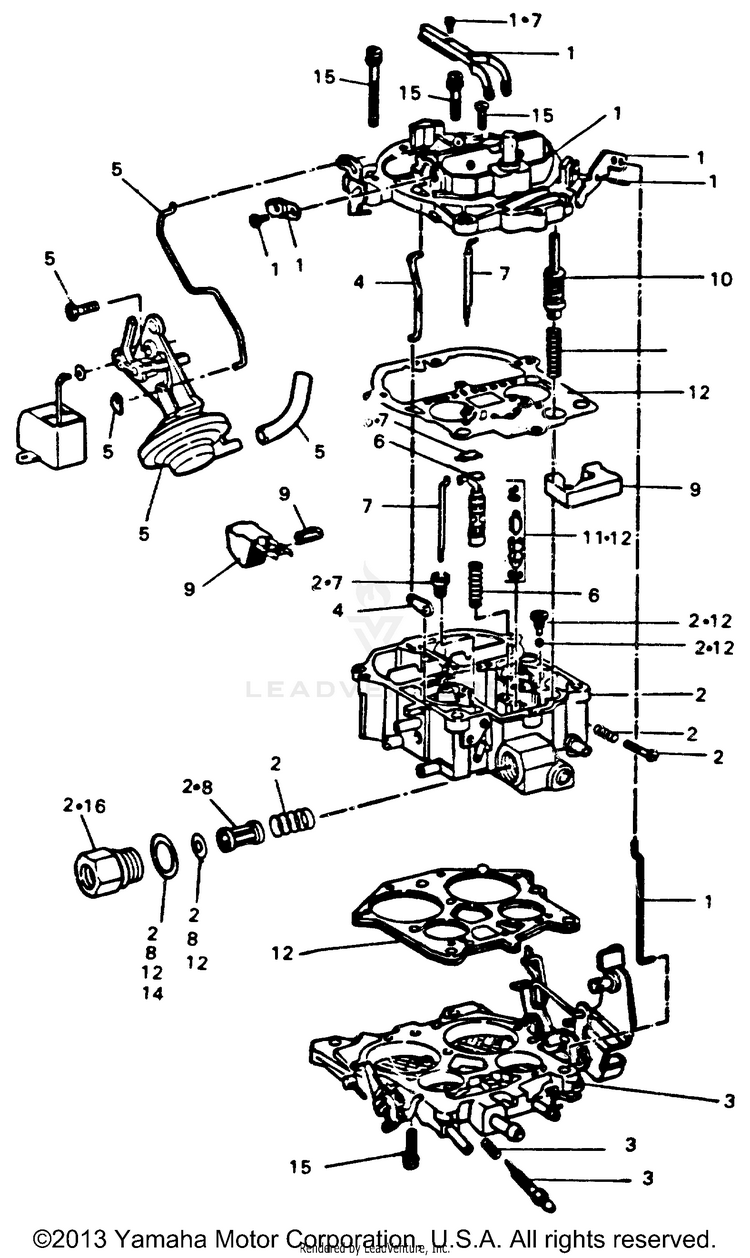

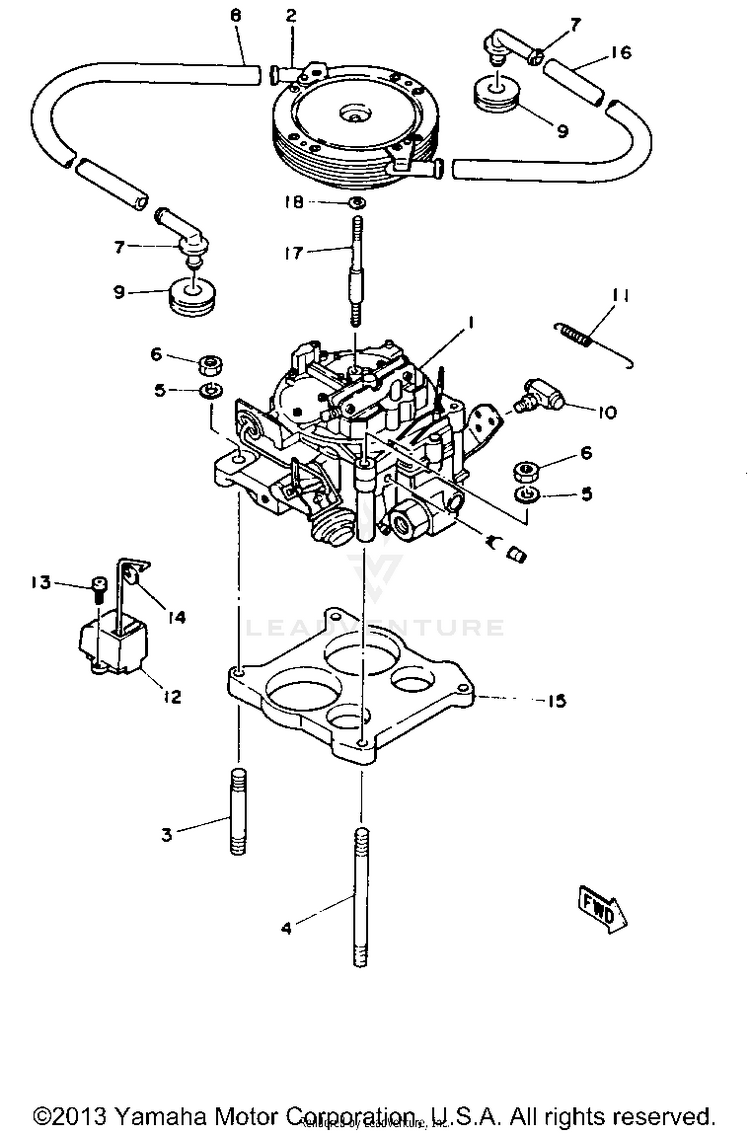

                                                                                                                                                                                                                                                          CARBURETOR
                                                                                                                                                                                                                                                          CARBURETOR KIT

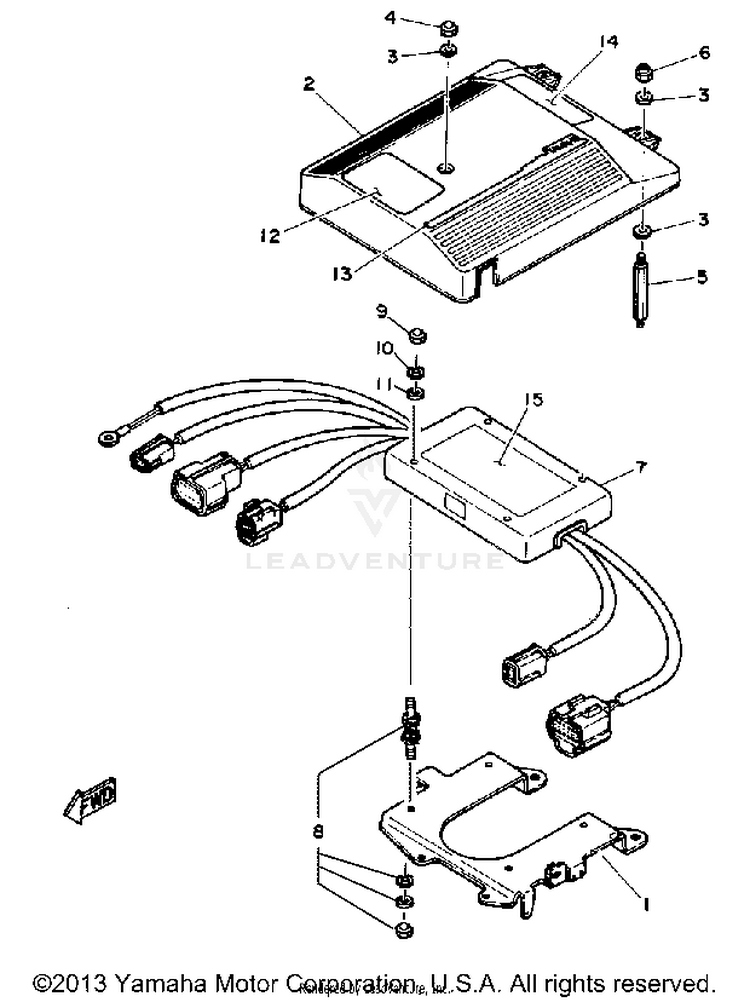

                                                                                                                                                                                                                                                          COVER-COMPUTER
                                                                                                                                                                                                                                                          CRANK - PISTON

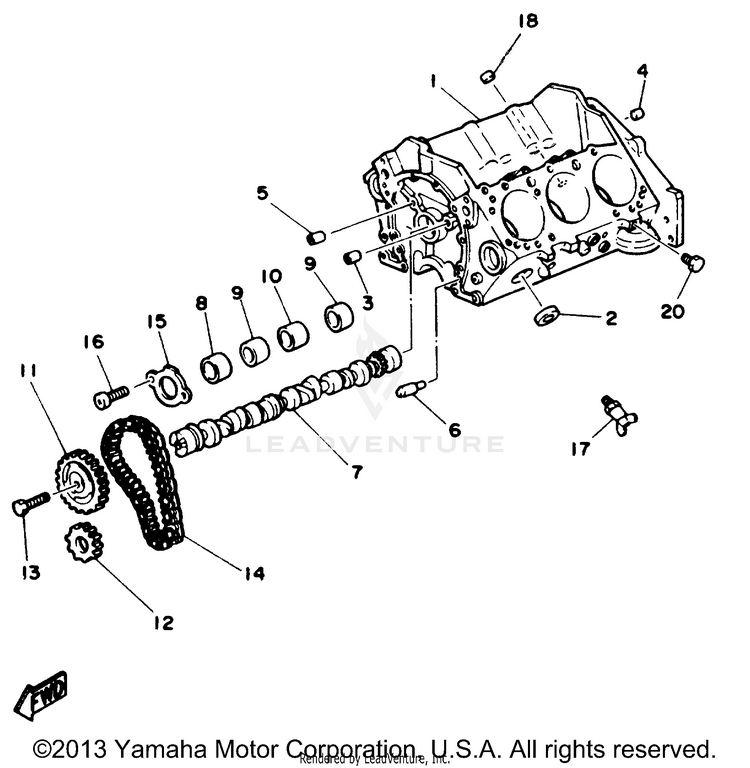

                                                                                                                                                                                                                                                          CYLINDER - CAMSHAFT

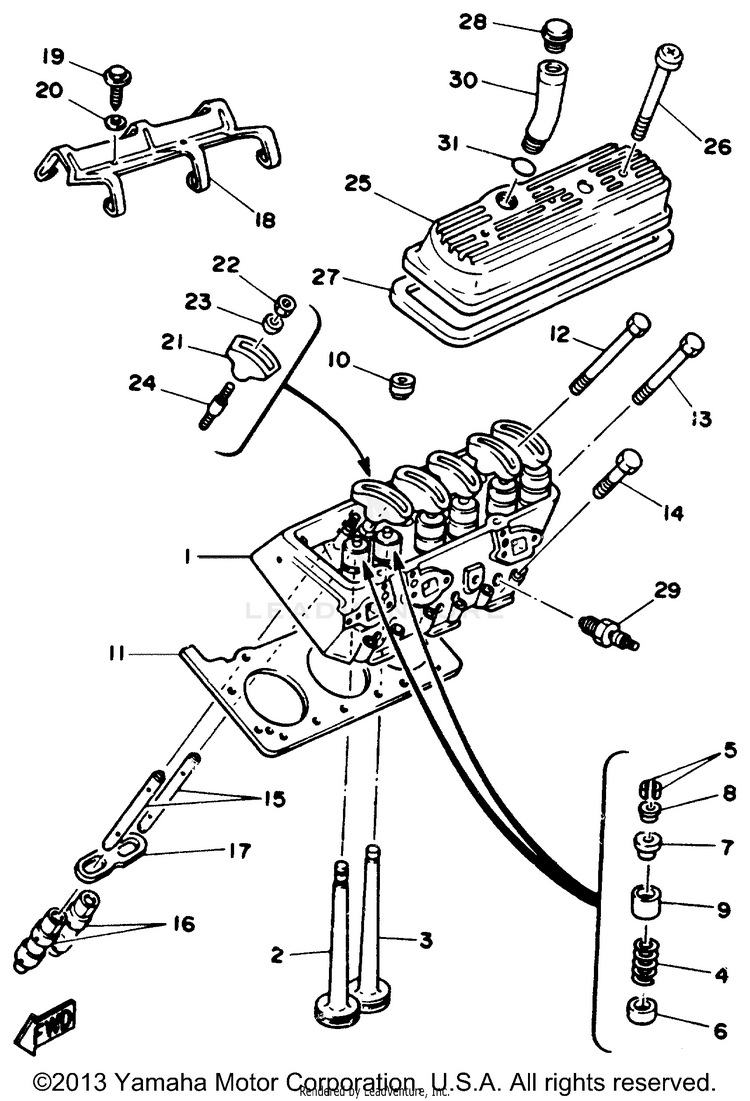

                                                                                                                                                                                                                                                          CYLINDER HEAD - VALVE
                                                                                                                                                                                                                                                          ELECTRIC PARTS 1
                                                                                                                                                                                                                                                          ELECTRIC PARTS 2
                                                                                                                                                                                                                                                          ELECTRIC PARTS 3

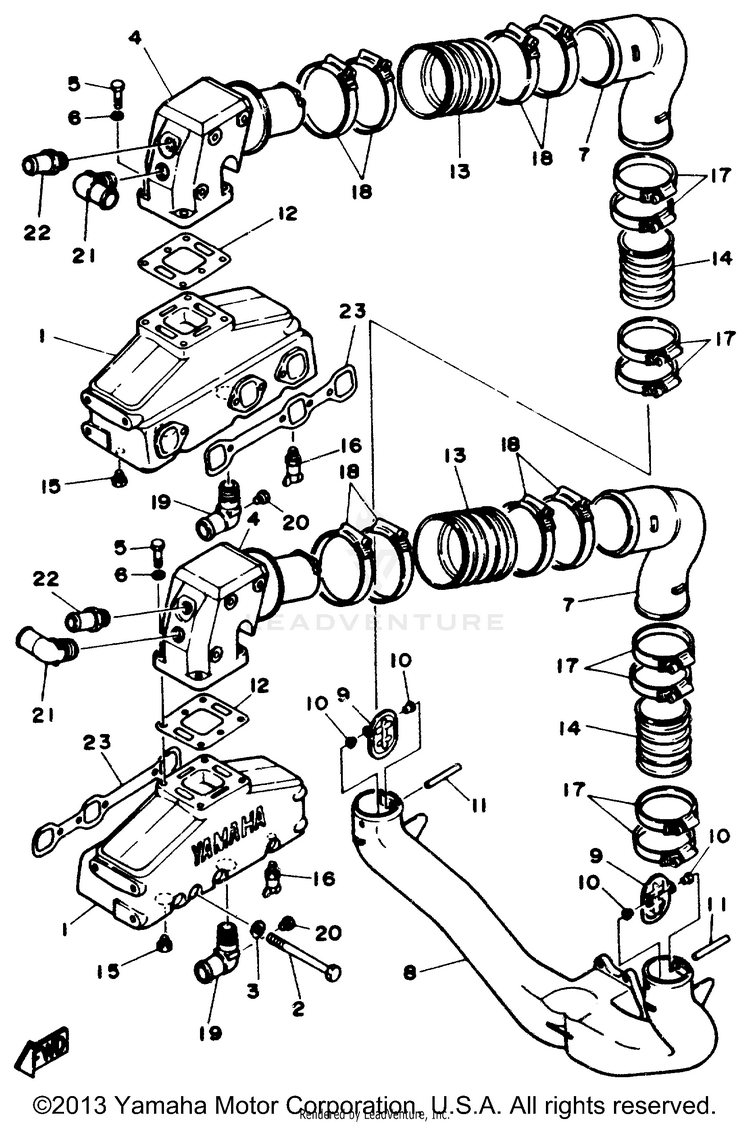

                                                                                                                                                                                                                                                          EXHAUST SYSTEM

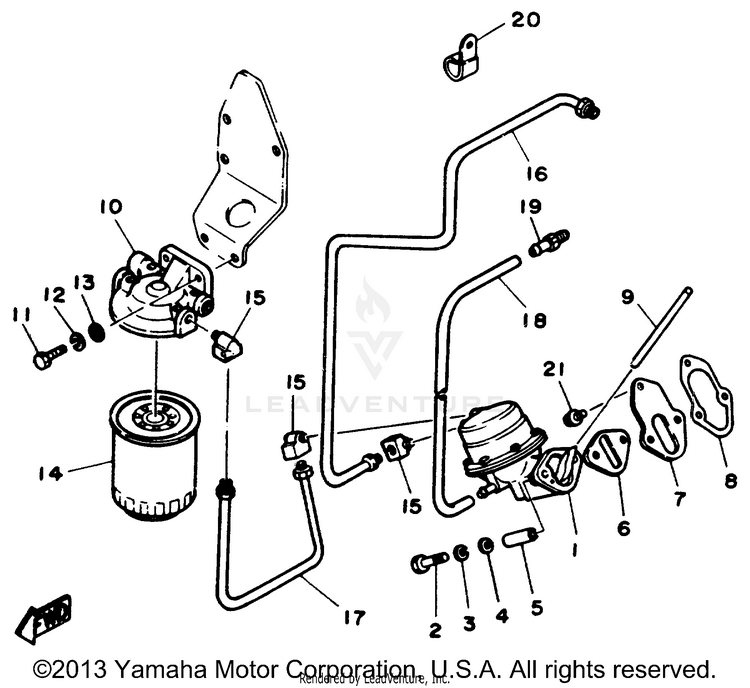

                                                                                                                                                                                                                                                          FUEL PUMP - FUEL FILTER
                                                                                                                                                                                                                                                          IGNITION INTERRUPTION UNIT
                                                                                                                                                                                                                                                          INTAKE MANIFOLD - FRONT COVER
                                                                                                                                                                                                                                                          MOUNTING - FLYWHEEL HOUSING

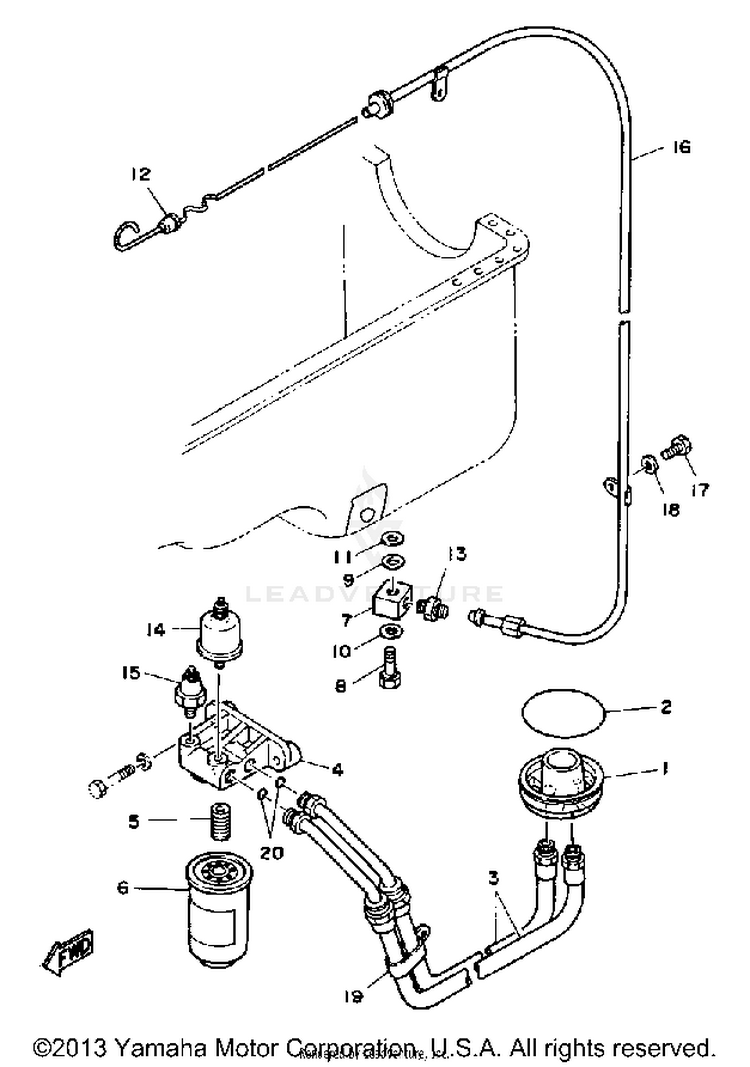

                                                                                                                                                                                                                                                          OIL FILTER - OIL GUAGE
                                                                                                                                                                                                                                                          OIL PAN - OIL PUMP
                                                                                                                                                                                                                                                          POWER STEERING PUMP - OIL COOLER
                                                                                                                                                                                                                                                          RAW WATER PUMP ASSEMBLY

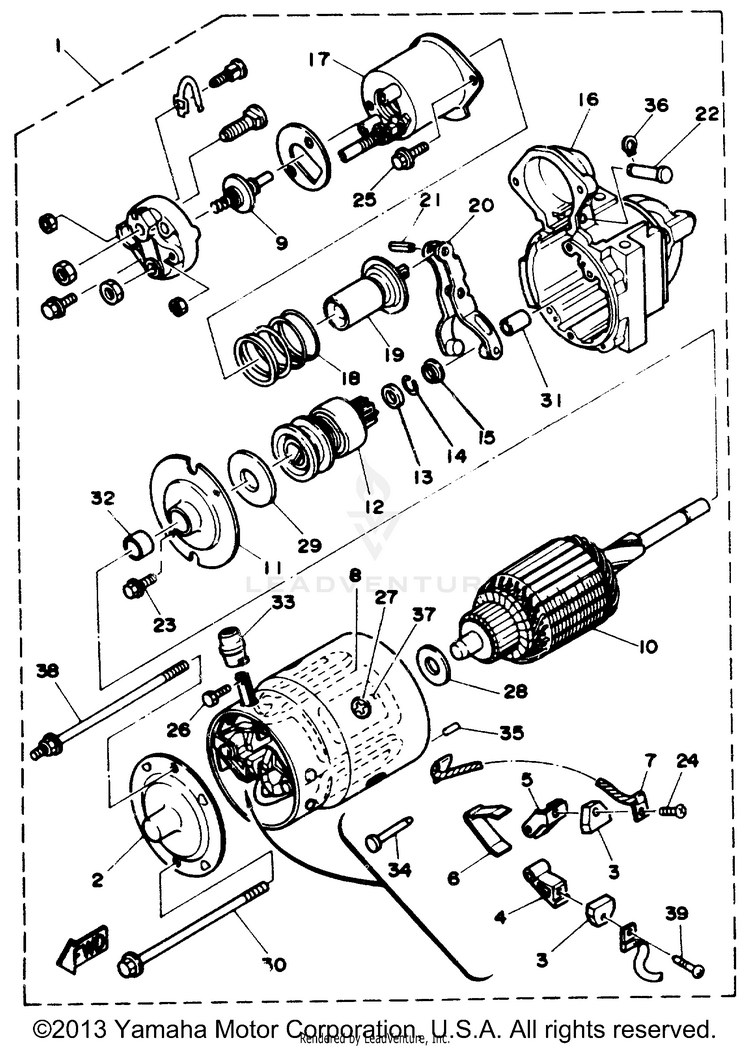

                                                                                                                                                                                                                                                          STARTING MOTOR
                                                                                                                                                                                                                                                          STARTING_MOTOR_ ASSEMBLY

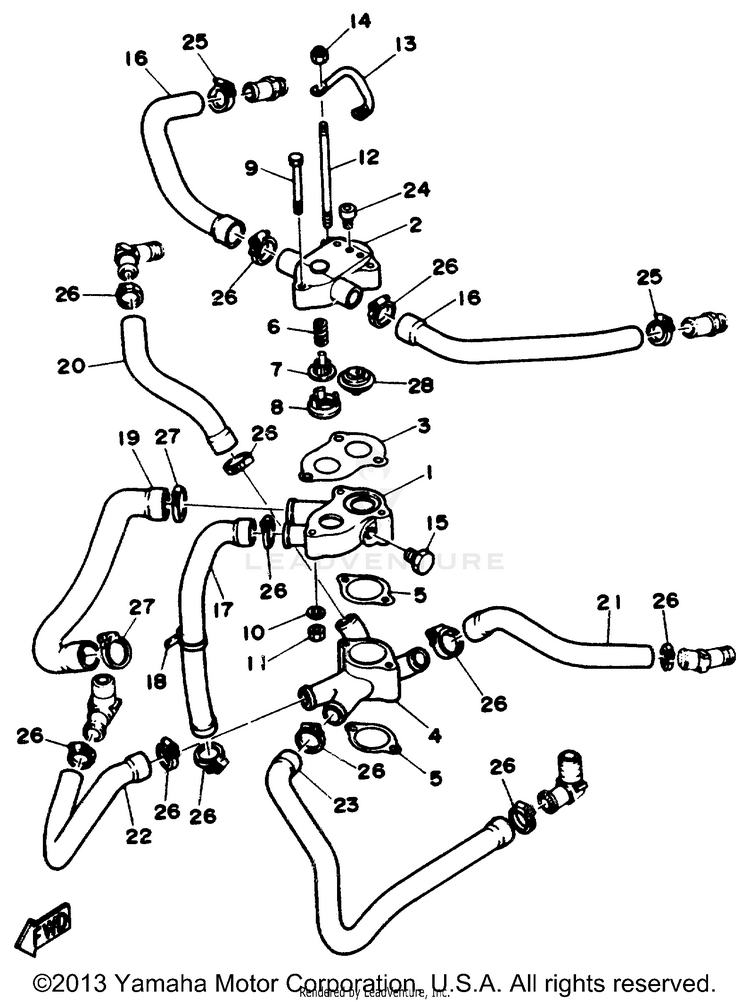

                                                                                                                                                                                                                                                          THERMOSTAT HOUSING

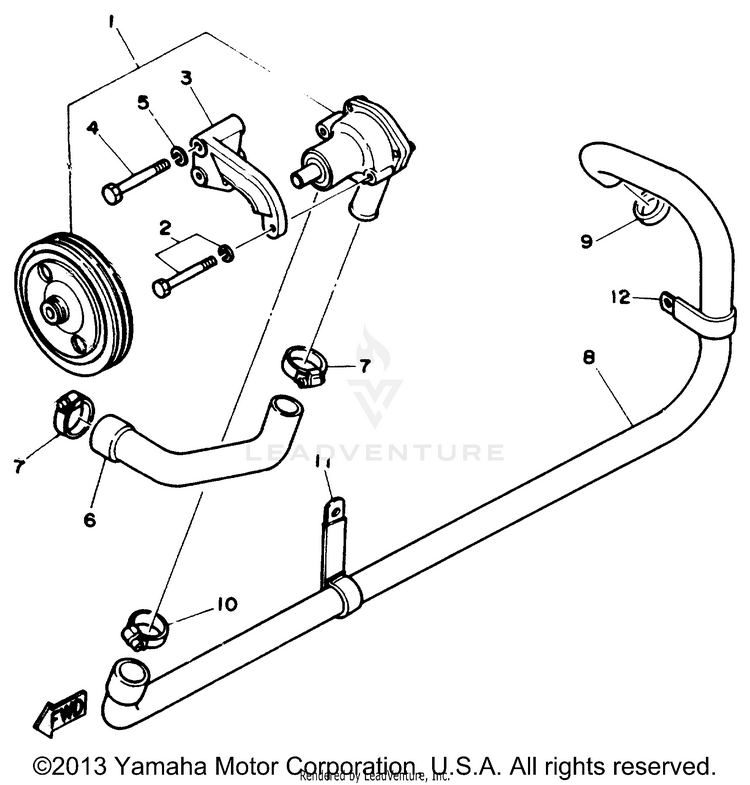

                                                                                                                                                                                                                                                          WATER PUMP
