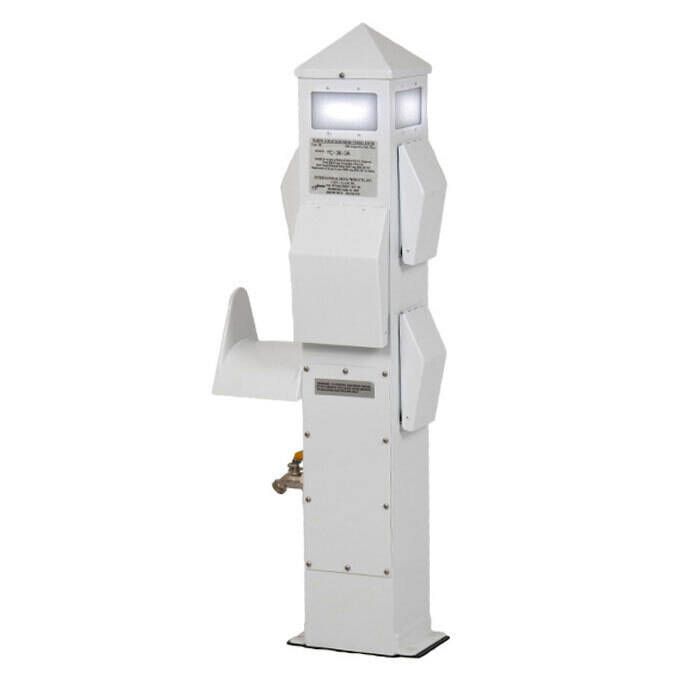

International Dock Slim Line Dockside Electrical Pillar - 1-50A/1-30A/1-20A - SPC-36-3A-305

International Dock's (SPC-36-3A-305) Slim Line Dockside Electrical Pillar is designed to be mounted vertically on the dock and features a slim profile that accommodates a variety of outlets and accessories.

Features:

• Extruded marine grade aluminum with 1/8" wall thickness
• No seams
• Welded base for extra strength
• All stainless steel fasteners with nylon washers
• Isolation plate to separate water, telephone and TV from "Electrical" (completely waterproof)
• Marine grade electrical receptacles
• Each receptacle is protected by a thermal magnetic circuit breaker
• Electrical distribution block - direct feed
• Lenses for the lights are on three sides and are made of lean
• Cone top
• Powder coated white inside and outside
• 15-Year unconditional warranty on structural integrity of casing
• Listed by qualified testing agency

Available Options: Contact us here to order these extra options.

• Power block - loop feed (stud) - maximum wire size 500 MCM cable
• TV/telephone receptacle
• PL-9 fluorescent light & photo cell
• Thermo plastic receptacle covers
• Aluminum covers with receptacle mounted on a 45° down angle and back lighted
• Electric meters
• Water meters with locking ball valves available on 45" unit
• 45" height and widths to 16"
• Hose holders / cable brackets
• European power receptacles
• 277/480V Receptacles available
• Natural aluminum finish and custom colors available
• Custom pillar available

Specifications:

• Dimensions: 6" x 6" x 36" (height)
• Mount: Dock surface
• Construction: Aluminum
• Hardware material: Stainless steel
• Finish: Powder coated white

Included:

• (1) 50A 125/250V twistlock receptacle
• (1) 30A 125V twistlock receptacle
• (1) 20A GFCI duplex receptacle
• (1) Water faucet
• (1) Hose holder
• Light and photocell

International Dock Slim Line Dockside Electrical Pillar Dimensional Drawing
