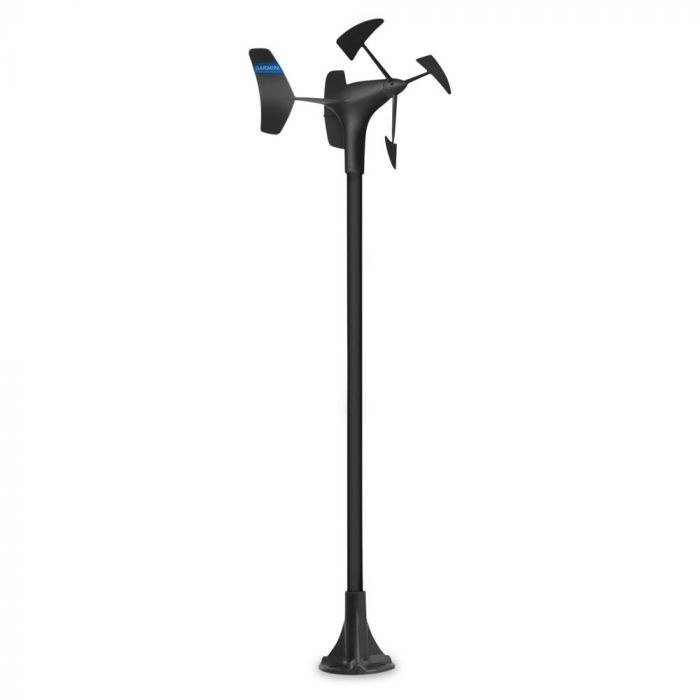

Garmin gWind Race Transducer - 010-01228-00

Designed for racing sailboats, the gWind Race features a 3.3' (1 m) straight pole to raise the transducer above the mast to remove turbulence errors. Features twin-fin technology with 3-bladed propeller for more accurate TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cups design, is always efficient.

Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.

Features:

• Designed for racing sailboats
• 3.3' (1 m) straight pole raises the wind transducer above the mast to remove turbulence errors from the sail wash
• Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air twin-fin design gives a more stable True Wind Angle (TWA)
• Optic reading technique provides superior performance at low wind speeds and excellent linearity
• GND™ 10 black box bridges NMEA 2000® data to Nexus Network and enables Garmin compatible chartplotters integrate with Nexus sail equipment and vice versa

Specifications:

• Dimension, H: 1.18 m
• Weight: 320 g
• Cable length: 25 m
• Waterproof: Yes (IPX6)
• Temp range: From 5° F to 158° F (-15° C to 70° C)
• Storage temperature: From -4° F to 176° F (-20° C to 80° C)
• Voltage range: 9-16V
• Power usage: 0.33W
• Typical current draw at 12V DC: 28 mA
• Compass safe distance: N/A
• Accuracy angle: Better than ±1.5°
• Speed: Better than ±3%
• Wind speed range: 0. 8-90 knots (0. 4-50 m/s)
• NMEA 2000® Load Equivalency Number (LEN): N/A
• Wireless connectivity: No

Included:

• gWind Race transducer
• GND™ 10
• USB Mini-B cable
• NMEA 2000® drop cable (2 m)
• NMEA 2000 T-connector
• Mast cable with female connector (25 m)
• Nexus network cable (5 m; straight connector)
• Nexus female field installable connector
• Mast bracket
• Mounting hardware
• Documentation

Installation Instructions (2.66 MB)
