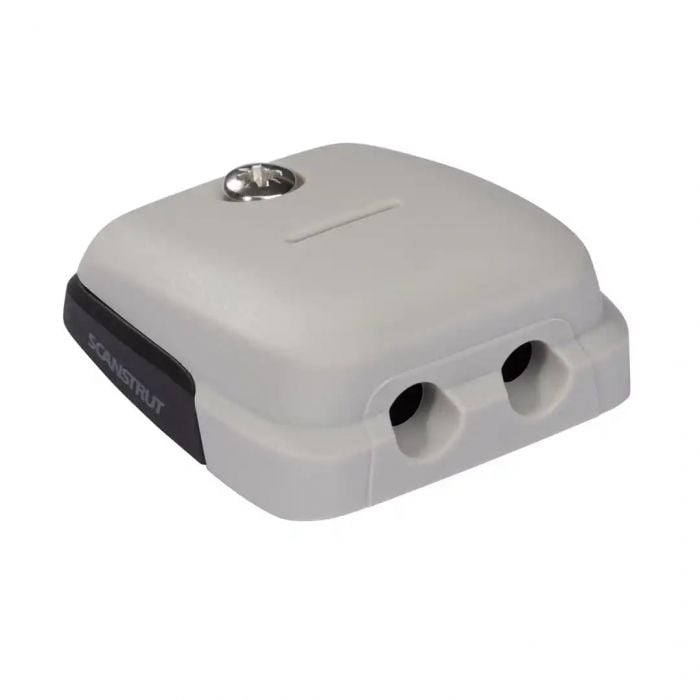

Scanstrut Double Horizontal Cable Seal

The double horizontal cable seal is designed to eliminate the time-consuming and sub-standard routing of solar panel cables ranging from 6 mm to 10 mm (0.23" - 0.39").

The seal enables a sleek, easy-to-fit, 100% watertight installation every time.

The low-profile construction is impact-resistant and provides extra protection from water, creating a snug and secure IP68-rated watertight seal. It is ideal for routing two solar panel cables from the outside to the inside.

The cable seal body is made from marine-grade plastic, selected for its UV-stable and hard-wearing properties. Fixings are made from marine-grade 316 stainless steel for long-lasting performance.

To speed up installation, the cable seals feature captive nuts, making the process simple and fast. Suitable for quick installations through wood, metal, and GRP.

Features:

• Designed for solar panel installations
• Compact design for installation in small spaces
• IP68 watertight seal
• Grey high-impact plastic
• Includes 316 stainless steel fixings and a waterproof 3M gasket
• Captive nuts for easy assembly and reliable repeat installations
• Materials are UV-stable and hard-wearing
• No messy sealant on bungs
• Constructed from premium marine-grade materials

Specifications:

• Material: High impact plastic
• Dimensions (H x L): 1.12" x 2.95" (28.5 mm x 75.1 mm)
• Cable Diameter: 2 x 0.23" - 0.39" (6 mm - 10 mm)
• Bungs: 2 x 0.24" (6 mm) / 2 x 0.28" (7 mm) / 2 x 0.31" (8 mm) / 2 x 0.35" (9 mm) / 2 x 0.39" (10 mm) / 2 x self drill
