Ronstan

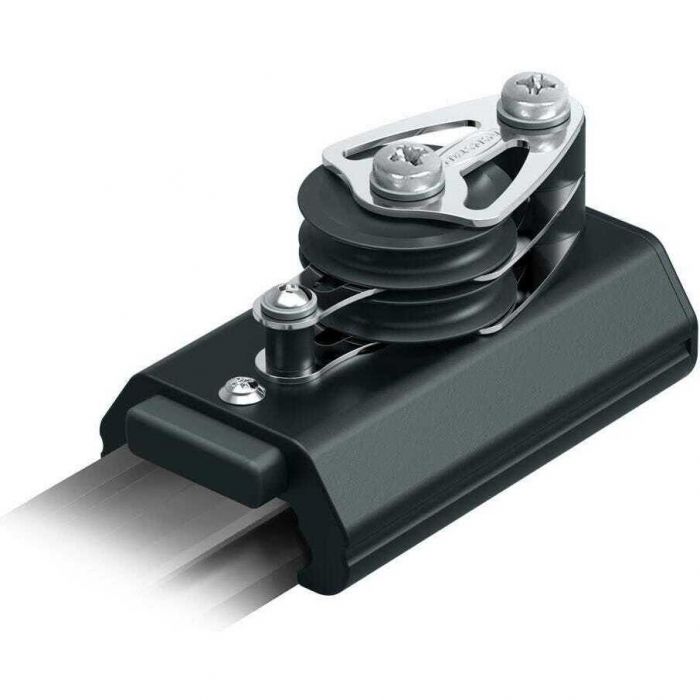

Ronstan Series 42 Control End
Item: #2296922 | Part Number: Not Selected$443.99 - $1,915.99
Description
The Series 42 control end features the option of one or two sheaves with optional becket, designed for efficient rope handling on sailboats. It supports headsail and mainsail applications with durable alloy construction and high-load bearings. Features: High-load roller ball bearings ensure reliable and low-friction operation Durable alloy body and...
Ronstan Series 42 Control End Item # 2296922
Description
The Series 42 control end features the option of one or two sheaves with optional becket, designed for efficient rope handling on sailboats. It supports headsail and mainsail applications with durable alloy construction and high-load bearings.
Features:
- High-load roller ball bearings ensure reliable and low-friction operation
- Durable alloy body and sheaves provide long-lasting corrosion resistance
- Integrated becket for secure rope attachment and control
- Rubber buffers reduce wear and absorb shock during use
50 mm (2") Specifications:
- Breaking Load: 1350 kg (2970 lbs)
- Maximum Working Load: 675 kg (1485 lbs)
- Weight: 800 g (28.2 oz)
- Length: 138 mm (5 3/8")
- Width: 75 mm (2 15/16")
- Rope Size Capacity: Up to 8 mm (5/16")
60 mm (2 3/8") Single Sheave Specifications:
- Breaking Load: 3000 kg (6600 lbs)
- Maximum Working Load: 1500 kg (3300 lbs)
- Weight:680 g (24 oz)
- Length: 126 mm (5")
- Width: 75 mm (2 15/16")
- Rope Size Capacity: Up to 14 mm (9/16")
60 mm (2 3/8") Single Sheave & Becket Specifications:
- Breaking Load: 3000 kg (6600 lbs)
- Maximum Working Load: 1500 kg (3300 lbs)
- Weight: 910 g (32.1 oz)
- Length: 154 mm (7 1/4")
- Width: 75 mm (2 15/16")
- Rope Size Capacity: Up to 14 mm (9/16")
75 mm (2 15/16") Single Sheave Specifications:
- Breaking Load: 3500 kg (7700 lbs)
- Maximum Working Load: 1750 kg (3850 lbs)
- Weight: 932 g (32.9 oz)
- Length: 135 mm (5 5/16")
- Width: 75 mm (2 15/16")
- Rope Size Capacity: Up to 14 mm (9/16")
75 mm (2 15/16") Single Sheave & Becket Specifications:
- Breaking Load: 3500 kg ( lbs)
- Maximum Working Load: 1750 kg (3580 lbs)
- Weight: 1138 g (40.1 oz)
- Length: 170 mm (6 3/4")
- Width: 75 mm (2 15/16")
- Rope Size Capacity: Up to 14 mm (9/16")
75 mm (2 15/16") Single Sheave, Becket & Dead End Specifications:
- Breaking Load: 6000 kg (13200 lbs)
- Maximum Working Load: 3000 kg (6600 lbs)
- Weight: 1400 g (49.4 oz)
- Length: 217 mm (8 9/16')
- Width: 75 mm (2 15/16")
- Rope Size Capacity: Up to 14 mm (9/16")
Compatibility:
- Genoa sheet systems for boats up to 25 m (82')
- Mainsheet systems for monohulls up to 24 m (78')
- Multihull mainsheet systems up to 19 m (62')
- Self-tacking jib systems for boats up to 2 m (65')
