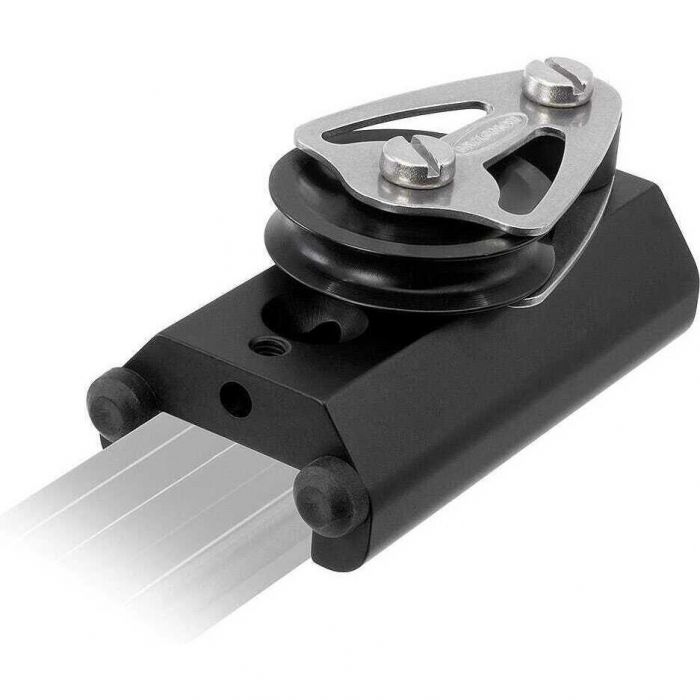

Ronstan Series 30 Control End

This Series 30 control end features a single sheave design ideal for sailboat mainsheet and genoa systems. It supports up to 8 mm (5/16") rope and combines durable alloy and stainless steel construction for reliable performance.

Features:

• Sheave(s) with smooth ball bearing track profile for efficient operation
• Durable alloy body paired with corrosion-resistant 316 stainless steel cheeks
• Acetal sheave material with rubber buffers to reduce wear and noise
• Designed for use with headsail and mainsail control systems
• Compact size suitable for various purchase system applications

Specifications:

• Breaking Load: 1350 kg (290 lbs)
• Maximum Working Load:
  • Single Sheave Model (RC13084): 450 kg (990 lbs)
  • Singe Sheave with Becket Model (RC13085): 675 kg (1490 lbs)
  • Double Sheave Models (RC13086, RC13087, RC13087CB): 675 kg (1490 lbs)
• Sheave Diameter: 50 mm (2")
• Rope Size Capacity: Up to 8 mm (5/16")
• Length: 115 mm (4 1/2")
• Width: 55 mm (2 3/16")
