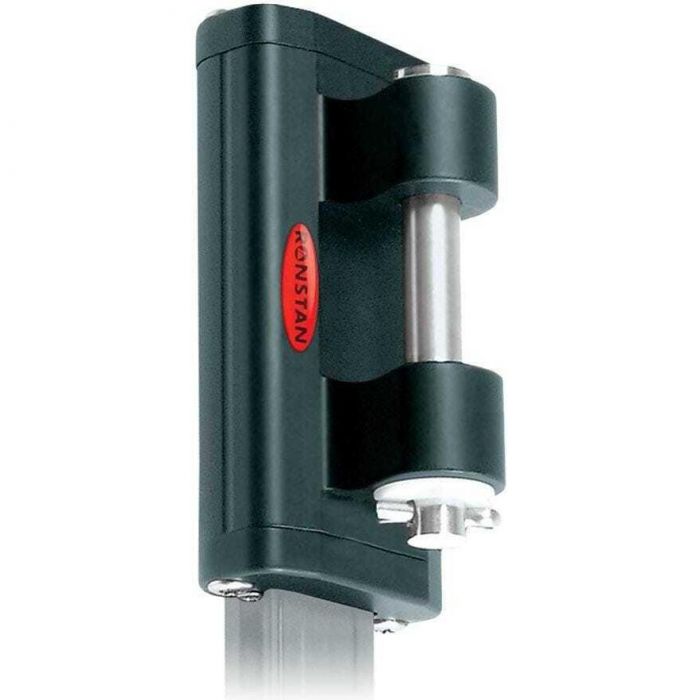

Ronstan Series 26 Captive Ball Reef Car - RC42672

The Ronstan Series 26 Captive Ball Reef Car is designed for 26 mm (1 1/32") track systems, offering a durable and low-profile solution for mainsail reefing. It features a lightweight alloy body and precision captive ball bearings for smooth operation.

Features:

• Captive ball bearings ensure smooth and reliable movement under load
• Low-profile design reduces wind resistance and improves sail handling
• Lightweight alloy construction provides strength without added weight
• Compatible with both standard and luff groove Series 26 tracks
• Durable stainless steel pin with a diameter of 11.8 mm (15/32") for secure attachment
• Sliderods enhance strength for high static loads and long-lasting performance
• Ball joint link allows multi-directional articulation for flexible sail positioning
• Easy installation with captive bearings and threaded slug options for track fitting

Specifications:

• Track Size: 26 mm (1 1/32")
• Dimension A: 90 mm (3 9/16")
• Dimension B: 37 mm (1 7/16")
• Dimension C: 49 mm (1 15/16")
• Dimension D: 28 mm (1 1/8")
• Dimension E: 52 mm (2 1/16")
• Pin Diameter: 11.8 mm (15/32")
• Weight: 230 g (9.5 oz)
• Material: Alloy, Torlon, acetal, grade 316 stainless steel

Compatibility:

• Monohull Size: Up to 16 m (53') or sail area 83 m2 (893 sq. ft.)
• Multihull Size: Up to 22 m (72') or sail area 105 m2 (1130 sq. ft.)
