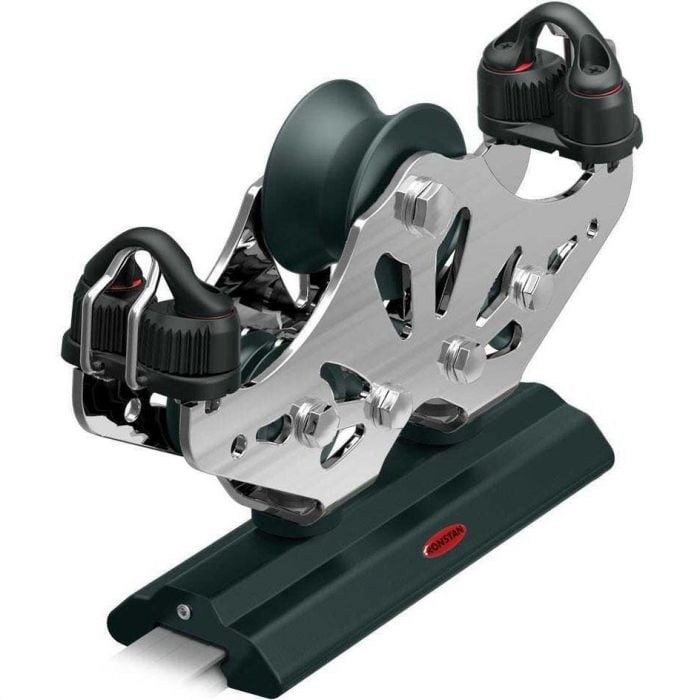

Ronstan Series 26 2:1 Mainsheet Car - RC12617

The Series 26 mainsheet car features a durable alloy body with a low-profile design. It includes a 75 mm (3") main sheave and triple 50 mm (2") control sheaves, engineered for smooth performance in sailing applications.

Features:

• Low-profile design for compact and efficient rigging on sailboats
• Lightweight alloy construction with corrosion-resistant anodized finish
• Pivoting main sheave allowing limited movement for optimized line control
• High-quality ball bearing track profile for smooth operation under load
• Stainless steel components with polished surfaces for enhanced durability
• Suitable for mainsheet systems with up to 6:1 control line purchase
• Precision-machined parts ensure reliable performance and longevity

Specifications:

• Main Sheave Diameter: 75 mm (3")
• Control Sheave Diameter: 50 mm (2")
• Length: 210 mm (8 1/4")
• Width: 70 mm (2 3/4")
• Weight: 2280 g (80.4 oz)
• Ball Bearings: 96 Torlon balls
• Breaking Load: 3400 kg (7500 lbs)
• Working Load Limit: 1700 kg (3750 lbs)
• Material: Alloy, Grade 316 stainless steel
• Sheave Pivot Range: 4 deg. Aft, 45 deg. forward

Compatibility:

• Mainsheet systems for boats up to 12 m (39')
• Genoa sheet systems for boats up to 13 m (43')
• Self-tacking jib systems for boats up to 10 m (33')
