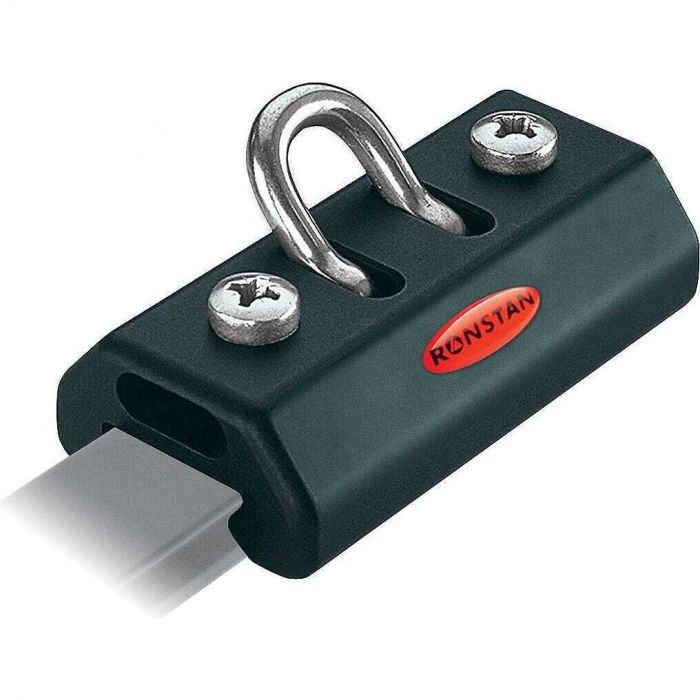

Ronstan Series 22 Sliderod Shackle Car

The Series 22 sliderod shackle car is designed for smooth sail control with durable alloy construction. It features a low-profile design and corrosion-resistant materials for reliable performance.

Features:

• Low-profile design for streamlined sail movement
• Lightweight alloy car body with anodized corrosion resistance
• Durable acetal sliderods for smooth operation
• Precision-machined components with smooth stainless steel fixtures
• Ball bearing track profile for enhanced glide and stability

Pivoting Shackle Specifications:

• Breaking Load: 1490 kg (3280 lbs)
• Maximum Working Load: 600 kg (1320 lbs)
• Weight: 95 g (3.4 oz)
• Length: 48 mm (1 7/8")
• Width: 45 mm (1 3/4")
• Material: Alloy, acetal, grade 316 stainless steel

Pivoting Shackle, Internal Control Beckets Specifications:

• Breaking Load: 2960 kg (5930 lbs)
• Maximum Working Load: 1000 kg (2200 lbs)
• Weight: 166 g (5.9 oz)
• Length: 85 mm (3 3/8")
• Width: 45 mm (1 3/4")
• Material: Alloy, acetal, grade 316 stainless steel

Pivoting Shackle & Plunger Stop Specifications:

• Breaking Load: 1940 kg (4280 lbs)
• Maximum Working Load: 975 kg (2150 lbs)
• Weight: 177 g (6.2 oz)
• Length: 85 mm (3 3/8")
• Width: 45 mm (1 3/4")
• Material: Alloy, acetal, grade 316 stainless steel
