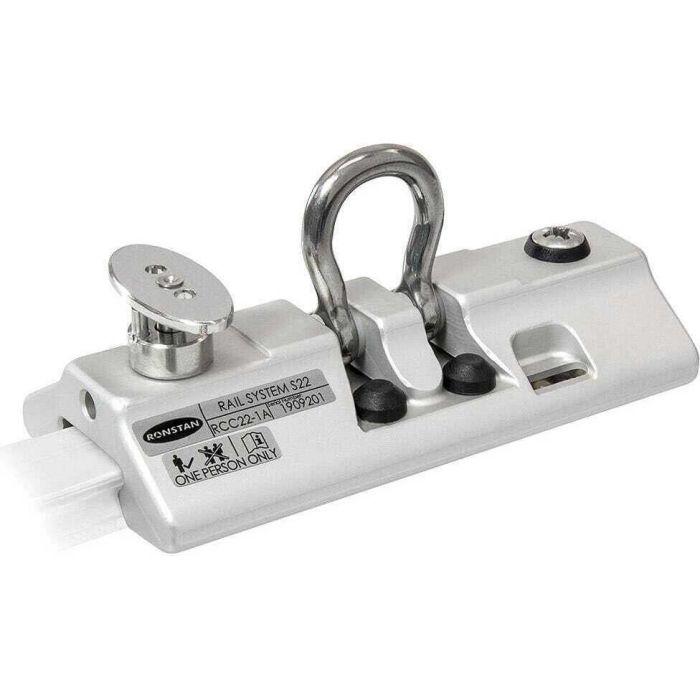

Ronstan Series 22 Safety Rail Car

The Series 22 Safety Rail Car is a durable fall protection device designed for multiple users. It features corrosion-resistant aluminum and stainless steel construction, meeting key European and Australian safety standards.

Features:

• Certified for up to three simultaneous users under EN795:2012 and CEN/TS16415:2013 standards
• Constructed from marine-grade anodized aluminum for enhanced corrosion resistance
• Recirculating Torlon ball bearings ensure smooth, low-friction movement with minimal maintenance
• Durable 316 stainless steel shackles provide secure lanyard attachment points
• Rubber buffers reduce vibration and improve shackle accessibility
• Spring-loaded stainless steel plunger allows easy repositioning at stop points
• Lockable plunger enables free movement along the track when disengaged
• Ergonomic elliptical knob offers clear engagement indication and easy operation
• Versatile mounting supports both vertical and horizontal track installation

Single Car, 1 Attachment Point, Plunger Stop Specifications:

• Weight: 252 g (8.9 oz)
• Length: 124 mm (4 7/8")
• Width: 58 mm (2 5/16")
• Material: Anodized aluminum, grade 316 stainless steel

Tandem Car, 2 Attachment Points, Plunger Stop Specifications:

• Weight: 504 g (17.8 oz)
• Length: 254 mm (10")
• Width: 58 mm (2 5/16")
• Material: Anodized aluminum, grade 316 stainless steel

Single Car, 1 Attachment Point Specifications:

• Weight: 234 g (8.3 oz)
• Length: 124 mm (4 7/8")
• Width: 58 mm (2 5/16")
• Material: Anodized aluminum, grade 316 stainless steel

Compatibility:

• Designed for use with EN795:2012 Type D safety rail systems
• Suitable for personal fall protection in maintenance and cleaning applications

Safety Rail System S22 Installation Instructions (1.04 MB)
