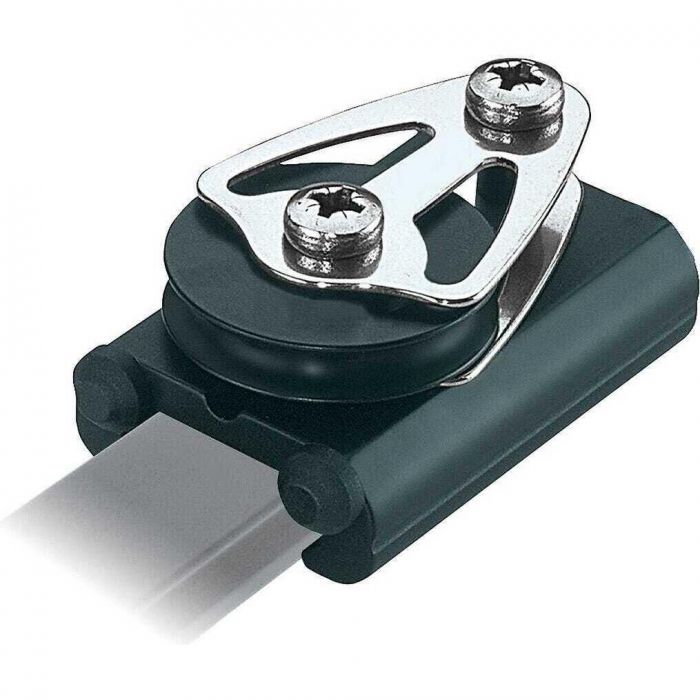

Ronstan Series 22 Control End

The Series 22 control end features a single sheave designed for sailboat mainsheet and genoa systems. It supports high loads with durable alloy construction and stainless steel components for reliable performance.

Features:

• Single sheave with smooth ball bearing operation for efficient rope handling
• Durable alloy body paired with corrosion-resistant 316 stainless steel cheeks
• Acetal sheave designed to fit ropes up to 8 mm (5/16") in diameter
• Compact design suitable for various sail control applications on small to mid-size boats
• Rubber buffers provide added protection and reduce wear during use
• Versatile use for mainsheet, genoa, spinnaker pole, and outhaul systems

Single Sheave Specifications:

• Load Breaking: 900 kg (1980 lbs)
• Maximum Working Load: 240 kg (530 lbs)
• Sheave Diameter: 40 mm (1 9/16")
• Length: 83 mm (3 9/32")
• Width: 45 mm (1 3/4")
• Weight: 140 g (4.9 oz)
• Material: Alloy, 316 stainless steel
• Rope Size Capacity: 8 mm (5/16")

Single Sheave & Becket Specifications:

• Load Breaking: 900 kg (1980 lbs)
• Maximum Working Load: 320 kg (710 lbs)
• Sheave Diameter: 40 mm (1 9/16")
• Length: 103 mm (4 1/16")
• Width: 45 mm (1 3/4")
• Weight: 168 g (5.9 oz)
• Material: Alloy, 316 stainless steel
• Rope Size Capacity: 8 mm (5/16")

Compatibility:

• Mainsheet and genoa sheeting for boats up to 10 m (33')
• Spinnaker pole and outhaul systems for boats up to 8 m (26')
