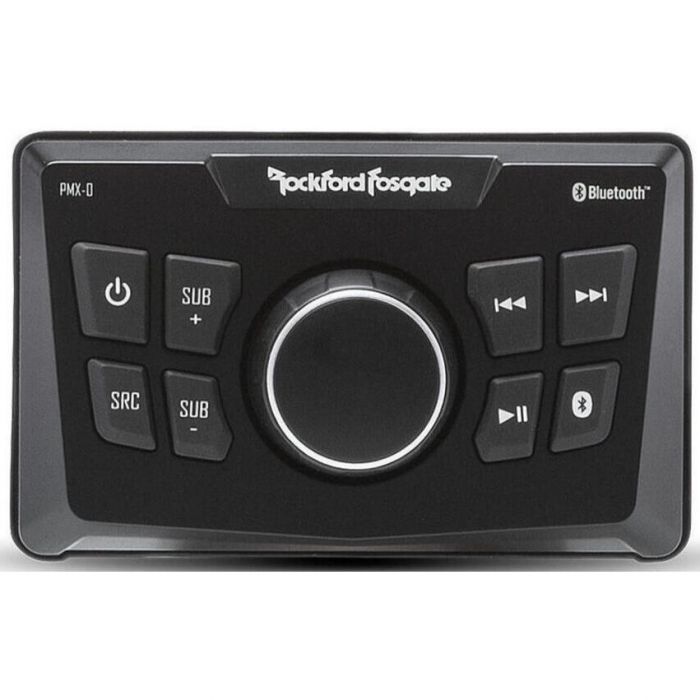

Rockford Fosgate Ultra Compact Digital Media Receiver - PMX-0

The Rockford Fosgate PMX-0 is an ultra-compact digital media receiver designed for marine and motorsports applications. Featuring Bluetooth® audio streaming, AUX input, USB charging, and dedicated front, rear, and subwoofer RCA outputs, it delivers flexible audio control in a compact, Element Ready™ design built to withstand harsh outdoor environments.

Features:

• Ultra-compact digital media receiver for marine and motorsports applications
• Bluetooth® audio streaming with A2DP and AVRCP support
• Simple Secure Pairing (SSP)
• Water-resistant rotary encoder volume control
• White LED button illumination
• Front panel subwoofer level control
• Voice command confirmation
• Rear AUX input
• Apple® / Android™ Compatible
• Rear USB port for charging and firmware updates
• Easy 2" mounting hole installation with compression U-clamp
• Epoxy-coated circuit board for water resistance

Specifications:

• Operating Voltage: 10.5 - 16V DC
• Device Type: Digital media receiver
• Bluetooth®: Version 3.0 with AVRCP and A2DP
• AUX Input: Yes
• USB Charging: Yes
• USB Output Current: 1A (Charging Only)
• RCA Outputs: Front, Rear, and Subwoofer
• RCA Output Voltage: 2V
• RCA Output Impedance: 500 ohm
• Frequency Response: 20 Hz - 20 kHz
• Fuse Rating: 3A
• Dimensions (W x H x D):
  • Overall: 4.1" x 2.6" x 2.5" (10.4 x 6.6 x 6.4 cm)
  • Faceplate Depth: 1.5" (3.8 cm)
  • Chassis Depth: 1.0" (2.5 cm)
• Back Panel Cutout: 2" (52 mm)
