Rockford Fosgate Punch Marine Hide-Away AM/FM/WB Multi-Zone Digital Media Receiver - PMX-8BB

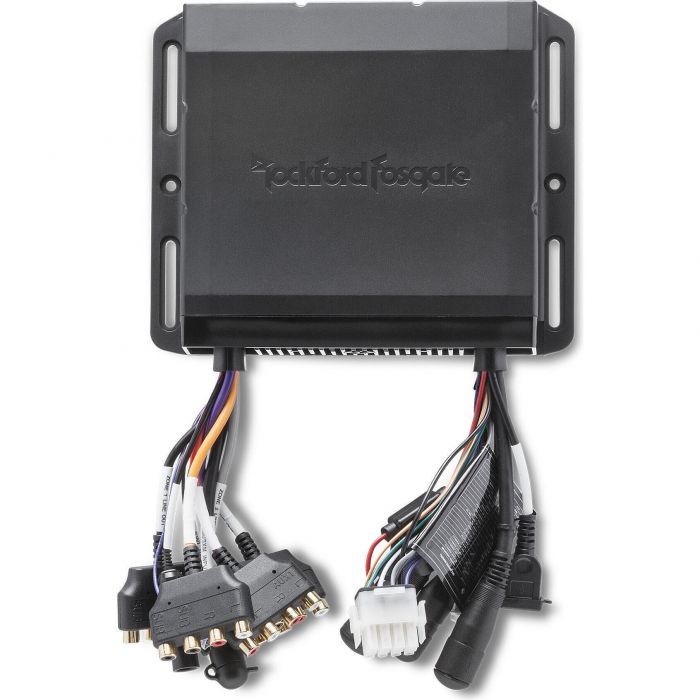

The Rockford Fosgate PMX-8BB Punch Marine Hide-Away Digital Media Receiver is a black box source unit designed for use with the PMX-8DH display controller. Built for premium marine audio systems, it features AM/FM/WB tuning, Bluetooth® streaming, SiriusXM® compatibility, four-zone audio control, CAN-bus support, and advanced DSP tuning in an Element Ready™ design.

Features:

• Hide-away digital media receiver for use with PMX-8DH controller
• AM/FM/WB tuner with RDS support
• Bluetooth® audio streaming with album art support
• SiriusXM®-Ready (SXV300 module required)
• Pandora® control
• CAN-bus compatible with PMX-CAN interface
• Compatible with NMEA 2000 Multi-Function Displays
• Independent 4-zone audio control with dedicated DSP
• 7-band graphic EQ and Punch EQ for each zone
• Selectable high-pass and low-pass crossovers with 12/24 dB/octave slopes
• Reverse camera trigger input
• USB and AUX inputs with 1A USB charging
• Steering wheel remote compatible
• Integrated voltage gauge with low voltage alert
• EEPROM non-volatile memory
• Upgradeable firmware via USB
• Epoxy-coated circuit board
• IPX5 water intrusion rating

Specifications:

• Device Type: Digital media black box receiver
• Operating Voltage: 10.5 - 16V
• Power Output: 25W x 4 @ 4 ohm RMS (CEA-2006, ≤1.0% THD+N)
• Frequency Response: 20 Hz - 20 kHz
• Speaker Impedance: 2 ohm
• Bluetooth®: Version 3.0 + EDR (A2DP 1.3)
• Apple®/Android™ Compatible: Yes
• SiriusXM®-Ready: Yes (SXV300 required)
• Pandora® Support: Yes
• USB Version: 2.0
• USB Charging: 1A
• USB Capacity: Up to 32GB, 999 folders, 999 songs
• Media Formats: MP3, WMA, FLAC
• AM/FM/WB Presets: 18 FM / 12 AM / 6 WB
• FM Frequency Range: 87.5 - 107.9 MHz
• AM Frequency Range: 530 - 1710 kHz
• Weather Band Frequency Range: 162.40 - 162.55 MHz (US & Canada)
• AUX Input: Yes
• Multi-Zone Audio: 4 independent zones
• RCA Outputs:
  • Zone 1: L/R/Sub/Sub (4V)
  • Zone 2: L/R/Sub/Sub (4V)
  • Zone 3: L/R/Sub/Sub (4V)
  • Zone 4: L/R/Sub/Sub (4V)
  • Output Impedance: 500 ohm
• Compatible Remotes: PMX-0R, PMX-1R, PMX-8DH (up to 3 wired remotes)
• CAN Interface: PMX-CAN
• Fuse Rating: 15A
• Dimensions (W x H x D): 8.3" x 4.25" x 2.2" (21.1 x 10.8 x 5.6 cm)
