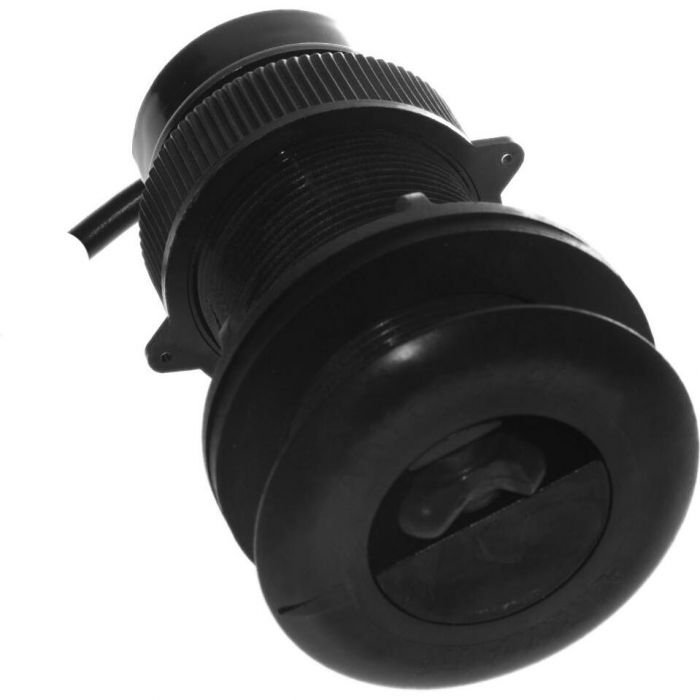

Raymarine Thru-Hull Retractable Transducer - T910

Raymarine's T910 Thru-Hull Retractable Transducer offers depth, speed and temperature in a single thru-hull fitting, that can produce stable and accurate speed measurements up to 52 knots.

Features:

• TRIDUCER® multisensor offers depth, speed, and temperature in a single thru-hull fitting
• Transducer sends depth data by cable to Raymarine T121 Hull Transmitter (not included) which then forwards the data to displays by wireless link
• Fan-shaped 11° x 46° transducer beam means no performance loss on hulls with up to 22° deadrise
• Stable and accurate speed measurement from 0.9 to 52 knots
• Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing
• Compatible with Raymarine wireless cruising display systems including T100, T103, T108, T110 and T111

Specifications:

• Mount: Thru-hull
• Housing Material: Plastic
• Cable Length: 9 ft. (for wireless hull transmitter connection)
• Frequency: 200 kHz
• Cone: 11° fore / aft x 46° port / starboard
• Power: 100W RMS
• Hull Deadrise: Up to 22°
• Max. Depth Range: 160 ft
• Temperature Sensor Range: 14 - 104°F
• Acoustic Window Material: Urethane
• Compatible Hull Materials: Fiberglass or metal
• Hole Diameter for Installation: 2"
• Dimensions: 4.92" H x 2.94" OD

Note: The T910 is not supplied with crimps.
