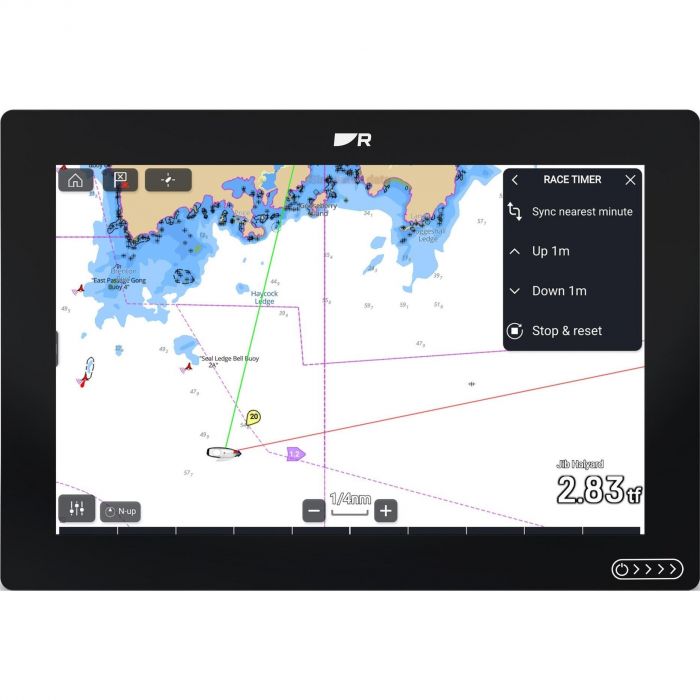

Raymarine Axiom 2 12 MFD Chartplotter with RealVision 3D Sonar - E70725

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine's signature durability and ease of use.

Features:

• 6-core processor delivers faster chart rendering, quicker startups and smoother networking and video performance
• HydroTough IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility
• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar and accessory devices
• 64 GB of onboard storage for apps, charts, video and user data
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates
• Smart vessel monitoring and control, including engine integration, NMEA 2000 and digital switching support

Physical Specifications:

• Trunnion Mounted Dimensions (W x H x D): 314 x 217 x 178 mm (12.36" x 8.54" x 7.01")
• Surface/Flush Mounted Dimensions (W x H x D): 314 x 226.72 x 178 mm (12.36" x 8.93" x 7.01")
• Accessory Connection: USB Micro B
• Ethernet Connection: RayNet
• External Storage: MicroSDXC card slot x 1
• NMEA 2000 Connection: DeviceNet (male connector built into power cable)
• Wireless Connections: Bluetooth V4.0, Wi-Fi
• Internal storage: 64 GB
• Transducer Connection: 25 pin RealVision type connector (Requires the A80490 adaptor cable for CPT-S style transducers)

Environmental Specifications:

• Operating Temperature: -25° C to +55° C (-13° F to 131° F)
• Storage Temperature: -30° C to +70° C (-22° F to 158° F)
• Relative Humidity: Up to 93% @ 40° C (104° F)
• Waterproof Rating: IPx6, IPx7

Power Specifications:

• Power Consumption: 18.96W
• Operating Voltage Range: 8 - 16V DC
• Fuse Rating: 7A
• Nominal Supply Voltage: 12V DC

LCD Specifications:

• Resolution: WXGA 1280 x 800
• Display Brightness: 1800 nits / 1800 cd/m2
• Protective Coating: HydroTough oleophobic
• LCD Type: IPS (In-plane switching)

GPS Specifications:

• Position Accuracy:
  • Without SBAS: ≤ 15 m 95% of the time
  • With SBAS: ≤ 5 m 95% of the time
• Channels: Track up to 28 satellites simultaneously
• Antenna: Internal (Ceramic chip mounted near top of unit)
• GNSS Compatibility: GPS, GLONASS, Beidou
• Operating Frequency: 1574 - 1605 MHz
• Refresh Rate: 10 Hz (10 times per second)

Sonar (RV Models) Specifications:

• CHIRP Sonar Channels:
  • RealVision 3D: (70W/350 kHz)
  • SideVision: (70W/350 kHz)
  • DownVision: (35W/350 kHz)
  • CHIRP High: (100W/200 kHz)
• Conventional Sonar Channels:
  • 50/200 kHz (600W) (A 600W conventional sonar transducer and adapter cable is required)

Chartplotter Specifications:

• Waypoints: Up to 10,000 Waypoints can be stored in up to 200 Waypoint groups
• Routes: Up to 250 routes can be stored, each route can contain up to 500 Waypoints
• Automatic Route Planning: Yes with Navionics charts or via the Orca mobile app
• Tracks: Up to 15 tracks can be stored, each track can contain up to 10,000 track points

Included:

• Axiom 2 MFD (supplied with trunnion adaptor fitted)
• Trunnion bracket
• 2 x Trunnion knobs
• Suncover
• Suncover - trunnion mount
• Panel mount gasket for surface/flush mounting
• 4 x M5x58 Threaded studs
• 4 x M5 Thumb nuts
• Documentation pack
• Power/NMEA 2000 cable (with 1.5 m (4.92') power lead and 0.5 m (1.64') NMEA 2000 lead)

Data Sheet (3.46 MB)
