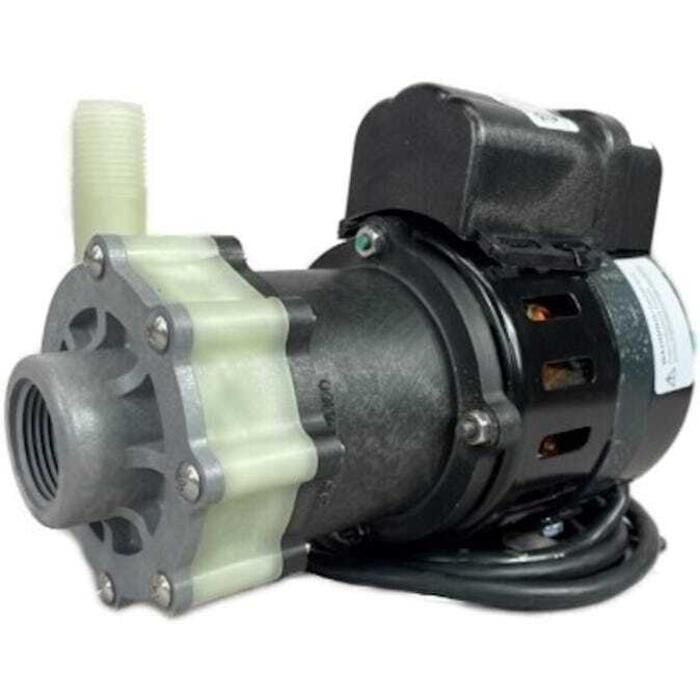

March AC-5M-MD Magnetic Drive Pump
Item: #2224768 | Part Number: Not Selected
The March AC-5M-MD Magnetic Drive Pump is a seal-less, ignition-protected centrifugal pump designed for reliable marine seawater and freshwater circulation. Delivering up to 17 GPM with extended run-dry protection and corrosion-resistant construction, it provides efficient, maintenance-friendly cooling and circulation performance.
March AC-5M-MD Magnetic Drive Pump Item # 2224768
Description
March Pump's AC-5M-MD is an American seal-less centrifugal magnetic drive pump ideal for marine applications. It is capable of generating a maximum flow of 17 gal per minute at 1' and its maximum head is 27' (11 PSI). The pump is ignition protected per SAE J1171 and ISO 8846, and has extended run dry protection through the use of a carbon bushing. It is capable of 48,000 BTU an hour.
March C and CP series magnetic-drive pumps have long been trusted for marine seawater circulation thanks to their reliable seal-less centrifugal design. New M-series pumps were designed with marine specific improvements including enhanced corrosion protection, extended run-dry protection, and standardized configurations for continuous sea water and fresh water circulation systems.
Specifications:
- Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
- Inlet: 1" FPT
- Outlet: 1/2" MPT
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190° F (87° C)
- Ignition Protected per SAE J1171 and ISO 8846: UL listed motor
- Wet End Materials:
- Polypropylene (rear housing, impeller)
- Noryl (front housing)
- Buna-N (O-ring)
- Carbon (impeller bushing)
- Ceramic (shaft, thrust washer)
- Ceramic magnet
- 50 Hz:
- Max Flow: 15.9 GPM / 954 GPH (60 LPM / 3600 LPH)
- Max Head: 19.7' (6 m)
- Power: 0.125 HP (0.093 kW)
- 60 Hz:
- Max Flow: 17 GPM / 1020 GPH (64.4 LPM / 3864 LPH)
- Max Head: 27' (8.2 m)
- Power: 0.125 HP (0.093 kW)
Replaces:
- March Pump AC-5C-MD:
- 115V Model: 0150-0026-0100
- 230V Model: 0150-0136-0100
Notes:
- This pump is not self-priming, a non-self-priming pump cannot remove air from its suction line by itself and must already be filled with liquid before it can move fluid:
- Starting the pump dry may cause it to overheat, cause damage to seals or internal components, and will not move water
- It is recommended to use a water strainer with this pump (not included)
- Images are for reference only, actual product may vary
