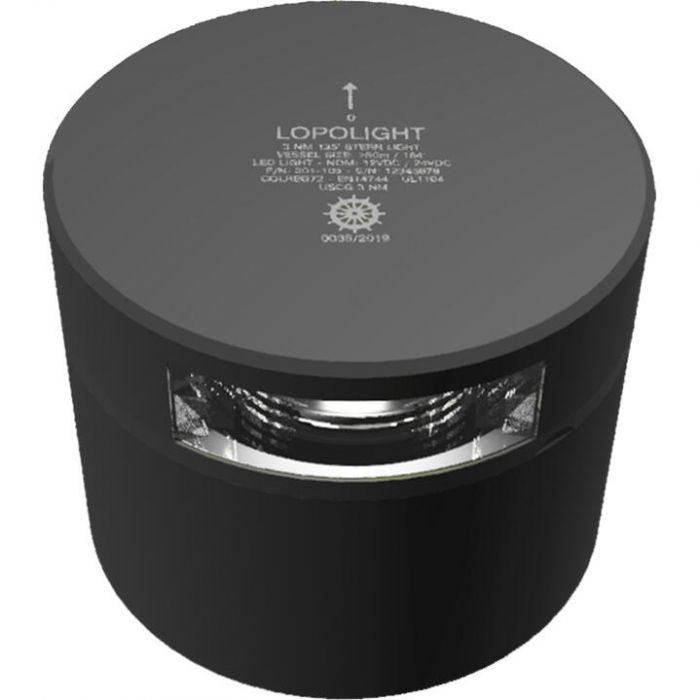

Lopolight 301 Series Horizontal Mount Stern Light - 3 NM

This 3 NM stern navigation light offers a 135 deg. beam angle with horizontal mounting on a durable aluminum base. It features a robust design suitable for vessels over 50 m (164') and provides reliable white illumination with high visibility.

Features:

• Wide 135 deg. beam angle for clear stern visibility up to 3 NM
• Durable aluminum housing with anodized finish in silver or black for corrosion resistance
• Horizontal mounting with flexible cable exit options on side or bottom
• High-intensity LED light delivering over 15 candela for effective signaling
• Waterproof design rated to IP68 for reliable operation in harsh marine environments
• Low power consumption with efficient 1.7W draw and 10V - 32V DC operation
• Impact-resistant PMMA lens for long-lasting optical clarity
• Stainless steel hardware ensures secure and rust-free installation
• Wide operating temperature range from -25°C to 55°C (-13°F to 131°F) for versatile use

Specifications:

• Visibility Range: 3 NM
• Beam Angle: 135 deg.
• Dimensions (Diameter x Depth): 3.6" x 2.9" (92.5 x 74.5 mm)
• Operating Voltage: 10V - 32V DC
• Power Consumption: 1.7W
• Current Draw (12V): 130 mA
• Current Draw (24V): 72 mA
• Weight: 1 kg (35.3 oz)
• Ingress Protection: IP68
• Material Finish: Silver or black anodized aluminum
• Mounting Hardware: M6 x 8 mm (5/16") stainless steel screws
• Operating Temperature: -25°C to 55°C (-13°F to 131°F)

Compatibility:

• Designed for vessels over 50 m (164') in length

Included:

• (1) Navigation light
• (2) M6 x 8 mm mounting screws
• (1) Installation guide

Technical Drawing (2.71 MB)
