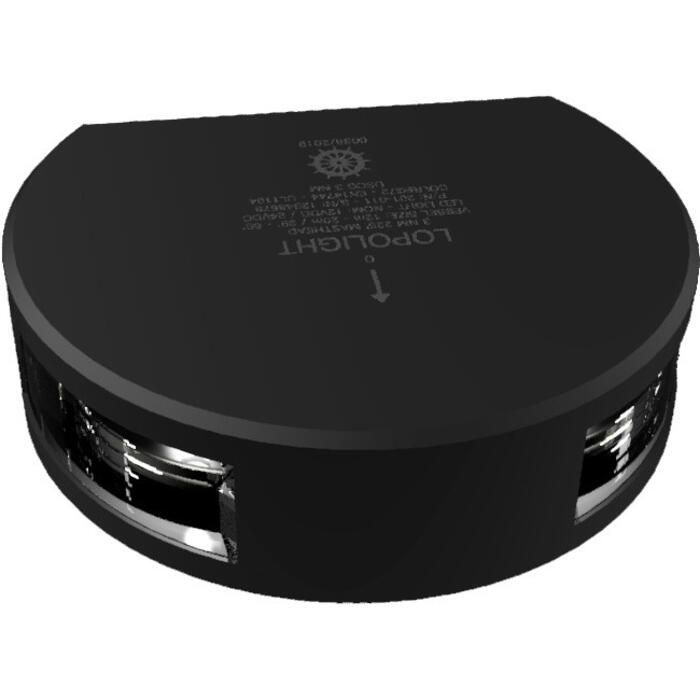

Lopolight 201 Series Masthead Light - 2 NM

This LED masthead light features a durable black anodized aluminum housing designed for vertical mounting. It offers a 225 deg. white light beam with over 2 NM of visibility, suitable for vessels under 12 m (39.4').

Features:

• High-power LED with precision PMMA light guide for focused illumination
• Rugged aluminum housing with black anodized finish for enhanced durability
• Fully potted interior ensures water and vibration resistance with IP68 rating
• Operates reliably across a wide voltage range from 10V to 32V DC
• Compact vertical design ideal for masthead installation on small vessels
• Includes marine-grade cable for secure and corrosion-resistant connections
• Wide operating temperature range from -25°C to 55°C (-13°F to 131°F) for varied conditions
• Certified to multiple international standards including COLREG72 and USCG

Specifications:

• Visibility: 2 NM
• Light Color: White
• Power Consumption: 2.5W
• Current: 0.21A @ 12V, 0.10A @ 24V
• Operating Voltage: 10-32V DC
• LED Count: 2
• Dimensions (L x W x H): 2.9" x 1.1" x 2.88"
• Weight: 0.43 kg (15.17 oz)
• IP Rating: IP68
• Material: Anodized aluminum, PMMA lens, stainless steel
• Cable Length: 0.7 m (2.3')
• Operating Temperature: -25°C to 55°C (-13°F to 131°F)

Compatibility:

• Designed for vessels under 12 m (39.4')

Included:

• (1) Navigation light with 0.7 m (2.3') marine-grade cable
• (2) M6 x 8 mm mounting screws
• (1) Installation guide

Technical Drawing
