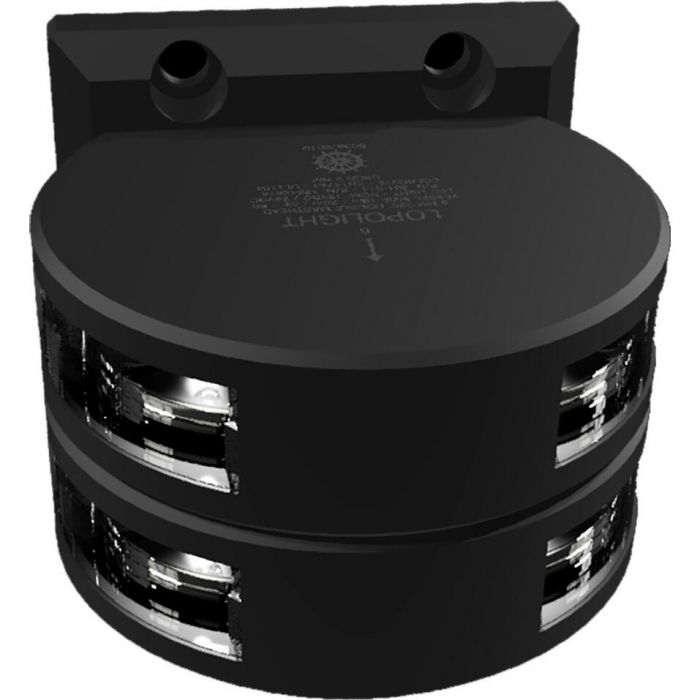

Lopolight 201 Series Double Stacked Masthead Light - 3 NM

This is a Lopolight double masthead navigation light designed for vessels 12 to 20 m (39.4' to 66') in length. It features a durable black anodized aluminum body and provides 3 NM visibility with a wide 225 deg. beam angle.

Features:

• Double stacked LED design for enhanced visibility on mastheads
• Durable black anodized aluminum housing with stainless steel hardware
• Vertical mounting with a 0.7 m (2.3') cable for easy installation
• High IP68 rating ensures reliable waterproof performance in harsh conditions
• Wide 225 deg. beam angle suitable for marine navigation requirements
• Low power consumption with efficient LED technology operating from 10 to 32V DC
• Temperature resistant from -25°C to 55°C (-13°F to 131°F) for versatile use

Specifications:

• Visibility: 3 NM
• Operating Voltage: 10V - 32V DC
• Power Draw: 3W
• Light Color: White
• Current Consumption: 232mA @ 12V, 127mA @ 24V
• Dimensions (W x H x D): 3.6" x 3.4" x 3.3" (92.5 x 88.6 x 85 mm)
• Weight: 0.99 kg (34.9 oz)
• Material: Anodized aluminum, PMMA lens, stainless steel
• IP Rating: IP68
• Beam Angle: 225 deg.
• Cable Length: 0.7 m (2.3')
• Operating Temperature: -25°C to 55°C (-13°F to 131°F)

Compatibility:

• Suitable for vessels 12 - 20 m (39.4' - 66')
• Certified to COLREG72, USCG, EN14744, IEC 60945, DNV, ABS, LR, M.E.D., IACS E10

Included:

• (1) Navigation light with 0.7 m (2.3') cable
• (1) Mounting hardware set
• (1) Installation guide

Technical Drawing
