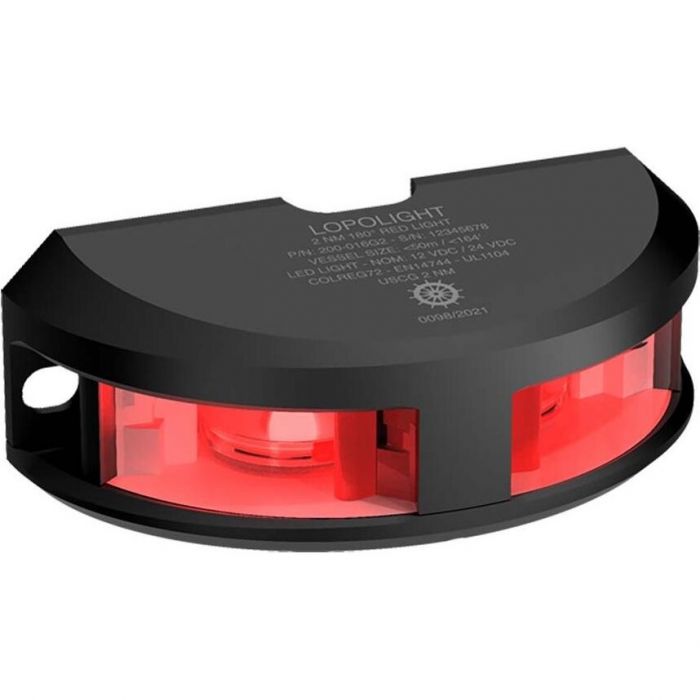

Lopolight 200 Series Navigation Light - 180 deg. 2 NM

Lopolight vertical mount navigation lights offer reliable 2 NM visibility with durable anodized aluminum housings. Available in red and green, these lights are designed for vessels up to 50 m (164') and feature waterproof IP68 protection.

Features:

• Compact vertical design with corrosion-resistant anodized aluminum construction
• High-intensity LED providing clear 2 NM visibility in red or green
• Waterproof housing rated IP68 for dependable use in harsh conditions
• Includes marine-grade shielded cable for secure and durable connections
• Low power consumption optimized for 10V to 32V DC systems
• Corrosion-resistant stainless steel hardware and protective PMMA lens
• Wide operating temperature range from -25°C to 55°C (-13°F to 131°F) for versatile deployment
• Certified to international maritime standards including COLREG72 and IEC 60945

Specifications:

• Visibility: 2 NM
• Operating Voltage: 10V - 32V DC
• Current Consumption: 145mA @ 12V, 60mA @ 24V
• Power Draw: 1.5W
• Light Color: Red, green
• Dimensions (L x W x H): 4" x 1.4" x 1.8" (104 x 37 x 45 mm)
• Weight: 12 oz (0.34 kg)
• Cable Length: 0.7 m (2.3')
• Material: Anodized aluminum, PMMA lens, stainless steel
• IP Rating: IP68
• Operating Temperature: -25°C to 55°C (-13°F to 131°F)
• LED Count: 1
• Wire Gauge: 0.5 mm² (22 AWG)

Compatibility:

• Designed for vessels up to 50 m (164')
• Meets COLREG72 and multiple international navigation standards

Included:

• (1) Navigation light with 0.7 m (2.3') marine-grade cable
• (1) Mounting hardware set
• (1) Installation guide

Technical Drawing (Red)

Technical Drawing (Green)
