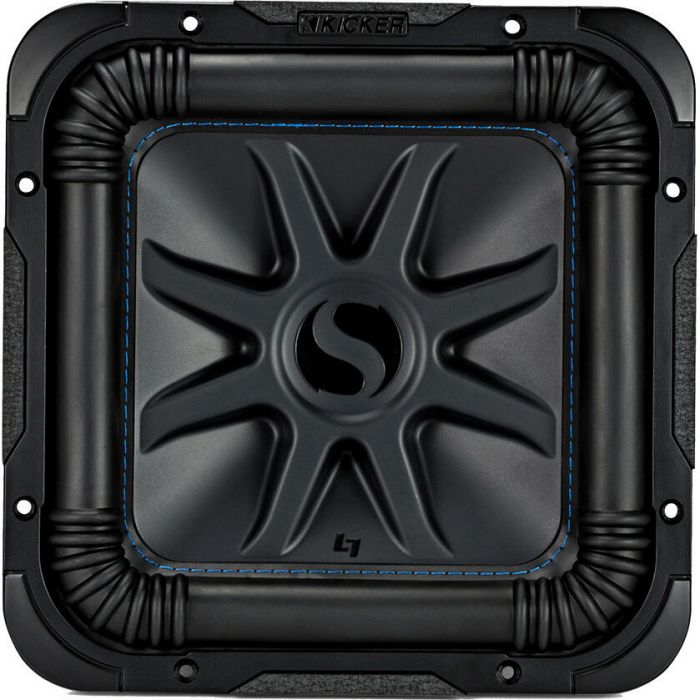

KICKER Solo-Baric L7S Square Subwoofer

The Solo-Baric L7S is a square subwoofer designed for powerful bass performance. It features a durable Santoprene surround and advanced cone technology for enhanced sound clarity and strength. This model is engineered to handle high power while maintaining reliable operation.

Features:

• Incorporates ribbed Santoprene surrounds to reduce distortion and maintain precise bass control under heavy power loads
• Utilizes an injection-molded cone with 360 deg. back bracing for improved durability and responsiveness
• Employs a UniPlate back plate and pole piece to efficiently dissipate heat and extend subwoofer lifespan
• Includes forced air cooling that circulates air through the motor for consistent thermal management during extended use
• Constructed with a forged aluminum frame and ceramic magnets to ensure structural integrity and optimal magnetic performance
• Features dual high-temperature voice coils and a semi-progressive spider for enhanced power handling and stability
• Designed with heavy-duty tinsel leads to maintain reliable electrical connections in demanding environments

Specifications:

• Surround Material: Santoprene
• Cone Material: Injection-molded SoloKon
• Frame Material: Forged aluminum
• Cooling System: Forced air with UniPlate back plate
• Voice Coils: Dual high-temperature
• 8" Model:
  • Model: L7S8
  • Rated Impedance: 2/4 ohm
  • Fs: 47.2Hz
  • Continuous Power Handing: 450W RMS
  • Sensitivity: 82.37 dB (1W, 1m)
  • Xmax (Linear Excursion): .52" (13.5 mm)
  • Resistance: 6.6-ohm
  • Outer Frame Dimension: 8 3/16" (22.4 cm)
  • Mounting Cutout: 7 1/4" (18.4 cm)
  • Mounting Depth: 4 3/4" (12.1 cm)
  • Frequency Response: 28 - 500Hz
• 10" Model:
  • Model: L7S10
  • Rated Impedance: 2/4 ohm
  • Fs: 37.5Hz
  • Continuous Power Handing: 600W RMS
  • Sensitivity: 85.87 dB (1W, 1m)
  • Xmax (Linear Excursion): .64" (16.25 mm)
  • Resistance: 7.9-ohm
  • Outer Frame Dimension: 10 11/16" (27.1 cm)
  • Mounting Cutout: 9 5/16" (23.7 cm)
  • Mounting Depth: 6 1/4" (15.9 cm)
  • Frequency Response: 24 - 500Hz
• 12" Model:
  • Model: L7S12
  • Rated Impedance: 2/4 ohm
  • Fs: 34Hz
  • Continuous Power Handing: 750W RMS
  • Sensitivity: 86.9 dB (1W, 1m)
  • Xmax (Linear Excursion): .64" (16.25 mm)
  • Resistance: 6.8 ohm
  • Outer Frame Dimension: 12 5/8" (32 cm)
  • Mounting Cutout: 11 1/16" (28.1 cm)
  • Mounting Depth: 6 13/16" (17.3 cm)
  • Frequency Response: 20 - 500Hz
• 15" Model:
  • Model: L7S15
  • Rated Impedance: 2/4 ohm
  • Fs: 26.3Hz
  • Continuous Power Handing: 1000W RMS
  • Sensitivity: 88.56 dB (1W, 1m)
  • Xmax (Linear Excursion): .75" (19 mm)
  • Resistance: 7-ohm
  • Outer Frame Dimension: 15 5/8" (39.7 cm)
  • Mounting Cutout: 13 3/4" (34.9 cm)
  • Mounting Depth: 8 11/16" (22.1 cm)
  • Frequency Response: 18 - 500Hz
