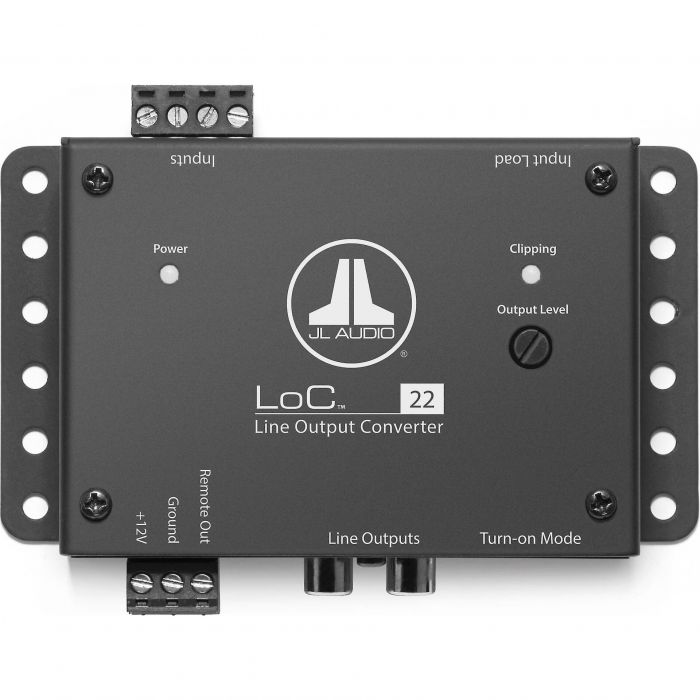

JL Audio LoC 22 Car Line Output Converter - 010-03328-00

The LoC 22 is a compact active line output converter designed to convert high-level factory audio signals into clean, low-level outputs for aftermarket amplifiers and processors. It features advanced input circuitry and a built-in 12V trigger for seamless integration with various audio systems.

Features:

• Active two-channel conversion for precise signal attenuation without quality loss
• Dual-range input load selector ensures compatibility with most OEM amplifier outputs
• Built-in 12V trigger output automatically powers aftermarket amplifiers or processors
• LED clipping indicator simplifies output level calibration for accurate tuning
• Compact chassis designed for easy installation in tight spaces
• Balanced differential inputs minimize noise and distortion for clean audio signals
• RCA line-level outputs provide up to 8V RMS for reliable connection to aftermarket gear
• Wide frequency response maintains audio fidelity from 3 Hz to 32 kHz

Specifications:

• Power Supply Type: Switching, MOSFET PWM, Regulated
• Operating Voltage: 9 - 16V DC
• Operating Current Draw: 0.13A @ 13.8V
• Standby Current Draw: Less than 1.6mA
• Frequency Response: 3 Hz - 32 kHz (+0dB, -1dB)
• S/N Ratio @ 2V RMS: 118dB (Gain at minimum), 103dB (gain at maximum)
• THD+N: 0.01% at 2V RMS (1 kHz)
• Remote Output Capacity: 100mA (Maximum)
• Input Channels: 2
• Input Type: Differential-Balanced
• Maximum Signal Input Voltage: 40V RMS
• Input Impedance (Switchable): 20 kiloohm (Normal), 60 ohm (Low Z)
• Turn-On Method: Signal sensing and DC-offset
• Output Channels: 2
• Analog Output: Unbalanced stereo RCA jacks
• Maximum Output (Unclipped): 8V RMS
• Output Impedance: 450 ohm
• Gain Range: -27.3dB - 3.2dB
• Dimensions (W x H x D): 4.750" x 1.250" x 4.250"

Included:

• JL Audio LoC-22 Line Output Converter owner's manual
• Line output converter
• 4-Pin Euroblock connector (pre-installed)
• 3-Pin Euroblock connector (pre-installed)
• Owner's manual
