Groco Paragon Senior Water Pressure System

$2,866.99 - $2,948.99
          Want an email once available?
          Buy with

          Image of : Groco Paragon Senior Water Pressure System Groco Paragon Senior Water Pressure System Item # 867739

          Description

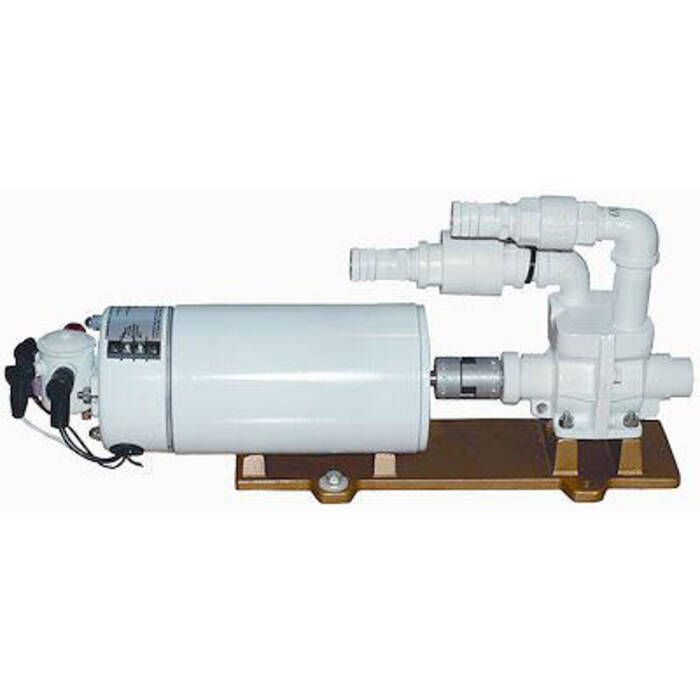

          For larger yachts, typically over 50 feet, the Paragon Senior water pressure systems have long been the standard for performance and efficiency. This industrial-grade rotary pump design is suitable for fresh or saltwater operation, is self-priming (to 10-feet), and provides flow up to 11 GPM in the 35 - 50 PSI pressure range.

          Features:

          • Intended for yachts over 50' in length
          • Complies with NSF-61 low-lead standard
          • Powerful 2-stage rotary pump
          • Pressure gauge and 1" strainer included
          • Patented Noflo™ dry-tank protection suspends pump operation if the water supply is interrupted
          • Use with PST-2, 3, 4, or 5 pressure storage tank (order separately)
          • AC models include a mechanical, industrial-grade, field-adjustable pressure switch, and are not UL listed or CE recognized. These AC pumps are only suitable for use aboard diesel powered vessels
          • DC models have a sealed, ignition-protected pressure switch located at the pressure tank, are UL listed, CE recognized, and operate in the 30-50 PSI pressure range. They are appropriate for either gas or diesel powered vessels

          Specifications:

          • Yacht Size: Over 50'
          • Operating Pressure range: 30 - 50 PSI
          • Max GPM: 11
          • Self Priming: Yes
          • Inlet/Outlet Ports: 1"
          • Weight: 38 lbs
          • Overall Dimensions for DC Units (L x W x H): 20 5/16" x 6 1/2" x 10 3/8"
          • Overall Dimensions for AC Units (L x W x H): 9 1/8" x 9 7/8" x 10 3/8"
          • Breaker:
            • 12V DC: 50A
            • 24V DC: 30A
            • 115V AC: 10A
            • 230V AC: 5A

          Note: PSR-AC pumps are not UL/CE listed. Do not use on gasoline-powered vessels or where combustible fumes may be present.

          Note: Storage tank is required for water pressure system application. Order Groco PST-2, 3, 4 or 5 tank separately

          Paragon Senior Water Pressure Systems Installation, Operation, and Maintenance Guide
