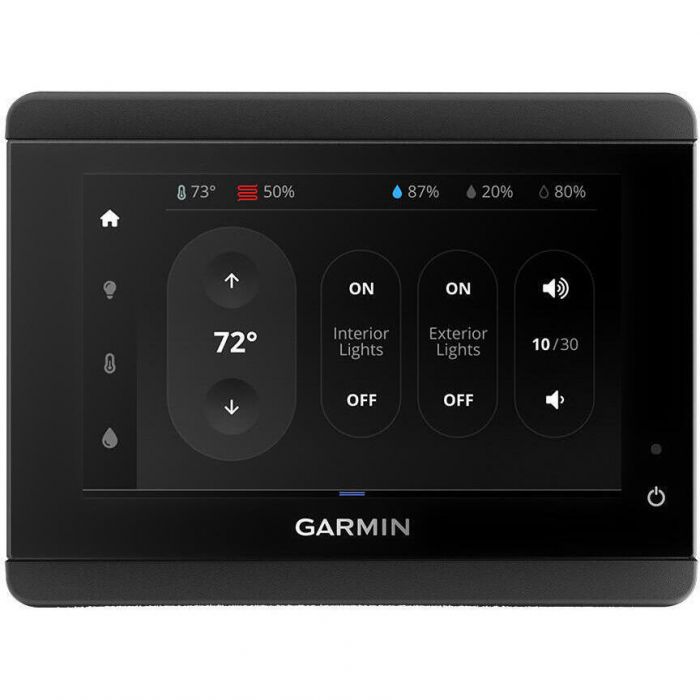

Garmin TD 50 Touchscreen Display - 010-02139-10

Add more access to your boat systems' monitoring and control. Extra touchscreens let you easily connect with your boat systems, sensors and media for supplementary control, switching and data monitoring from virtually any suitable mounting location on board.

Features:

• View engine and systems data, or adjust settings for lights, climate control, entertainment, security sensors, autopilots and more
• Compatible with NMEA 2000, third-party OneHelm systems, EmpirBus and the Garmin Marine Network
• Touchscreen control through an easy graphical interface lets you access multiple switching and monitoring functions for electrical components throughout your boat
• Slimline design, minimal footprint and flat- or flush-mounting options enable installation in virtually any onboard location where auxiliary system access is needed
• Water-rated to IPX7 standards, the TD 50 touchscreen is built for harsh marine environments

Specifications:

• Dimensions: 4.1" x 4.5" x 2.0" (10.5 x 14.0 x 5.1 cm)
• Weight: 11.6 oz. (328 g)
• Temperature range: 5° to 131° F (-15° to 55° C)
• Compass-safe distance: 7.9" (20 cm)
• Case material: Fully-gasketed polycarbonate
• Lens material: Glass with anti-glare and anti-fingerprint finish
• Water rating: IPX7
• Brightness: 1200 cd/m2 (NIT)
• Power usage: 5.9W max
• NMEA 2000 input voltage: 9 to 16V DC
• NMEA 2000 LEN @ 9V DC: 13 (650 mA)
