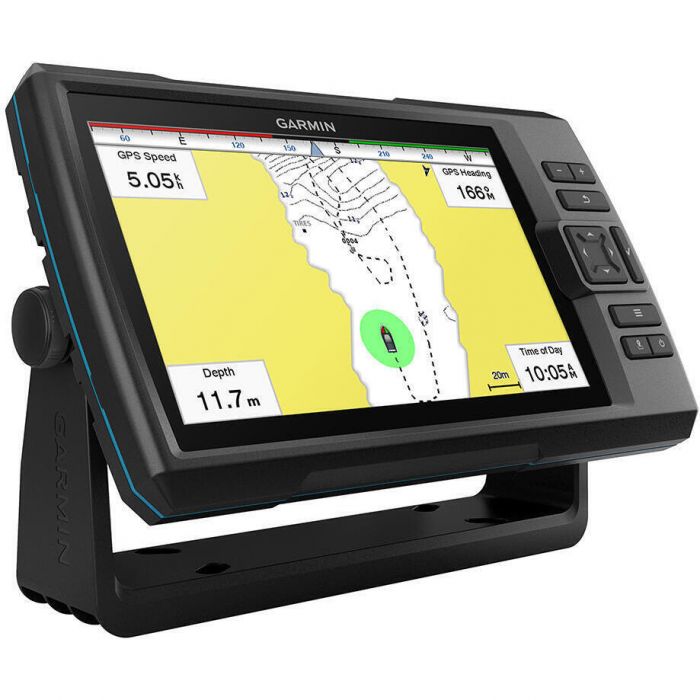

Garmin STRIKER Vivid 9sv Fishfinder

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 9sv fishfinder.

Fish Finder Features:

• Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 9" fishfinder
• This fishfinder supports 3 types of sonar: Garmin CHIRP traditional sonar plus CHIRP ClearVu and CHIRP SideVu scanning sonars with a compatible transducer (sold separately)
• To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back
• Plan and create routes and view your boat's speed on your fishfinder using high-sensitivity GPS
• Nobody knows the waters you fish better than you. With the STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1' contours
• Connect to the ActiveCaptain app to transfer waypoints, receive smart notifications and access the Garmin Quickdraw Community
• The STRIKER Vivid 9sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable

Fish Finder Specifications:

Specifications:

• Dimensions: 11.1" x 6.5" x 2.4" (28.2 x 16.5 x 6.0 cm)
• Display Resolution: 800 x 480 pixels
• Display Type: WVGA color
• Weight: 2.4 lbs (1.1 kg)
• Waterproof: IPX7
• Bottom Lock (Shows Return From The Bottom Up)
• Water Temperature Log
• Split-Screen Zoom
• Fish Symbol Id (Helps Identify Fish Targets)
• Autogain Technology (Minimizes Clutter; Maximizes Targets)
• Adjustable Depth Line (Measures Depth Of Underwater Objects)
• A-Scope (Real Time Display Of Fish Passing Through Transducer Beam)
• Water Temperature Sensor Included
• Navigation Routes: 100
• Transmit Power: 500 W (RMS)
• Sonar Frequency:
  • Traditional: 50/77/200 kHz CHIRP (mid and high)
  • ClearVu and SideVu 260/455/800 kHz

Optional GT42HW-TM Transducer Specifications:

• Frequency: CHIRP High Wide (150-240 kHz); ClearVu CHIRP 455 kHz (425-485 kHz) and 800 kHz (790-850 kHz)
• Power:
  • Traditional 250W
  • ClearV/SideVu 350W
• Beamwidth:
  • Traditional: 24°-16°
  • ClearV/SideVu: 2.0°x50° @ 455 kHz and 1.0°x30° @ 800 kHz
• Maximum Depth:
  • Traditional: 800 ft
  • ClearVu: 500 ft
  • SideVu: 500 ft
• Cable Length: 20 ft
• Depth/Speed/Temperature: Depth and Temperature
• Number Of Pins: 12-pin
• Supported Deadrise/Transom Angles: 0°-70° degree transom

Owner's Manual (5.45 MB)
