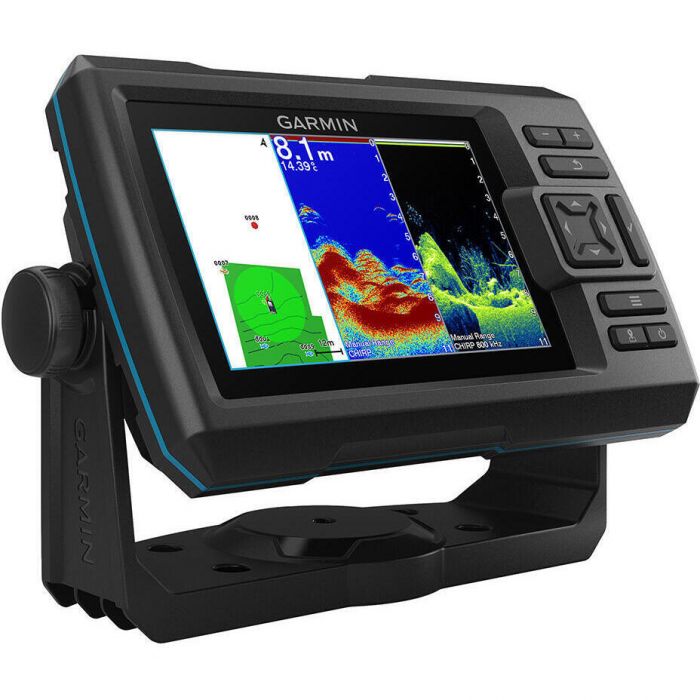

Garmin STRIKER Vivid 5cv Fishfinder

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 5cv fishfinder.

• Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 5" fishfinder
• This fishfinder supports 2 types of sonar: Garmin CHIRP traditional sonar and CHIRP ClearVu scanning sonar with a compatible transducer (optional or sold seperarately)
• To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back
• Plan and create routes and view your boat's speed on your fishfinder using high-sensitivity GPS
• Nobody knows the waters you fish better than you. With the STRIKER Vivid 5cv fishfinder, you can store up to 2 million acres of maps with 1' contours
• The STRIKER Vivid 5cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable

Fish Finder Specifications:

• Dimensions: 7.4'' x 4.5'' x 2.1'' (18.8 x 11.6 x 5.4 cm)
• Display Resolution: 800 x 480 pixels
• Display Type: WVGA color
• Weight: 1.0 lb (0.5 kg)
• Waterproof: IPX7
• Split-Screen Zoom
• Fish Symbol Id (Helps Identify Fish Targets)
• Autogain Technology (Minimizes Clutter; Maximizes Targets)
• Adjustable Depth Line (Measures Depth Of Underwater Objects)
• A-Scope (Real Time Display Of Fish Passing Through Transducer Beam)
• Water Temperature Sensor Included
• Navigation Routes: 100
• Bottom Lock (Shows Return From The Bottom Up)
• Water Temperature Log
• Transmit Power: 500 W (RMS)
• One 4-pin transducer port
• Quickdraw Contours
• Integrated GPS
• Mark Waypoints
• Course over Ground (COG)
• Current draw @ 12V: 0.40A
• Waypoints: 5,000
• Track Log: 50,000 points; 50 saved tracks
• Routes: 100
• Sonar Frequency:
  • Traditional: 50/77/200 kHz
  • CHIRP (mid and high)
  • ClearVu 260/455/800 kHz

Optional GT20-TM Transducer Specifications:

• Frequency: Traditional 77/200; ClearVu CHIRP 455 kHz (435-475 kHz) and 800kHz (800-840 kHz)
• Power: Traditional/ClearVu 500W
• Beamwidth: Traditional: 45°/15°
• ClearVu: 2.5°x53°@ 455 kHz and 1.6°x29° @ 800 kHz
• MaximumDepth: Traditional: 1,900 ft.; ClearVu: 750'
• CableLength: 20'
• Measures Depth and Temperature
• Number of Pins: 4-pin
• SupportedDeadrise/TransomAngles: 0°-70° degree transom

Owner's Manual (5.45 MB)
