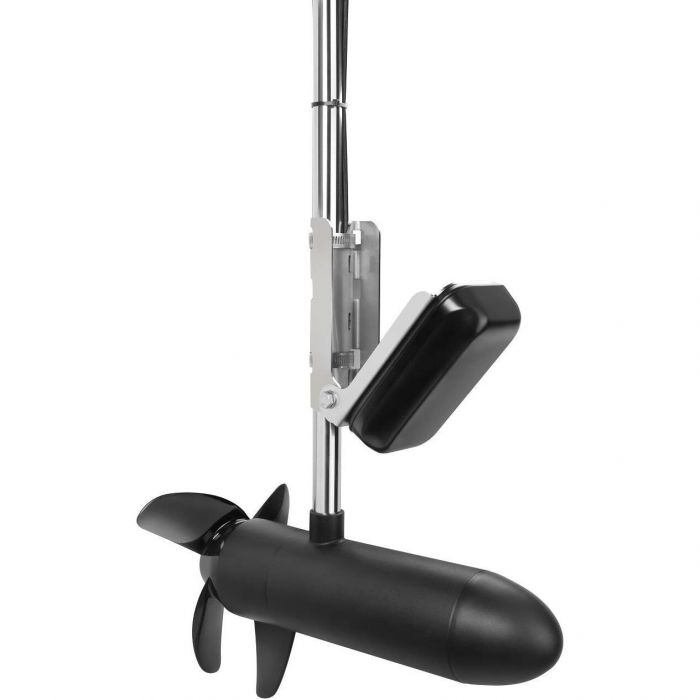

Garmin Panoptix PS31 Forward Transducer - 010-01284-01

With one Panoptix Forward transducer, you can actually see the bottom, structure and fish swimming around in front of your boat - in real time; even while stationary. You get 2 impressive views: LiveVu Forward and RealVu 3-D Forward.

Features:

• LiveVu Forward: Updates the entire view with a single ping and has a more "live video" look, providing real-time moving sonar images
  • See fish swimming toward or away from the boat
  • See small baitfish and large target fish swimming around, even your lure as you reel it in
• RealVu 3-D Forward: Updates a slice of the 3-D volume with each ping and take 1 to 4 seconds to update the entire volume. It shows the bottom and fish in the water column coming toward the boat. It sweeps forward, and the history on screen is only one sweep

Specifications:

• Dimensions: 3.6" x 1.7" x 6.7" (9.1 x 4.2 x 17 cm)
• Weight: 1.8 lbs (800 g)
• Waterproof: IPX7
• Transducer beamwidth: 120° x 60°
• Transducer cable length: 15', power; 30', Ethernet
• Temperature range: 0° C to 40° C
• Power input: 10-35V
• Power usage: 10W
• Fuse: 4A
• Frequency: 417 kHz
• Transmit power: 144W
• Maximum depth: 300'
• Sonar type: Multi-beam phased array
• Garmin marine network ports: 1 (large RJ45)

Included:

• PS31 forward looking transducer (integrated 30' network cable, 15' power cable)
• Trolling motor mount
• Transom mount
• Split ring RJ45 connector
• Documentation

Installation Instructions
