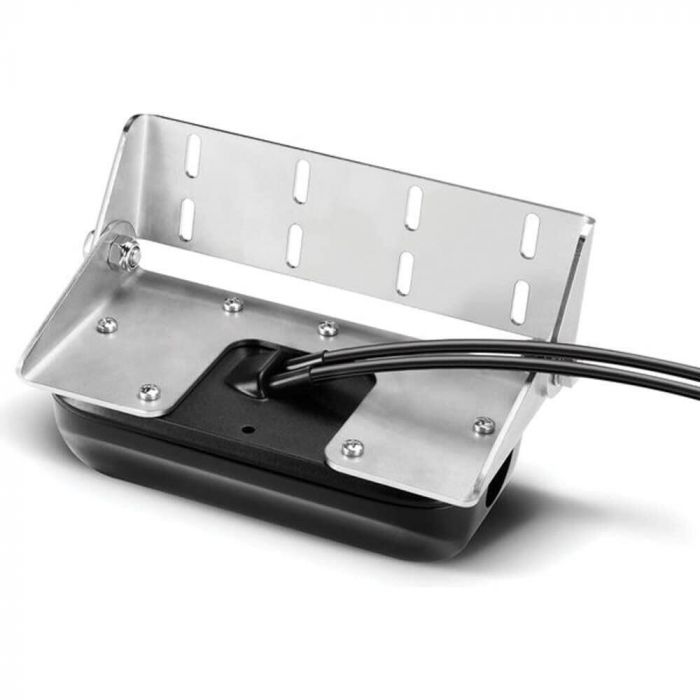

Garmin Panoptix PS30 Down Transducer - 010-01284-00

With the Panoptix Down transducer, you can actually see fish and bait swimming around under your boat - in real time; even while stationary. You get 3 remarkable views: LiveVu Down, RealVu 3-D Down and RealVu 3-D Historical.

Features:

• LiveVu Down: Provides real-time moving sonar images
  • See fish swimming toward or away from the boat
  • See small baitfish and large target fish swimming around, even your lure
• RealVu 3-D Down: Allows your boat to be stationary and still see things in 3-D around your boat - shows history of only 1 sweep
• RealVu 3-D Historical: Used for finding fish while your boat is moving. This shows the entire water column you have passed over in 3-D, from the bottom of the surface and all of the fish in between

Specifications:

• Dimensions: 3.6" x 1.7" x 6.7" (9.1 x 4.2 x 17 cm)
• Weight: 1.8 lbs (800 g)
• Waterproof: IPX7
• Transducer beamwidth: 120° x 60°
• Transducer cable length: 15', power; 30', Ethernet
• Temperature range: 0° C to 40° C
• Power input: 10-35V
• Power usage: 10W
• Fuse: 4A
• Frequency: 417 kHz
• Transmit power: 144W
• Maximum depth: 300'
• Sonar type: Multi-beam phased array
• Garmin marine network ports: 1 (large RJ45)

Included:

• PS30 down looking transducer (integrated 30' network cable, 15' power cable)
• Transom mount
• Split ring RJ45 connector
• Documentation
