Garmin Panoptix LiveScope System with Thru-Hull Transducer - 010-02233-00

Garmin's Panoptix LiveScope System with Thru-Hull Transducer features some of the most amazing sonar technology ever created. You've never fished like this before, with a view below your boat so clear you even see your lure as you retrieve it.

Features:

• Licescrope™ Forward Sonar - Scout and fish out ahead of your cast with live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat
• Not only can you see crystal-clear imagery around your boat, you can also see at a distance of up to 200' in both modes - even while your boat is stationary
• Attitude Heading Reference System stabilizes the sonar view on your chartplotter screen, even in rough conditions
• Seamlessly integrate this system with your compatible Garmin chartplotter using the simple plug-and-play Garmin Marine Network connector

Specifications:

• Waterproof: IPX7
• Operating temperature range:
  • GLS 10 Black Box: -15 C to 70 C
  • Panoptix LiveScope LVS12 transducer: 0 C to 40 C
• Power input: 10-32V
• Power usage: 21W typical, 58W max
• Fuse: 7.5A
• Frequency: 530 - 1,100 kHz
• Transmit power: 500W
• Maximum depth: Forward: 200' (61 m)
• Garmin marine network ports: 1 (small connector)
• Beamwidth: 20° x 135°
• Transducer cable length: 20'
• Transducer number of pins: 21

Included:

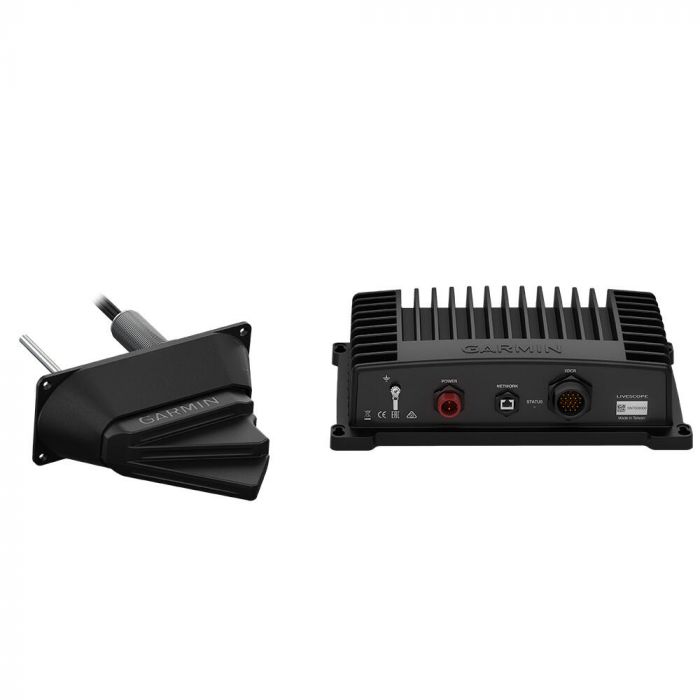

• LiveScope GLS 10 sonar black box
• Panoptix LVS32 transducer
• Thru-hull mount hardware
• Power cable
• 2 m Garmin marine network cable, small connector
• Network adapter cable
• Mounting hardware
• Documentation

Installation Instructions (2.49 MB)
