Description
The Garmin OnDeck Relay Switch lets you control onboard systems remotely through the OnDeck Hub, adding convenience and flexibility to vessel management. Designed for reliable operation, you can add up to five switches to stay in control of key functions from anywhere on your boat.

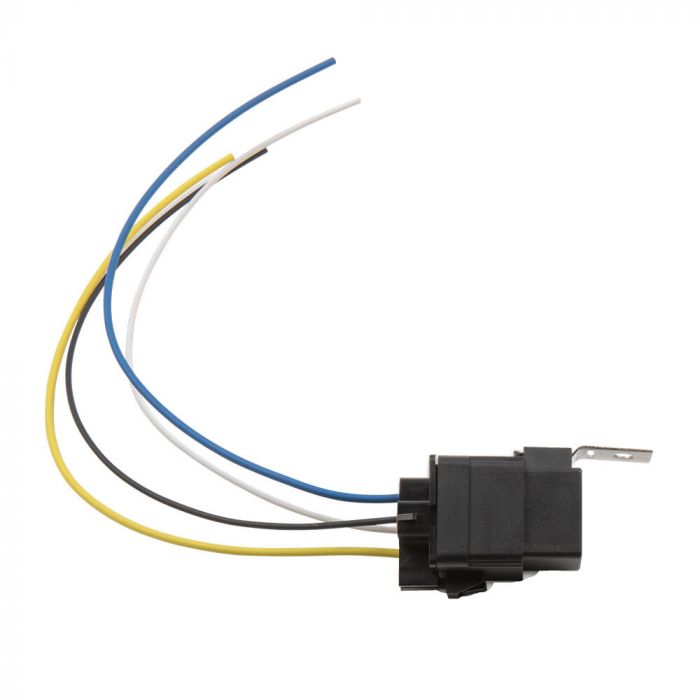

Garmin OnDeck Relay Switch Item # 1009968
Description
Control your vessel remotely using the OnDeck™ Hub and a relay switch. Add up to five switches to your OnDeck Hub to stay in control.
Features:
- Verify that the input power for your OnDeck Hub operates between 10V DC and 15.6V DC to ensure compatibility with your system (model 010-13009-01)
- Verify that the input power for your OnDeck Hub operates between 15.6V DC and 31.2V DC to ensure compatibility with your system (model 010-13009-07)
Model 010-13009-01 Specifications:
- Control voltage (coil): 7.8 to 15.6V DC
- Load power min. (contacts): 0.1A
- Load power max. (contacts):
- Up to 15A @ 10 to 16V DC
- Up to 9A @ 20 to 32V DC
Model 010-13009-07 Specifications:
- Control voltage (coil): 15.6 to 31.2V DC
- Load power min. (contacts): 0.1A
- Load power max. (contacts):
- Up to 9A @ 10 to 16V DC
- Up to 8A @ 20 to 32V DC
