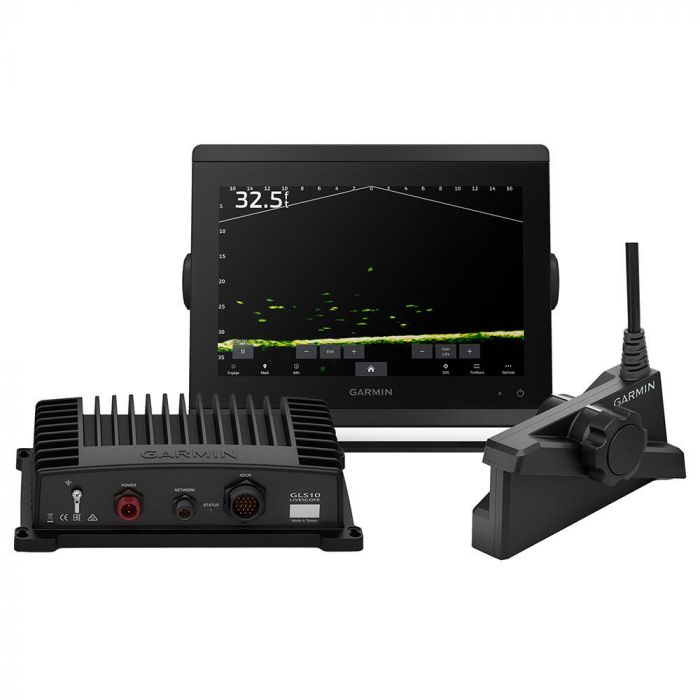

Garmin LiveScope Plus Ice House System - 10" - 020-00332-00

Upgrade your on-ice experience with the GPSMAP® 8610xsv chartplotter, LiveScope Plus System and everything else you'll need to catch more fish.

Features:

• 10" full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display
• GLS™ 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible - even in freezing conditions
• Included 0 deg. pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique
• Garmin Navionics+ mapping - get coverage for more than 25,000 lakes with preloaded coastal and inland mapping
• Create custom pages that combine sonar and maps on your display
• Built-in sonar - see below and around your boat with built-in sonar capabilities, whether you're on the ice or the open water

Specifications:

• Dimensions: 10.25" x 8.0625" x 2.95" (25.9 x 20.5 x 7.5 cm)
• Weight: 15.4 lbs (7.0 kg)
• Waterproof: IPX7
• Display type: WUXGA, IPS
• Display size: 8.6" x 5.4"; 10.1" diagonal (21.8 x 13.7 cm; 25.7 cm diagonal)
• Display resolution: 1920 x 1200 pixels
• Input: Touchscreen
• Accepts data cards: 2 microSD™ cards
• Waypoints: 5000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100
• Bag size: None
• Included transducer: LiveScope™ Plus System with LVS34-IF
• Transducer holding feature: Pole mount
• Sonar power output: 1 kW
• Traditional sonar (dual frequency/beam): Built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
• ClearVu: Built-in 260/455/800/1000/1200 kHz
• SideVu: Built-in 260/455/800/1000/1200 kHz

Included:

• GPSMAP 8610xsv with preloaded Garmin Navionics+™ Coastal Charts and Inland Mapping for U.S. or Canada
• LiveScope Plus LVS34-IF transducer
• GLS™ 10 black box sonar module with power and network cables
• Ice fishing pole mount
• Documentation

GPSMAP 8000/9000 Series Owner's Manual (3.2 MB)

GPSMAP 8X10/8X12/8X16 Installation Instructions
