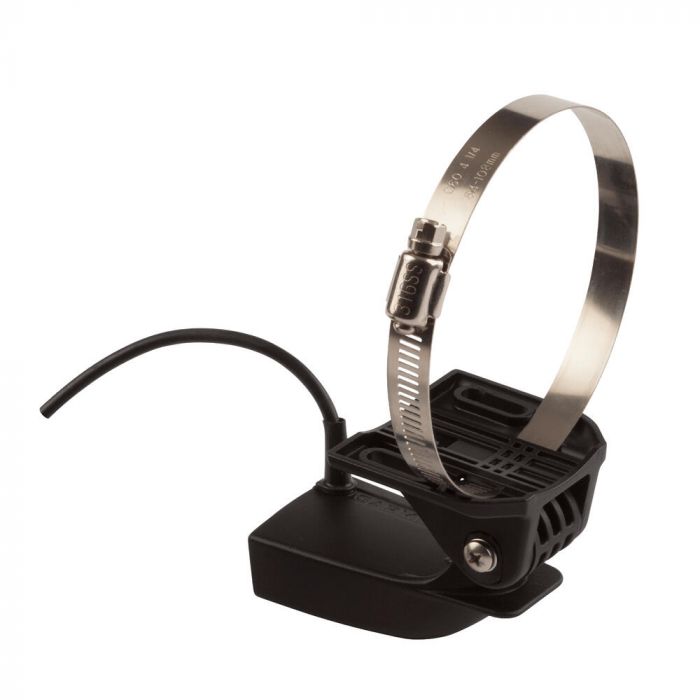

Garmin GT8HW-TM Plastic Transom Mount/Trolling Motor Transducer

The GT8HW-TM transducer is perfect for shallow water fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation. The wider beam width - up to 24 deg. beam angle - provides a larger coverage area in the water.

Features:

• 8-pin transducer with high wide band CHIRP traditional sonar (145-230 kHz) and a power rating of 250W
• May be mounted on the transom or a trolling motor

Specifications:

• Frequency: CHIRP High Wide (145-230 kHz)
• Power: 250W
• Beamwidth: 24°/16°
• Maximum depth: 800'
• Cable length: 20'
• Transducer depth/speed/temperature: Depth and temperature
• Number of pins: 8-pin
• Supported deadrise/transom angles: 0°-70° transom

Included:

• GT8HW-TM transducer
• Transom mount
• Trolling motor mount
• Mounting hardware
• Documentation

Note: Follow the included installation instructions carefully to avoid damaging your boat.

Installation Instructions
