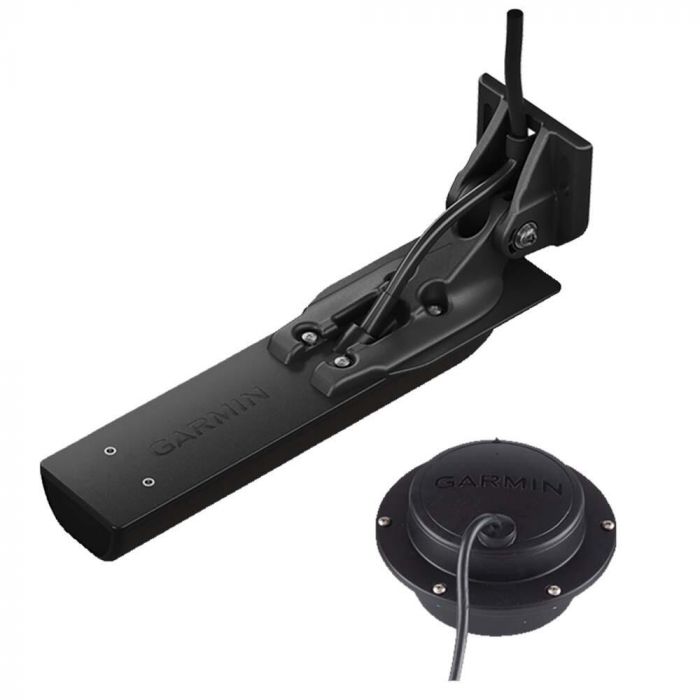

Garmin GT36-TM & GT15M-IH Transducer Bundle - 010-02536-10
Item: #1000556 | Part Number: 010-02536-10$547.99
Description
The Garmin GT36-TM & GT15M-IH Transducer Bundle delivers versatile, high-definition sonar performance for serious coastal and offshore anglers. Combining CHIRP traditional, ClearVu, and SideVu scanning sonar, it provides crisp fish arches, excellent target separation, and detailed views of structure and bait both below and beside the boat.
Garmin GT36-TM & GT15M-IH Transducer Bundle - 010-02536-10 Item # 1000556
Description
Garmin's GT36-TM & GT15M-IH Transducer Bundle is perfect for the coastal and offshore fisherman who want CHIRP traditional sonar and CHIRP ClearVu and CHIRP SideVu scanning sonar. This bundle consistently displays clear and crisp fish arches with superior target separation as well as clear definition of objects, structure and fish that pass below and to the side of the boat.
Features:
- GT36-TM transom mount transducer offers ultimate versatility with Ultra High-Definition ClearVu and SideVu scanning sonars for crystal-clear images of fish and structure
- Maintains accurate depth readings at high speed - intended for boats with fiberglass hulls, and include the y-cable required for installing both transducers
- GT15M-IH in-hull transducer, featuring mid-band CHIRP traditional sonar, if you have a boat with a fiberglass hull and a deadrise from 0° to 25°
GT36-TM Specifications:
- Frequency: ClearVu/SideVu 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
- Power: 500W
- Beamwidth:
- ClearVu: 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
- SideVu: 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
- Maximum depth:
- ClearVu: 400'
- SideVu: 500'
- Cable length: 25'
- Transducer depth/speed/temperature: Depth and temperature
- Number of pins: 12-pin
- Supported deadrise/transom angles: 0-70 deg. transom
GT15M-IH Specifications:
- Frequency: CHIRP Mid-band (85-165 kHz)
- Power: 600W
- Beamwidth: 24°-13°
- Maximum depth: 1,900' freshwater
- Cable length: 20'
- Transducer depth/speed/temperature: Depth
- Number of pins: 8-pin
- Supported deadrise/transom angles: 0-25 deg. deadrise
Included:
- GT36UHD-TM transducer with 12-pin connector
- 25' transducer cable
- Transom mount
- Trolling motor mount
- Mounting hardware
- GT15M-IH transducer with 8-pin connector
- 20' transducer cable
- 4 plastic in-hull tanks
