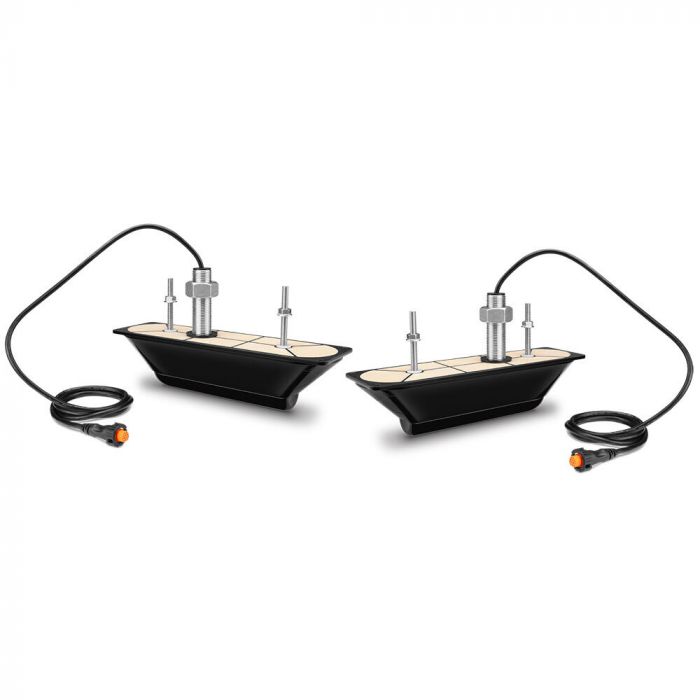

Garmin GT34UHD-THP Ultra HD Thru-Hull Transducer (2-Pack) - 010-12776-11

Add stunningly clear Ultra High-Definition ClearVu and Ultra High-Definition SideVu scanning sonar images to your compatible chartplotter. Plug directly into your 8600xsv or ECHOMAP Ultra series chartplotter or use the GCV 20 sonar module to display on other compatible chartplotters.

Features:

• Includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz)
• ClearVu scanning provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element
• SideVu scanning - see stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity

Specifications:

• Frequency: ClearVu 800 kHz (760-880 kHz); SideVu 1,200 kHz (1,060-1,170 kHz)
• Power: 500W
• Beamwidth:
  • ClearVu: 0.76° x 46° @ 800 kHz
  • SideVu: 0.44° x 55° @ 1,200 kHz
• Maximum depth:
  • ClearVu: 125' to each side
  • SideVu: 250' total, at a maximum depth of 30'
• Cable length: 20'
• Transducer depth/speed/temperature: Depth and temperature
• Number of pins: 12-pin
• Supported deadrise/transom angles: Up to 25° deadrise
