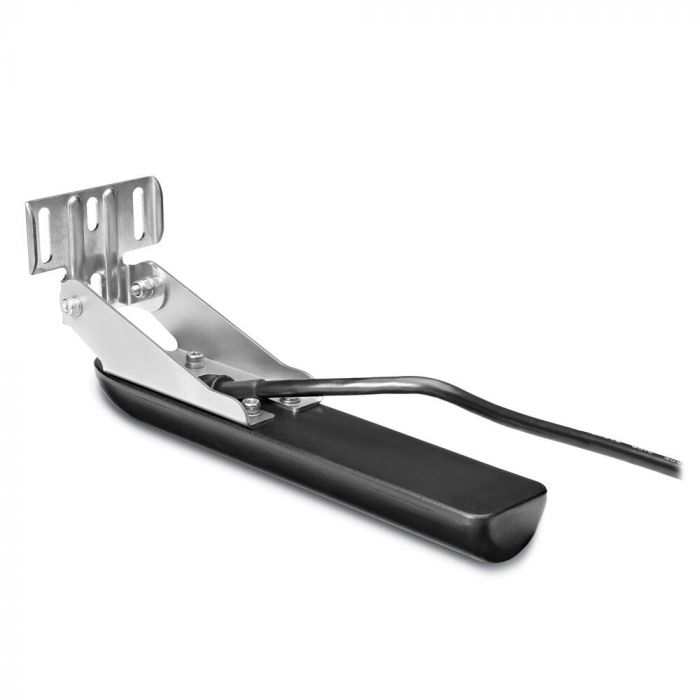

Garmin GT30-TM DownVu/SideVu Transom Mount Transducer

Perfect for the shallow water fisherman who want CHIRP ClearVu and CHIRP SideVu scanning sonar, this transom mount transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.

Features:

• Built-in fast response temperature sensor
• Power rating of 500W per element (1,500W total)
• Depth of 750' (ClearVu) and 500' left and right (SideVu)
• Pairs with a GCV™ 10 black box sonar (sold separately)
• Transducer kit comes with installation instructions - follow the instructions carefully to avoid damaging your boat

Specifications:

• Frequency: ClearVu/SideVu 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
• Power: 500W
• Beamwidth:
  • ClearVu: 1.4° x 53° @ 455 kHz and 0.8° x 30° @ 800 kHz
  • SideVu: 1.1° x 53° @ 455 kHZ and 0.7° x 30° @ 800 kHz
• Maximum depth:
  • ClearVu: 750'
  • SideVu: 500'
• Cable length: 20'
• Transducer depth/speed/temperature: Depth and temperature
• Number of pins: 12-pin
• Supported deadrise/transom angles: 0-70 deg. transom
