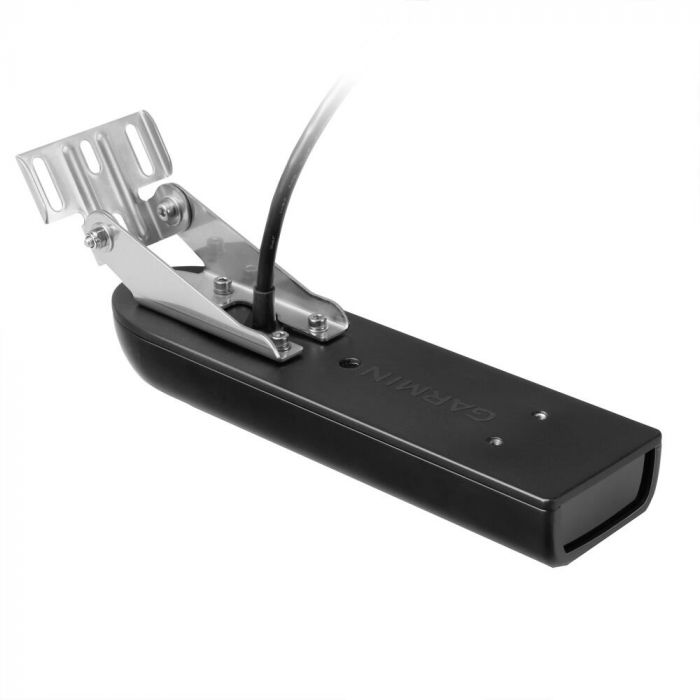

Garmin GT23M-TM Transom Mount Transducer - 010-12404-00

The GT23M-TM transducer is perfect for coastal and offshore anglers who want CHIRP traditional sonar and CHIRP ClearVu scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

Features:

• Transom mount transducer perfect for coastal and offshore anglers
• Mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600W
• CHIRP ClearVu (260/455 kHz) element has a power rating of 500W
• Displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat

Specifications:

• Transducer frequency: CHIRP Mid-band (80-160 kHz); ClearVu CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
• Transducer power: CHIRP traditional 600W; ClearVu 500W
• Transducer beamwidth:
  • Traditional: 24°-13°
  • ClearVu: 2.0°x51° @ 260 kHz, 1.4°x29° @ 455 kHz
• Transducer maximum depth:
  • Traditional: 1,800'
  • ClearVu: 1,000'
• Transducer cable length: 30'
• Transducer depth/speed/temperature: Depth and temperature
• Transducer number of pins: 8-pin
• Transducer supported deadrise/transom angles: 0°-70° degree transom

Included:

• GT23M-TM transducer
• Transom mount
• Mounting hardware
• Documentation
