Description
The Garmin GT15M-TM Transom Mount Transducer delivers clear, confident sonar performance for serious anglers. Using mid-band CHIRP technology and 600W power, it provides crisp fish arches, excellent target separation, and detailed bottom definition to depths up to 1,900'. A reliable choice for transom mounting.

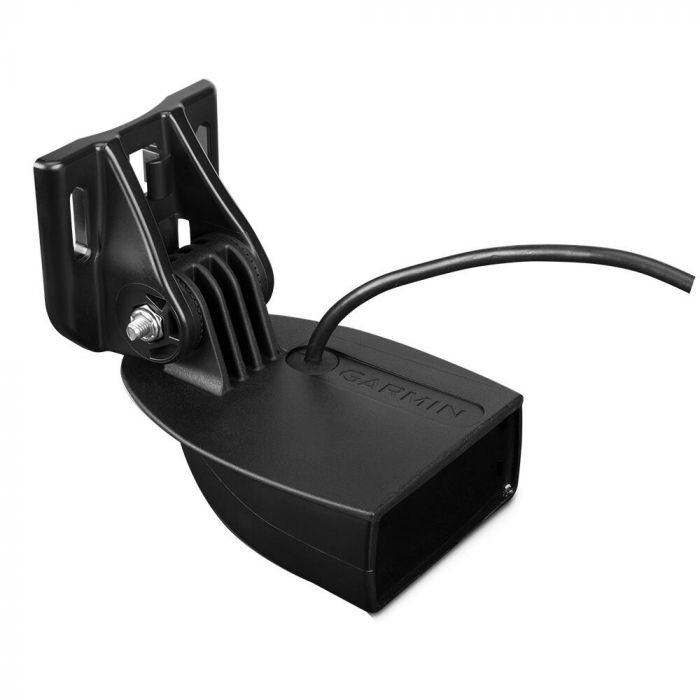

Garmin GT15M-TM Transom Mount Transducer Item # 1000594
Description
The GT15M-TM transducer is perfect for fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation to depth up to 1,900'.
Features:
- 8-pin transducer with mid-band CHIRP traditional sonar (85-165 kHz) and a power rating of 600W
- May be mounted on the transom
Specifications:
- Frequency: CHIRP Mid-band (85-165 kHz)
- Power: 600W
- Beamwidth: 24°/13°
- Maximum depth: 1,900'
- Cable length: 30'
- Transducer depth/speed/temperature: Depth and temperature
- Number of pins: 8-pin
- Supported deadrise/transom angles: 0°-70° transom
Included:
- GT15M-TM transducer
- Transom mount
- Documentation
Note: Follow the included installation instructions carefully to avoid damaging your boat.
