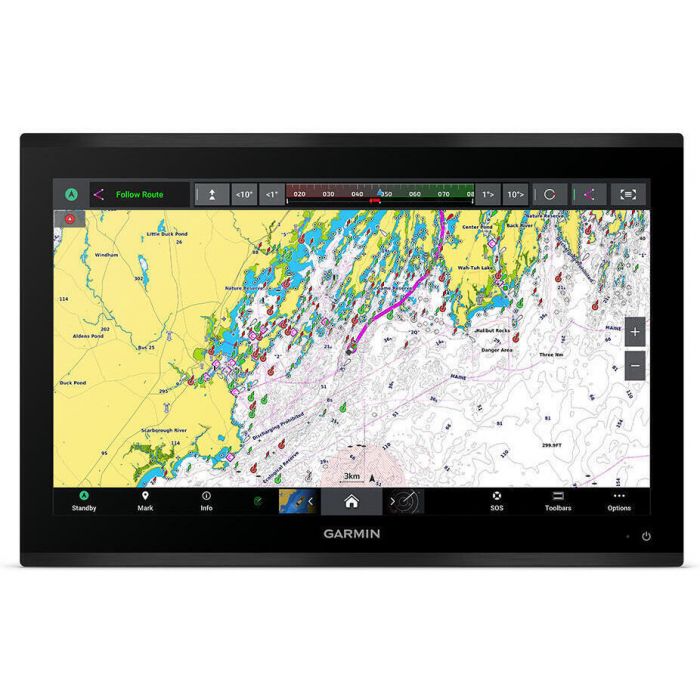

Garmin GPSMAP 9222 Chartplotter with Garmin Navionics+

See your charts, view entertainment and more all in 4K with the GPSMAP 9222 Chartplotter. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials plus enhanced connectivity and speed.

Features:

• Edge-to-edge design provides a seamless and luxurious modern look
• Processing power is 7x faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+™ routes with lightning speed
• Build extensive networks with multiple chartplotters, cameras, radars and sonars - and enjoy 10x faster networking speeds with minimal lag
• Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network
• Fish in stunning high definition. Hook up to any of our sonar modules, and view sonar targets on the 4K display (transducers sold separately)
• Take command through digital system integrations to monitor, automate and control your vessel
• Uses the NMEA 2000® and NMEA 0183 networks to connect to your compatible accessories
• Garmin Navionics+™ included - provides offshore, coastal and inland water charts for the U.S. and coastal water charts for Canada

Specifications:

• Dimensions: 20.8" x 13.6" x 2.7" (52.9 x 34.6 x 6.9 cm)
• Weight: 17.55 lbs (7.96 kg)
• Waterproof: IPX7
• Display type: 4K, IPS
• Display size: 18.7" x 10.5" x 21.5" diagonal (47.5 x 26.7 x 54.5 cm diagonal)
• Display resolution: 3840 x 2160 pixels
• Mounting options: Flush or flat
• Input: Touchscreen
• Accepts data cards: 2 SD Cards
• Waypoints: 5000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100
• Power input: 10 to 35V DC
• Typical current draw @ 12V DC: 5.2A
• Maximum current draw @ 12V DC: 5.7A
• Maximum power usage @ 10V DC: 68W
• NMEA 2000® ports: 1
• NMEA 0183 input ports : 4
• NMEA 0183 output ports: 2
• Video input ports: 1 (BNC composite); 2 HDMI (HDCP compliant)
• Video output ports: 1 HDMI
• J1939 ports: 1
• Garmin BlueNet network ports: 4
• USB ports: 2x USB-C

Included:

• GPSMAP 9222 chartplotter
• Trim snap cover
• Protective cover
• Flush mount hardware
• Power cable
• GPS 24xd NMEA 2000® (with pole mount, flush mount and under deck mount adapters)
• NMEA 2000 backbone/drop cable (2 m)
• NMEA 2000 power cable
• NMEA 2000 T-connector and terminator kit
• Documentation

Installation Instructions (1.77 MB)
