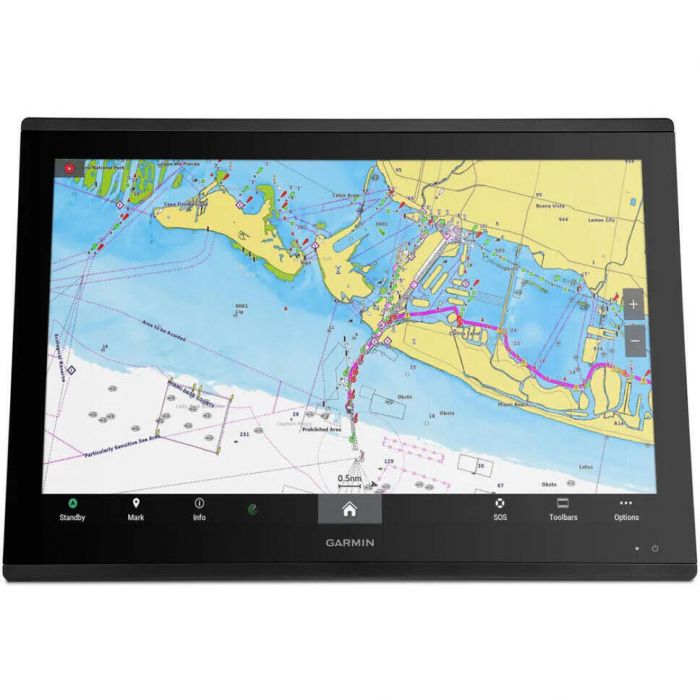

Garmin GPSMAP 8424 Non-Sonar Chartplotter with Worldwide Basemap - 010-01512-00

Serious anglers, cruisers, sailors and sail racers demand serious equipment. This easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

Features:

• Offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses
• Compatible with the GRID 20 remote (not included) which provides intuitive remote access and control of your entire Garmin marine system
• Pair your chartplotter with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time
• View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more
• Use the polar table to see key data, including how fast you should go at a certain wind angle and speed so you know whether you need to adjust sail trim
• If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radar and IP cameras among them
• Connect to autopilots, digital switching, weather, your FUSION-Link audio system, media, VHF, AIS and more from one screen
• Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Helm, Garmin Quickdraw Community data and more
• Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls
• Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more
• Pre-loaded with Garmin Worldwide Basemap

Specifications:

• Dimensions: 22.8" x 16.1" x 2.8" (60.0 x 41.0 x 7.1 cm)
• Weight: 18.95 lbs (8.60 kg)
• Waterproof: IPX7
• Display type: FHD, IPS
• Display size: 20.4" x 12.8"; 24.0" diagonal (51.8 x 32.5 cm; 61.0 cm diagonal)
• Display resolution: 1920 x 1200 pixels
• Mounting options: Flat or flush
• Accepts data cards: 2 microSD cards
• Waypoints: 5,000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100
• Power input: 10 to 35V DC
• Typical current draw @ 12V DC: 6.1A
• Maximum current draw @ 12V DC: 7.6A
• Maximum power usage @ 10V DC: 87W
• Traditional sonar (dual frequency/beam): Yes (with external black box, sold separately)
• ClearVu: Yes (with GCV™ black box, sold separately)
• SideVu: Yes (with GCV™ black box, sold separately)
• NMEA 2000® ports: 1
• Connections NMEA 0183 input ports: 4
• NMEA 0183 output (TX) ports: 2
• Video input ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
• Video output ports: 1 HDMI
• J1939 ports: 1
• Garmin marine network ports: 4

Included:

• GPSMAP 8424
• Trim piece snap covers
• GPS 24xd NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
• Protective cover
• Flush mount hardware
• Power cable
• NMEA 2000 2 m backbone/drop cable
• NMEA 2000 6 m backbone cable
• NMEA 2000 power cable
• NMEA 2000 T-connector & terminator kit
• Documentation

Owner's Manual
