Item #956191

Garmin GPSMAP 743xsv Sonar Chartplotter with Navionics+ - 010-02365-61

$1,299.99
Want an email once available?
Buy with
Need Help? Speak to an Outfitting Specialist [email protected] 1-800-262-8727 MON-FRI 9AM-5:30PM SAT 9AM-5PM

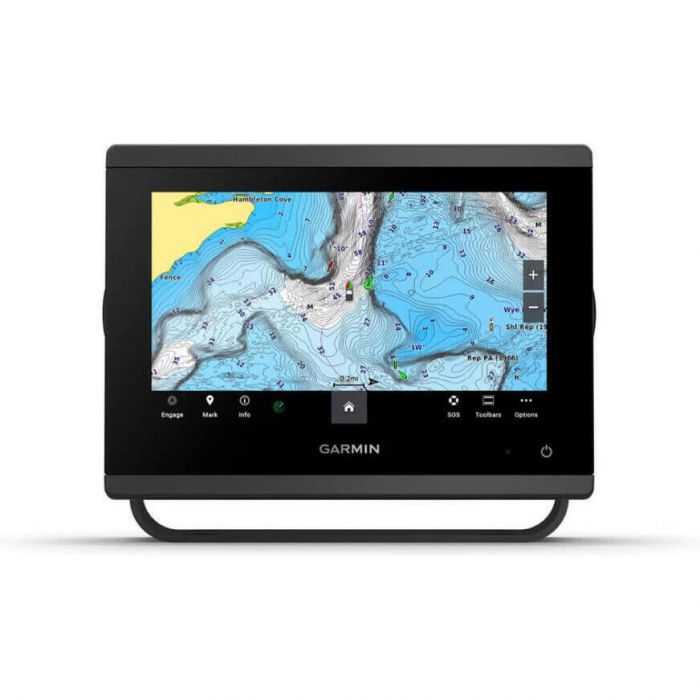

Image of : Garmin GPSMAP 743xsv Sonar Chartplotter with Navionics+ - 010-02365-61 Garmin GPSMAP 743xsv Sonar Chartplotter with Navionics+ - 010-02365-61 Item # 956191

Description

With its sleek design, powerful processing and upgraded IPS display, this advanced chartplotter integrates seamlessly into your Garmin marine system.

Features:

  • Get built-in Ultra High-Definition SideVu and ClearVu scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure
  • With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint
  • New higher-resolution IPS displays offer improved sunlight readability and visibility from any angle
  • Experience unparalleled coverage and detail with built-in Garmin Navionics+ or BlueChart/LakeVu G3
  • View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more
  • Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim
  • If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them
  • Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen
  • Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature and more
  • Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines

Specifications:

  • Dimensions: 7.6" x 5.5" x 2.9" (19.2 x 14.0 x 7.4 cm)
  • Input: Touchscreen
  • Display Size: 6.1" x 3.5"; 7.0" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal)
  • Display Resolution: 1024 x 600 pixels
  • Display Type: WSVGA
  • Weight: 2.8 lbs (1.3 kg)
  • Waterproof: IPX7
  • Smart Mode Compatible
  • AIS
  • DSC
  • Supports Fusion-Link Compatible Radios
  • GSD Black Box Sonar Support
  • GCV Black Box Sonar Support
  • Activecaptain Compatible: yes
  • Grid (Garmin Remote Input Device) Compatible
  • Wireless Remote Compatible
  • Sailing Features
  • Spoken Audio Alerts
  • Onehelm Support
  • Sensors:
    • Has Built-In Receiver
    • Receiver: 10 Hz
    • NMEA 2000 Compatible
    • NMEA 0183 Compatible
    • GPS
    • GLONASS
    • Galileo
    • Supports WAAS
  • Sonar:
    • Displays Sonar
    • Power Output: 1 kW
    • Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
    • Clearvu: built-in 260/455/800/1000/1200 kHz
    • Sidevu: built-in 260/455/800/1000/1200 kHz
    • Panoptix Sonar
    • Livescope
  • Connections:
    • NMEA 2000 Ports: 1
    • Connections NMEA0183 Input Ports: 1
    • NMEA 0183 Input (Tx) Ports: 1
    • Video Input Ports: 1 (BNC composite)
    • J1939 Ports: 1
    • Garmin Marine Network Ports: 1
    • 12-Pin Transducer Ports: 1
    • Usb Ports
    • Bnc External GPS Antenna Port
    • Bluetooth Pairing
    • Ant+ (Connectivity)
    • Garmin Wi-Fi Network (Local Connection)

Owner's Manual
