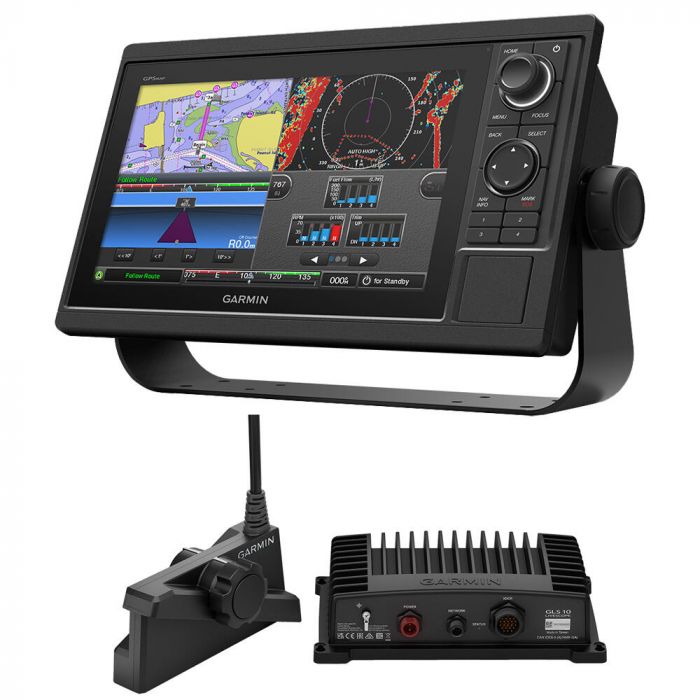

Garmin GPSMAP 1022 LiveScope Plus Bundle with LVS34 Transducer with Worldwide Basemap - 010-01740-00/LVS34

The GPSMAP® 1022 LiveScope Plus Bundle with LVS34 Transducer is designed for cruisers, sailors, and sailing racers who need an advanced all-in-1 solution. It features a large, bright screen chartplotter coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob. The LiveScope Plus System also offers the latest in LiveScope technology with improved resolution, reduced noise, clearer images, and better target separation.

Features:

• 10" color display with keypad interface and multifunction control knob
• High-sensitivity internal 10 Hz GPS and GLONASS receiver
• Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
• Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features
• LiveScope™ Plus System with GLS 10™ & LVS34 transducer
• See images clearly with improved screen clarity, transducer sensitivity, and target separation
• Scan surroundings with sharper images, reduced noise, and fewer sonar artifacts
• Get maximum contrast and clarity in your images with vivid color palettes
• Don't miss a thing with supported Forward, Down, and Perspective modes and the necessary mount

Specifications:

• Dimensions: 12.5" x 7.3" x 2.7" (31.8 x 18.5 x 6.9 cm)
• Weight: 4.1 lbs (1.85 kg)
• Waterproof: IPX7
• Display type: WSVGA, NP
• Display size: 8.8" x 4.9"; 10.1" diagonal (22.4 x 12.5 cm; 25.7 cm)
• Display resolution: 1024 x 600 pixels
• Mounting options: Bail or flush
• Input: Keyed
• Accepts data cards: 2 SD™ cards
• Waypoints: 5,000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100
• Receiver: 10 Hz
• Power input: 10 to 32V DC
• Typical current draw @ 12V DC: 1.9A
• Maximum current draw @ 12V DC: 2.7A
• Maximum power usage @ 10V DC: 32.4W
• Tradtional sonar (dual frequency/beam): Yes
• ClearVu: Yes
• SideVu: Yes
• NMEA 2000® ports: 1
• Connections NMEA0 183 input ports: 1
• NMEA 0183 input (TX) ports: 1
• Video input ports: 1 BNC
• Garmin marine network ports: 2

Included:

• GPSMAP 1022 chartplotter
• Power/data cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 m)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• LiveScope GLS 10 sonar black box
• Panoptix LVS34 transducer
• Perspective mount
• Trolling motor barrel mount
• Shaft mount
• Power cable
• 2 m Garmin Marine Network cable (small connector)
• Network adapter cable
• Documentation
