Garmin GNX Wireless Sail Pack 43 - 010-01616-30
$992.99
Need Help?
Speak to an Outfitting Specialist
[email protected]
1-800-628-8225
MON-SAT 9AM-5PM
Garmin GNX Wireless Sail Pack 43 - 010-01616-30 Item # 956055
Description

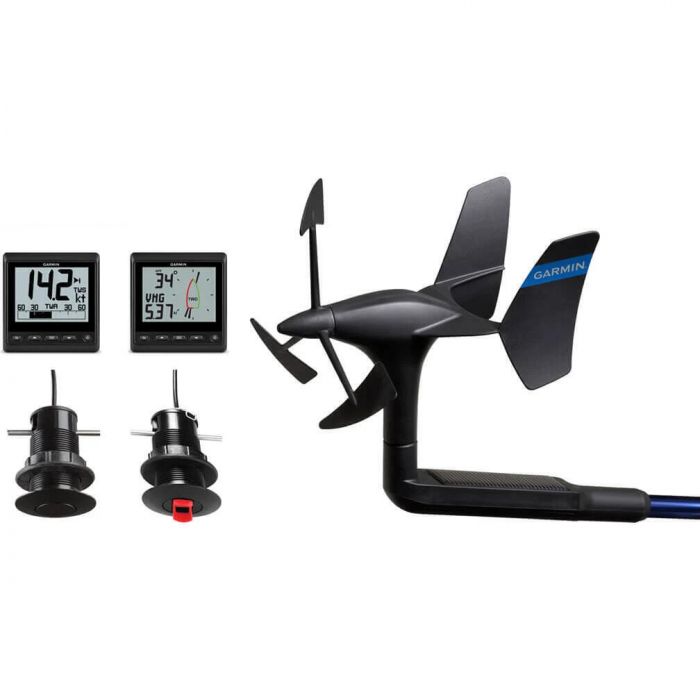

Update your sailboat's electronics with the GNX Wireless Sail Pack 43 that includes everything you need with 43 mm transducer fittings for depth, temperature and water speed.
GNX Wind Instrument:
- GNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine param for wind, speed and navigation. Using ANT technology, GNX Wind connects with the gWind Wired transducer and to a compatible quatix GPS marine smartwatch or a Garmin Nautix in-view display to stream wind data directly
gWind Wireless 2 Transducer:
- gWind Wireless 2 offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. Accurate wind signals are sent wirelessly via an ANT connection directly to a GNX Wind instrument or to a compatible Garmin GPSMAP® chartplotter. The transducer features renowned Nexus twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions
GNX 20 Marine Instrument:
- The easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat param through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles, including single, dual and triple function plus gauge and graph modes to display wind, depth and speed data. Or you can customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night
GDT 43 and GST 43 Transducers with 43 mm Fittings:
- If you already have 43 mm fittings for your thru-hull transducers, there's no need to drill new holes. The bundle includes 43 mm thru-hull transducers, which can retrofit boats with existing Nexus or Silva TH43 transducers. GST 43 is a speed and temperature transducer, and GDT 43 is a depth transducer. Addition of an NMEA 2000 adapter allows each GDT 43 transducer to share its data over the NMEA 2000 network to a compatible Garmin chartplotter or instrument display
gWind Wireless 2 Transducer Specifications:
- Unit Dimension, WxH: 13.6" x 24" (345 mm x 610 mm)
- Weight: 350 g
- Waterproof: Yes (IPX6)
- Temp Range: From 5°F to 158°F (-15°C to 70°C)
- Storage Temperature: From -4°F to 176°F (-20°C to 80°C)
- Power Usage: Battery (rechargeable though the solar panel)
- Accuracy Angle: Better than ±1.5°
- Speed: Better than ±3%
- Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
- Wireless Connectivity: Yes
GNX 20 Specifications:
- Dimensions 110 x 115 x 30 mm (4.33" x 4.53" x 1.18")
- Display Size: 83 x 60 mm; 101.6 mm diagonal (3.3" x 2.4"; 4.0" diagonal)
- Display Type: Standard LCD, monochrome
- Weight: 230 g (8 oz)
- Waterproof: IPX7
- Mounting Options: Flat or Flush
- Glass Bonded Display
- Temperature Range: From 5°-158°F (-15°-70°C)
- NMEA 0183 Compatible
- Power Consumption 0.35 W (day); 0.4 W (night)
- Compass-Safe Distance 209 mm (8.25)
- Instrument Features
- Auto-On
- User Profiles
GNX Wind Specifications:
- Physical dimensions: 4.3" x 4.5" x 1.2" (110 x 115 x 30 mm)
- Display size, WxH: 3.3" x 2.4"; 4.0" diagonal (83 x 60 mm; 101.6 mm diagonal)
- Weight: 8 oz (230 g)
- Water rating: IPX7
- NMEA 2000 certified: Yes
- Power consumption: 0.35 W (day); 0.4 W (night)
- Voltage range: 9-16 V (from NMEA 2000)
- Mounting options: Flush or Flat
- Temperature range: From 5 to 158 degrees F (from -15 to 70 degrees C)
- Compass-safe distance: 8.25" (209 mm)
