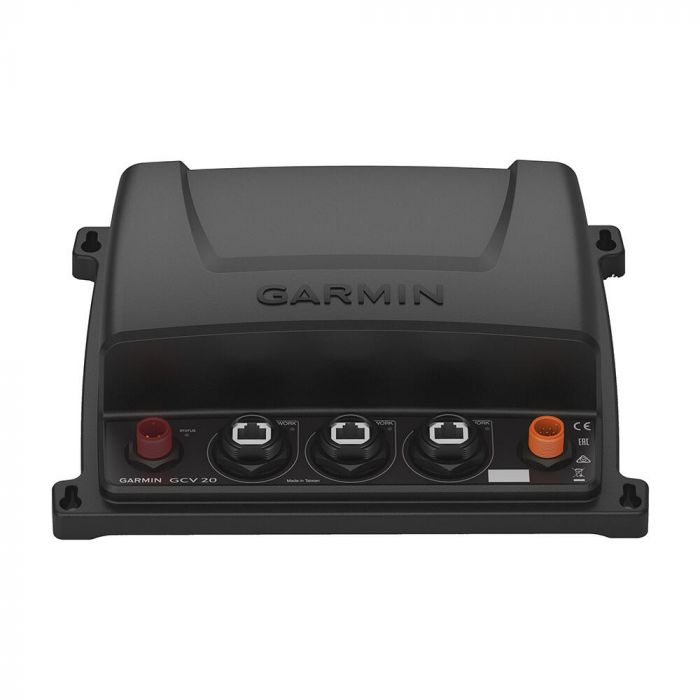

Garmin GCV 20 Ultra HD Scanning Sonar Black Box

The easy-to-install, networkable GCV 20 sonar black box allows you to redefine clarity and detail. Add a GT34UHD transducer to see stunningly clear Ultra High-Definition ClearVu and Ultra High-Definition SideVu scanning sonars - with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) - to your compatible chartplotter. And you can share sonar images seamlessly across multiple networked chartplotters as well as networking Panoptix™ all-seeing sonar.

Features:

• ClearVu scanning provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element
• SideVu scanning delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity
• With a GT34UHD transducer, now you can get scanning sonar images in ultra high-definition
• View everything below and off to the sides of your boat in amazingly sharp, crisp detail

Specifications:

• Dimensions: 9.9" × 7.6" × 2.6" (251 × 192 × 66 mm)
• Weight: 1.86 lbs (845 g)
• Waterproof: IPX7
• Temperature range: From 5° F to 158° F (from -15° C to 70° C)
• Power input: 10-35V
• Power usage: 10.5W maximum
• Fuse: 4.0A
• Compass-safe distance: 10.2" (26 cm)
• Frequency:
  • ClearVu: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
  • SideVu: 1.2 MHz (1,200 kHz), CHIRP range: 1,020-1,230 kHz
• Transmit power: 500W rms
• Maximum depth:
  • 200' ClearVu
  • 125' to each side SideVu, 250' total, at a maximum depth of 30'
• Marine network ports: 3

Included:

• GCV 20 Sonar Black Box
• GT34UHD-TM transducer (available only with bundle 010-02055-00)
  • Transom mount
  • Trolling motor mount
• Right-angle power cable
• Right-angle ethernet cable
• Mounting hardware
• Documentation
