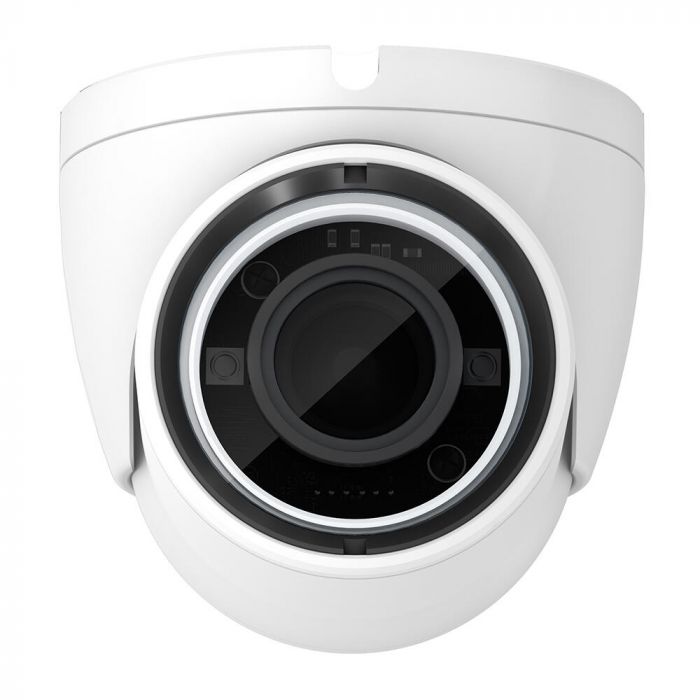

Garmin GC14 Marine Camera

See more of what's happening on or around your boat with Garmin's GC 14 marine camera. With GC 14 on your vessel, you'll be able to monitor areas inside and outside while you're on the water or while you're docked.

Features:

• Small and discreet analog camera delivers excellent quality images that can be viewed via onboard TVs, video monitors or compatible chartplotters that support video input
• View on one chartplotter or across multiple networked compatible chartplotters
• Convenient reverse-image setting to help you back out of tight locations such as a crowded marina
• Provides clear images in low light, making it perfect for monitoring your dark engine room
• Easy to install, its small size and rugged weatherproof case allow for flexible placement above or below deck

Specifications:

• Resolution: PAL: 976(H) x 582(V)
• Scanning system: PAL: 625 lines 2:1 interlaced
• Sync system: Internal
• Low light vision range: Up to 15 m
• Viewing angle (D x H x V(°)): 95° x 69° x 52°
• Video output: 1.0Vp-p composite 75 Ω composite
• S/N ratio: More than 52dB (AGC off)
• Operating temperature: From -10° C to +50° C
• Power consumption: 12V DC; 80mA (IR off); 170mA (IR on)
• Weight: 205 g
• Dimensions (DxH): 2.0" x 1.7" (5.1 x 4.4 cm)
• Cable length: 45"
• Compass safe distance: 10" (254 mm)
• Water rating: IPX7

Installation Instructions
