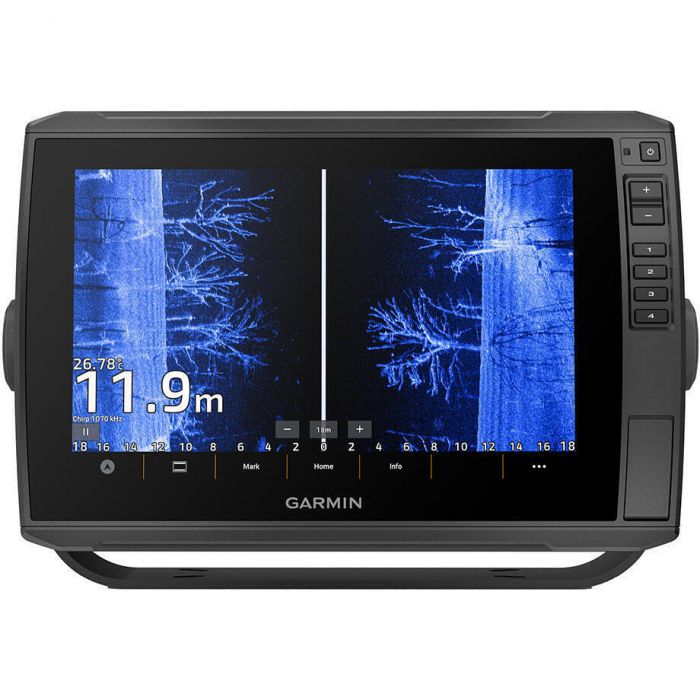

Garmin ECHOMAP Ultra 2 102sv Chartplotter

With a big, crisp, sunlight-readable touchscreen display, this versatile chartplotter puts a world of fishfinding capability at your fingertips. Available with built-in Worldwide Basemaps, and a GT56UHD-TM Transducer (model 010-02879-01 only) adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

Features:

• Supports the full lineup of LiveScope live-scanning sonar products
• Bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVu™ and SideVu™ scanning sonars for photo-like images of what's beneath the surface (model 010-02879-01)
• High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure
• If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information - such as sonar, waypoints and routes - with them

Specifications:

• Dimensions: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
• Weight: 4.0 lbs (1.8 kg)
• Waterproof: IPX7
• Display type: WXGA, IPS
• Display size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
• Display resolution: 1280 x 800 pixels
• Mounting options: Bail or flush
• Input: Touchscreen with Keyed Assist
• Accepts data cards: 2 microSD cards
• Waypoints: 5,000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100
• Power input: 9 to 18V DC
• Typical current draw @ 12V DC: 2.3A
• Maximum current draw @ 12V DC: 5.0A
• Maximum power usage @ 10V DC: 34W
• Power output: 600W
• Traditional sonar (dual frequency/beam): Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
• ClearVu: Built-in 260/455/800/1000/1200 kHz
• SideVu: Built-in 260/455/800/1000/1200 kHz
• NMEA 2000 ports: 1
• Garmin marine network ports: 2 (large connector)
• Transducer ports: 12-pin scanning sonar

Included:

• ECHOMAP Ultra 2 102sv
• GT56UHD-TM transducer (model 010-02879-01 only)
• Power/data cable
• Bail mount with quick release cradle
• Protective sun cover
• Hardware
• 8-pin transducer to 12-pin sounder adapter cable (model 010-02879-00 only)
• Documentation

Installation Instructions (2.10 MB)
