Garmin ECHOMAP UHD2 93sv LiveScope Plus Ice Fishing Bundle

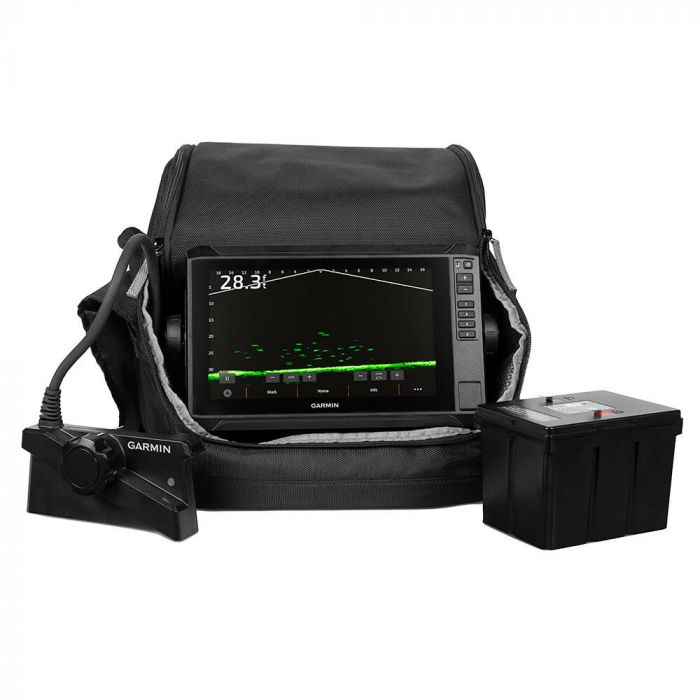

Get improved resolution, reduced noise, clearer images and better target separation with the LiveScope™ Plus Ice Fishing Bundle. It includes a 9" ECHOMAP™ UHD2 combo, the complete LiveScope Plus System with LVS34-IF transducer, swivel pole mount and a lightweight lithium battery.

Features:

• Real-time sonar pairs with a large 9" ECHOMAP UHD2 combo touchscreen display with keyed assist, allowing you to see up to 200' in any direction
• LiveScope System offers two live-scanning sonar modes - Down and Forward
• Preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes
• Create custom pages that combine sonar, flasher and map on your display
• Fish even longer with a lightweight 16.5Ah lithium battery that won't weigh you down on the ice

Specifications:

• Dimensions: 13.8" x 12.2" x 13.0" (35 x 31 x 33 cm)
• Weight: 22.5 lbs (10.2 kg)
• Waterproof: IPX7
• Display type: WSVGA, TN
• Display size: 7.8" x 4.5", 9.0" (19.8 x 11.5, 22.9 cm)
• Display resolution: 1024 x 600 pixels
• Input: Touchscreen with Keyed Assist
• Accepts data cards: 1 microSD™ card; 32 GB maximum size
• Waypoints: 5000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100
• Battery type, size: Lithium-ion, 16.5Ah
• Bag size: Extra large (XL)
• Included transducer: LiveScope™ System with LVS34-IF
• Transducer holding feature: Pole mount
• Power input: 9 to 18V DC
• Sonar power output: 500W
• Traditional sonar (dual frequency/beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
• ClearVu: Built-in 260/455/800/1000/1200 kHz
• SideVu: Built-in 260/455/800/1000/1200 kHz

Included:

• ECHOMAP™ UHD2 chartplotter
• LVS34-IF transducer
• GLS™ 10 sonar module
• Ice fishing pole mount
• Tilt mount
• Power cable
• Portable fishing bag with handle
• Lithium-ion battery
• Battery charger
• Documentation
