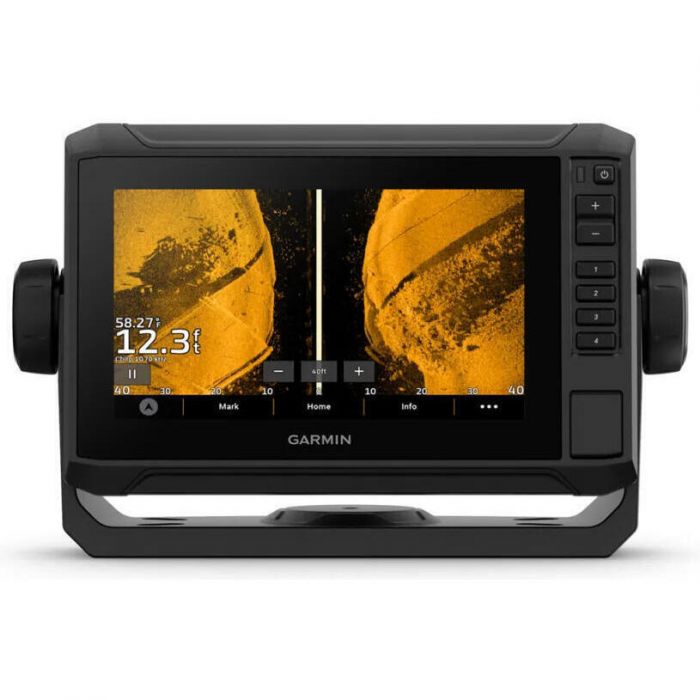

Garmin ECHOMAP UHD2 74sv Chartplotter

When it comes to catching more fish, they say, "Talk to a local." With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you'll know the water even better than they do.

Features:

• With crisp, clear traditional sonar and brilliant ClearVu and SideVu scanning sonars, the fish will have nowhere to hide. Your ECHOMAP UHD2 also supports LiveScope live-scanning sonar
• High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure
• You've never seen Garmin cartography like this before. Select chartplotters come with built-in Garmin Navionics+ Coastal
• If you have another compatible ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information such as sonar, waypoints and routes
• Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app on your compatible smartphone for access to the OneChart feature, smart notifications, software updates, Garmin Quickdraw Community data and more
• Chartplotters with built-in Garmin Navionics+ charts include downloadable Auto Guidance+ technology with the ActiveCaptain app
• Your ECHOMAP UHD2 wirelessly connects to your Force trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more
• Get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS

Chartplotter Specifications:

• Dimensions: 8.6" x 5.6" x 3.2" (21.8 x 14.2 x 8.1 cm)
• Input: Touchscreen with Keyed Assist
• Display Size: 6.1" x 3.4", 7.0" (15.5 x 8.7 cm, 17.8 cm)
• Display Resolution: 800 x 480 pixels
• Display Type: WVGA, TN
• Weight: 2.2 lbs (1.0 kg)
• Waterproof: IPX7
• Mounting Options: Bail or flush
• AIS
• DSC
• Supports Fusion-Link Compatible Radios
• Activecaptain Compatible
• Sailing Features
• Maps and Memory:
  • Built-in maps: Garmin Navionics+ Coastal
  • Accepts Data Cards: 1 microSD card; 32 GB maximum size
  • Waypoints: 5000
  • Track Points: 50000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100
• Sensors:
  • Has Built-In Receiver
  • Receiver: 10 Hz
  • NMEA 2000 Compatible
  • GPS
  • GLONASS
  • Galileo
  • Beidou
  • Supports WAAS
  • Supports Multi-Band, Multi-Constellation GPS
• Sonar:
  • Displays Sonar
  • Power Output: 500W
  • Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
  • ClearVu: built-in 260/455/800/1000/1200 kHz
  • SideVu: built-in 260/455/800/1000/1200 kHz
  • Panoptix Sonar
  • Livescope
• Connections:
  • NMEA 2000 Ports
  • Garmin Marine Network Ports: 1
  • 12-Pin Transducer Ports: 1
  • Bluetooth Pairing
  • Ant+ (Connectivity)
  • Garmin Wi-Fi Network (Local Connection)
• Electrical:
  • Power Input: 9 to 18V DC
  • Typical Current Draw At 12V DC: 1.52A
  • Maximum Current Draw At 12V DC: 3.2A
  • Maximum Power Usage At 10V DC: 18.3W

Optional GT54-UHD Transducer Specifications:

• Frequency: CHIRP High Wide (150-240 kHz); UHD ClearVu CHIRP 800 kHz (760-880 kHz); UHD SideVu 1,200kHz (1020-1230 kHz); CHIRP SideVu 455 kHz (425-485 kHz)
• Power: CHIRP Traditional 350 W; ClearV/SideVu 350W
• Beamwidth:
  • CHIRP: 24°-16°
  • ClearVu: 0.94°x60° @ 800 kHz
  • SideVu: 1.62°x50°
  • UHD SideVu: 0.441°x52° @ 1200 kHz
  • Maximum Depth: CHIRP: 800 ft.; ClearVu 200 ft.; SideVu 500'; UHD SideVu 125'
• Cable Length: 20 ft
• Depth/Speed/Temperature: Depth and Temperature
• Number Of Pins: 12
• Supported Deadrise/Transom Angles: 0°-70° degree transom
