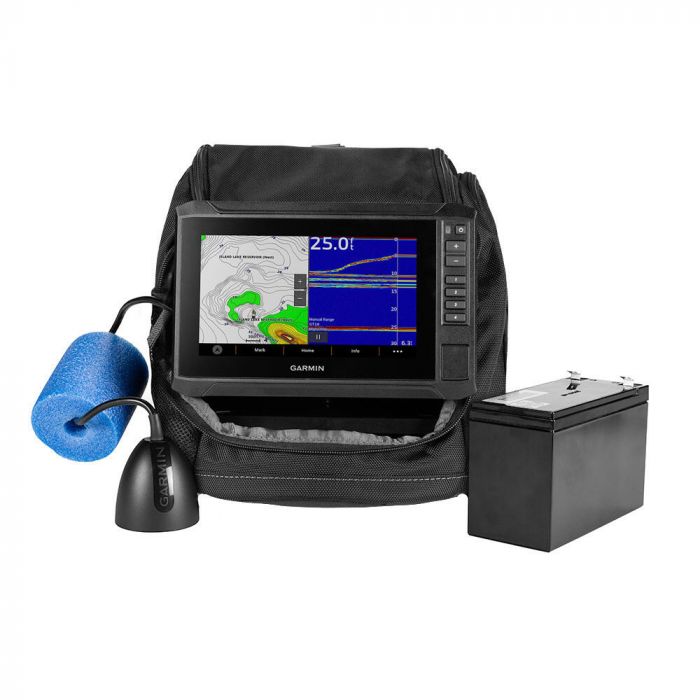

Garmin ECHOMAP UHD2 73sv Ice Fishing Bundle with Transducer - 010-02684-35

The best of the best just broke new ice. Designed for the passionate angler, the ECHOMAP UHD2 73sv Ice Fishing Bundle provides detailed maps and sonar, so you can transform your fishing experience.

Features:

• 7" ECHOMAP UHD2 73sv chartplotter with touchscreen and keyed assist is perfect on the ice or on your boat
• Includes the GT10HN-IF, a high narrow CHIRP ice fishing transducer with selectable beamwidth (7 to 16 deg.), and it provides crisp, clear fish arches with excellent target separation
• Preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes
• Create custom pages that combine sonar, flasher and map on your display
• Rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season
• Supports ClearVu™ and SideVu™ scanning sonars for nearly photographic images of what's below the boat (transducer sold separately)

Specifications:

• Dimensions: 10.5" x 9.5" x 10.5" (26.7 x 22.9 x 26.7 cm)
• Weight: 11.0 lbs (5.0 kg)
• Waterproof: IPX7
• Display type: WVGA, TN
• Display size: 6.1" x 3.4", 7.0" (15.5 x 8.7, 17.8 cm)
• Display resolution: 800 x 480 pixels
• Input: Touchscreen with Keyed Assist
• Accepts data cards: 1 microSD™ card; 32 GB maximum size
• Waypoints: 5000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100
• Battery type, size: SLA, 7Ah
• Bag size: Small
• Included transducer: GT10HN-IF
• Transducer holding feature: Foam float
• Power input: 9 to 18V DC
• Sonar power output: 500W
• Traditional sonar (dual frequency/beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
• ClearVu: Built-in 260/455/800/1000/1200 kHz
• SideVu: Built-in 260/455/800/1000/1200 kHz

Included:

• ECHOMAP™ UHD2 73sv chartplotter
• GT10HN-IF ice fishing transducer
• Tilt/swivel mount
• Portable bag
• Base/handle
• Foam float
• Power cable
• Rechargeable battery
• Battery charger
• Documentation
