Garmin ECHOMAP UHD2 72cv Chartplotter

00 Review
$599.99 - $649.99
          Want an email once available?
          Buy with

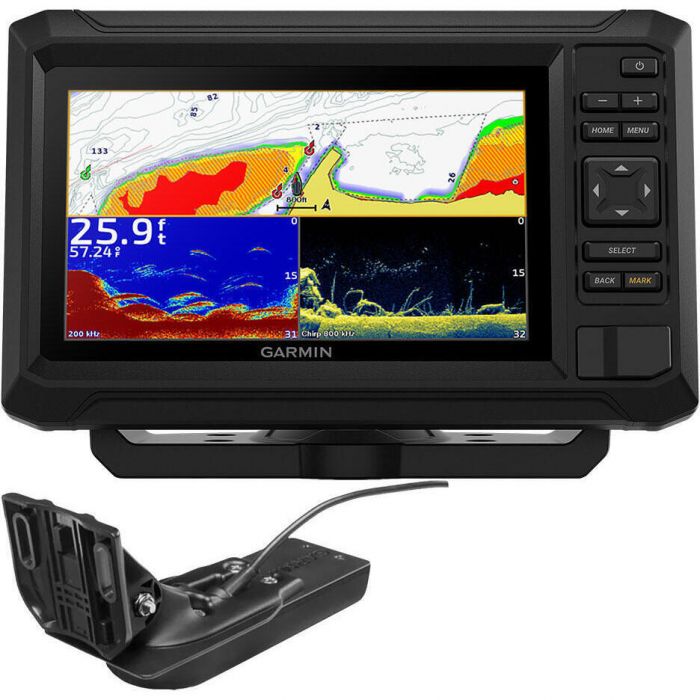

          Image of : Garmin ECHOMAP UHD2 72cv Chartplotter Garmin ECHOMAP UHD2 72cv Chartplotter Item # 956152

          Description

          They say locals know best. But anyone who says that hasn't fished with the ECHOMAP UHD2 chartplotter with clear, crisp sonar and mapping.

          Features:

          • With crisp, clear traditional sonar and brilliant ClearVu sonar, the fish will have nowhere to hide
          • High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure
          • Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVu scanning sonars
          • Know the waters you're in as if you grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping
          • If you have another compatible ECHOMAP UHD2 models can wirelessly share information — such as sonar, waypoints and routes — with them
          • Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, software updates, Garmin Quickdraw Community data and more

          Optional GT20-TM Transducer Features:

          • Perfect for the shallow water fisherman who want traditional and CHIRP ClearVu scanning sonar, this transom or trolling motor mounted transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below your boat
          • The 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (ClearVu); an operating frequency of 77/200 kHz (traditional) and 455 kHz (ClearVu); and a 0 to 70 transom angle
          • Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat

          Chartplotter Specifications:

          • Dimensions: 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm)
          • Input: Keyed
          • Display Size: 6.1" x 3.4" (15.5 x 8.7 cm)
          • Display Resolution: 800 x 480 pixels
          • Display Type: WVGA, TN
          • Weight: 1.5 lbs (0.7 kg)
          • Waterproof: IPX7
          • Mounting Options: Bail or flush
          • Maps and Memory:
            • Accepts Data Cards: 1 microSD card; 32 GB maximum size
            • Waypoints: 5000
            • Track Points: 50000
            • Tracks: 50 saved tracks
            • Navigation Routes: 100
          • Sensors:
            • Has Built-In Receiver
            • Receiver: 5 Hz
            • GPS
            • Supports WAAS
            • Activecaptain Compatible
          • Sonar:
            • Displays Sonar
            • Power Output: 500W
            • Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
            • ClearVu: built-in 260/455/800/1000/1200 kHz
          • Connections:
            • 4-Pin Transducer Ports: 1
            • Garmin Wi-Fi Network (Local Connection)
          • Electrical:
            • Power Input: 9 to 18V DC
            • Typical Current Draw At 12V DC: 1.0A
            • Maximum Current Draw At 12V DC: 1.5A
            • Maximum Power Usage At 10V DC: 18W

          Optional GT20-TM Transducer Specifications:

          • Frequency: Traditional 77/200; ClearVu CHIRP 455 kHz (435-475 kHz) and 800kHz (800-840 kHz)
          • Power: Traditional/ClearVu 500W
          • Beamwidth: Traditional: 45°/15°
          • ClearVu: 2.5°x53°@ 455 kHz and 1.6°x29° @ 800 kHz
          • MaximumDepth: Traditional: 1,900 ft.; ClearVu: 750'
          • CableLength: 20'
          • Measures Depth and Temperature
          • Number of Pins: 4-pin
          • SupportedDeadrise/TransomAngles: 0°-70° degree transom

          Included:

          • ECHOMAP UHD2
          • GT20-TM transducer (optional, not included with all chartplotters)
          • Power/data cable
          • Tilt mount
          • Flush mount
          • Hardware
          • Documentation
