Garmin ECHOMAP UHD2 64sv Chartplotter

00 Review
$799.99 - $899.99
          Want an email once available?
          Buy with
          Image of : Garmin ECHOMAP UHD2 64sv Chartplotter

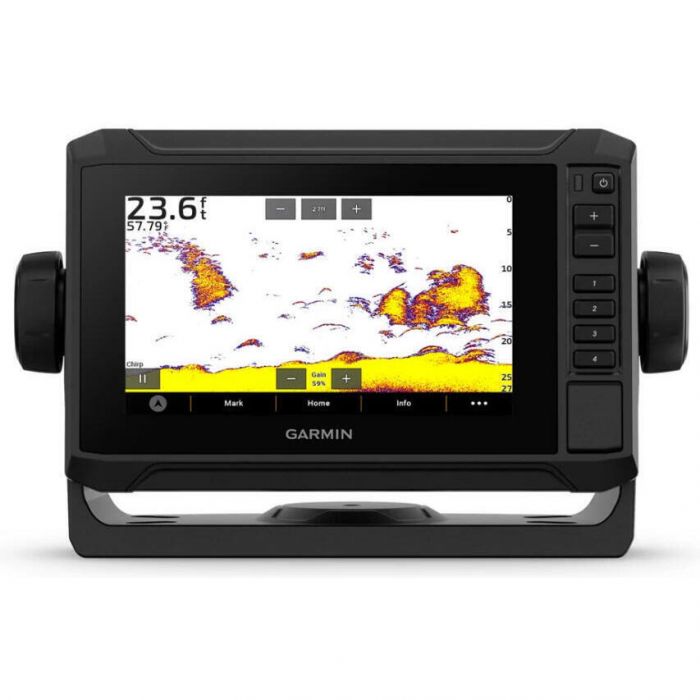

          Garmin ECHOMAP UHD2 64sv Chartplotter

          Item # 956149


          When it comes to catching more fish, they say, "Talk to a local." With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you'll know the water even better than they do.


          • With crisp, clear traditional sonar and brilliant ClearVu and SideVu scanning sonars, the fish will have nowhere to hide. Your ECHOMAP UHD2 also supports LiveScope live-scanning sonar
          • High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure
          • You've never seen Garmin cartography like this before. Select chartplotters come with built-in Garmin Navionics+ cartography which includes a 1-year subscription for daily updates, depth range shading and more
          • If you have another compatible ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar, waypoints and routes — with them
          • Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app on your compatible smartphone for access to the OneChart feature, smart notifications, software updates, Garmin Quickdraw Community data and more
          • Chartplotters with built-in Garmin Navionics+ charts include downloadable Auto Guidance+ technology with the ActiveCaptain app
          • Your ECHOMAP UHD2 wirelessly connects to your Force trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more
          • Get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS


          • Dimensions: 8.1" x 5.2" x 2.6" (20.6 x 13.1 x 6.7 cm)
          • Touchscreen
          • Input: Touchscreen with Keyed Assist
          • Display Size: 5.4" x 3.1", 6.2" (13.8 x 7.8, 15.7 cm)
          • Display Resolution: 800 x 480 pixels
          • Display Type: WVGA, TN
          • Weight: 1.8 lbs (0.8 kg)
          • Waterproof: IPX7
          • Mounting Options: bail or flush
          • Maps and Memory:
            • Accepts Data Cards: 1 microSD card; 32 GB maximum size
            • Waypoints: 5000
            • Track Points: 50000
            • Tracks: 50 saved tracks
            • Navigation Routes: 100
          • Sensors:
            • Has Built-In Receiver
            • Receiver: 10 Hz
            • NMEA 2000 Compatible
            • GPS
            • GLONASS
            • Galileo
            • Beidou
            • Supports WAAS
            • Supports Multi-Band, Multi-Constellation GPS
          • Chartplotter Support:
            • AIS
            • DSC
            • Supports Fusion-Link Compatible Radios
            • Activecaptain Compatible
            • Sailing Features
          • Sonar:
            • Displays Sonar
            • Power Output: 500W
            • Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
            • ClearVu: built-in 260/455/800/1000/1200 kHz
            • SideVu: built-in 260/455/800/1000/1200 kHz
            • Panoptix Sonar
            • Livescope
          • Connections:
            • NMEA 2000 Ports
            • Garmin Marine Network Ports: 1
            • 12-Pin Transducer Ports: 1
            • Bluetooth Pairing
            • Ant+ (Connectivity)
            • Garmin Wi-Fi Network (Local Connection)
          • Electrical:
            • Power Input: 9 to 18V DC
            • Typical Current Draw At 12V DC: 1.53A
            • Maximum Current Draw At 12V DC: 3.2A
            • Maximum Power Usage At 10V DC: 18.4W
